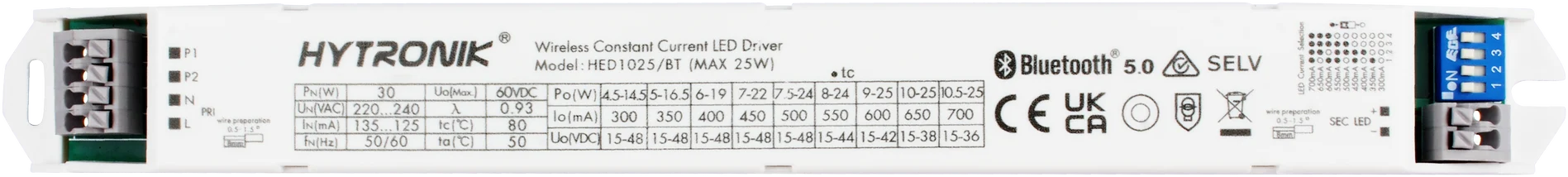

HED1025/BT
Bluetooth LED Driver 25W | Dimmable | Built-in version
Vorteile
- Compact: Linear LED Driver with Bluetooth interface
- Efficient: Loop-in & Loop-out terminals design
- Easy configuration: via dip-switch and Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Linear Luminaire Built-in integration
- Offices
- Classrooms
Produktinformationen "HED1025/BT"
Bluetooth Mesh Control With app, 220-240VAC input, Constant current, Multiple current selection via DIP-Switches, Max power: 25W, 2 Switch-Dim (PUSH) terminals.
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
|---|---|
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| DALI Gerätetyp: | DT6 |
| Dimmschnittstelle: | Relay On/Off |
| Human Centric Lightning (HCL): | Nein |
| Installationstyp: | Built-in |
| Lagertemperatur: | 50 °C |
| Lagertemperatur min.: | -20 °C |
| Operating Mode: | Constant Current |
| Product height: | 21.0000 mm |
| Produktlänge: | 245.0000 mm |
| Produkttiefe: | 25.5000 mm |
| Schutzart: | IP20 |
| Treiber Typ: | Dimming Only |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Wirkungsgrad: | 85 % |
