HBEM01

Emergency Driver Max.25w | BLE & Switch-Dim | LiFePO4

Vorteile

Compact: Emergency driver with self-test optional remote
Flexible: Choose over many sensors options via plug & play
Cost-Saving: BLE eliminates the need for time-consuming hardwiring and onsite check

ANWENDUNGEN

Luminaire Built-in integration or standalone
Retrofit upgrades & New luminaire designs
Offices, Classrooms, Industry and Healthcare Spaces

Produktinformationen "HBEM01"

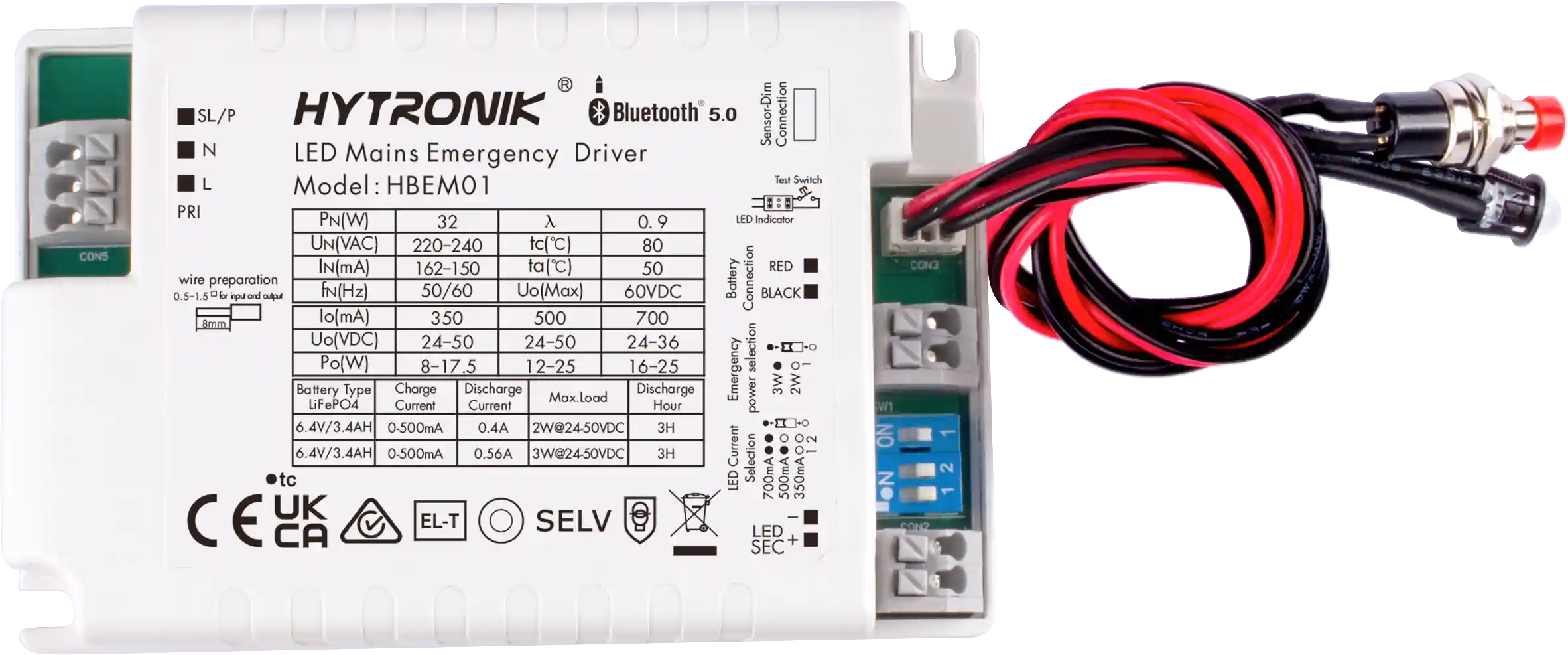

HBEM01 is a combined Bluetooth LED driver & emergency control gear with RJ12 connection for optional sensor heads SAM20, SAM21, SAM22, SAM22/FM, SAM23, HIR05, HIR05/FM, HIR05/AA, HIR07, HIR11 series, HIR12, HIR63 series. When the sensor head is not attached to, HBEM01 alone is a normal Bluetooth emergency driver with self-test function. When the sensor head is attached to, HBEM01 is a normal Blutooth emergency driver with motion, daylight sensor and self-test function. With gateway HBGW01 ready, user can generate emergency testing report through our app. HBEM01 can also conduct monthly or annually testing automatically and user can get email notification as soon as fault is detected. Meanwhile, simple device setup and commissioning can be done via Koolmesh app.

Ausgangsschnittstelle:	Relais On/Off
Ausgangsspannung:	24~50V
Befestigungsloch:	4.1000 mm
Betriebsspannung:	220 - 240 VAC 50/60 Hz
Bluetooth Frequenz:	2.4 GHz
Bluetooth Reichweite:	10-30m
Bluetooth Sendeleistung:	4 dBm
Bluetooth System:	Koolmesh
Bluetooth Technologie:	Nordic nRF52832
Category - Emergency LED Drivers & Inverters:	LED Driver & Inverter Combo (Bluetooth)
Feuchtigkeit max:	90 %
Feuchtigkeit min:	10 %
Human Centric Lightning (HCL):	Ja
Lagertemperatur:	35 °C
Lagertemperatur min.:	-10 °C
Product height:	22.2000 mm
Produktlänge:	108.0000 mm
Produkttiefe:	69.0000 mm
Schutzart:	IP20
Taster Eingänge:	1
Tri-level (Korridorfunktion):	Ja
Umgebungstemperatur:	50 °C
Umgebungstemperatur min.:	0 °C
Wirkungsgrad:	85 %
Zhaga:	No
