HBEM05
Emergency Inverter Max.12W | DALI Dimmable | Attachable sensor heads
Vorteile
- Compact: Emergency inverter with Bluetooth
- Flexible: Choose over many sensors options via plug & play
- Cost-Saving: BLE eliminates the need for time-consuming hardwiring
ANWENDUNGEN
- Luminaire Built-in integration or standalone
- Retrofit upgrades & New luminaire designs
- Offices, Classrooms, Industry and Healthcare Spaces
Produktinformationen "HBEM05"

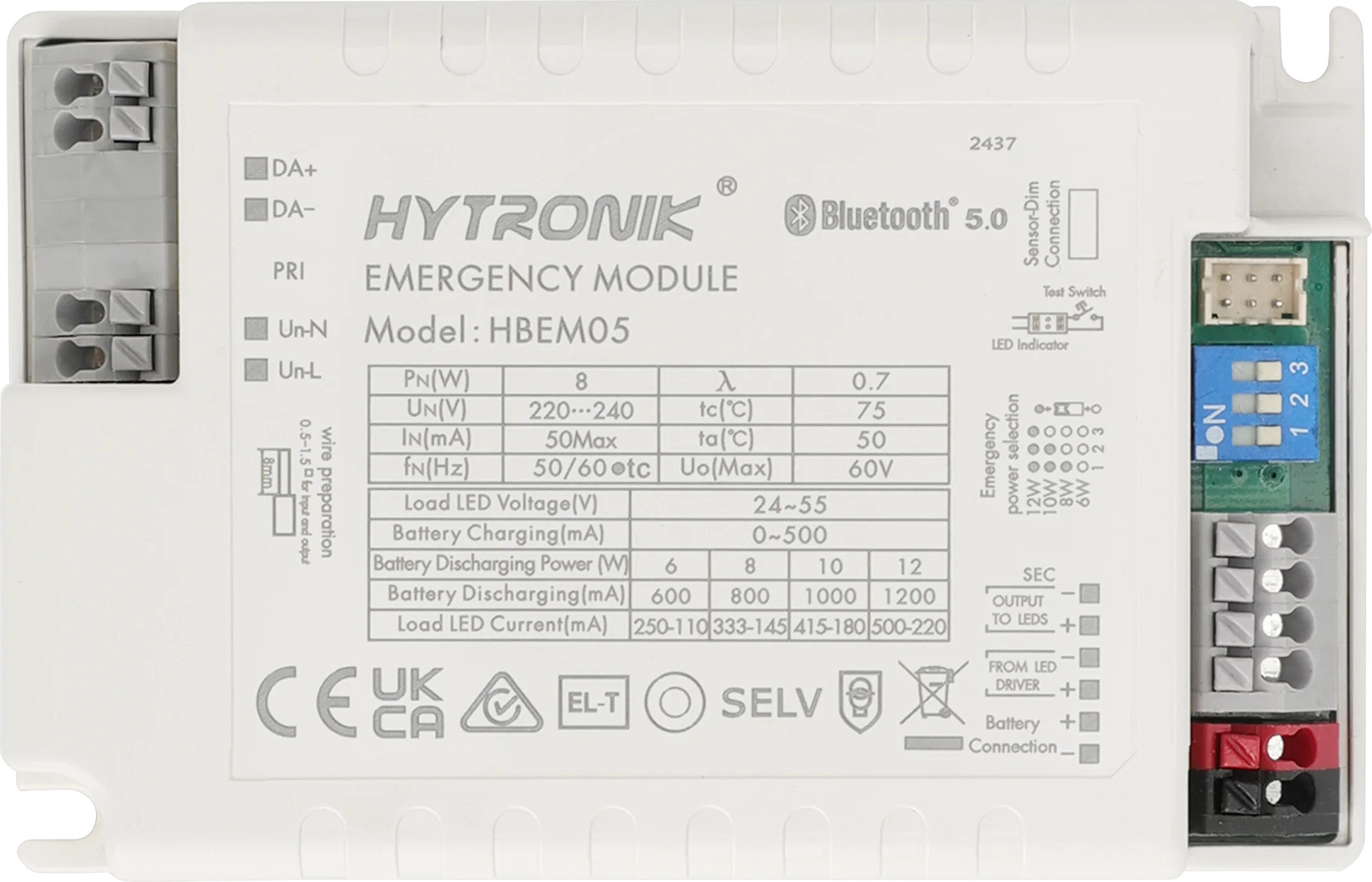

This emergency inverter for DALI dimmable drivers measures 140.6mm x 79.2mm x 23mm. It offers a maximum emergency output power of 6W, 8W, 10W, or 12W and supports up to 12W loading. Features include a Switch-Dim (PUSH) terminal and optional terminal caps for standalone installation.
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
|---|---|
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| Category - Emergency LED Drivers & Inverters: | Emergency Inverter (Bluetooth) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 20 % |
| Lagertemperatur: | 45 °C |
| Lagertemperatur min.: | -10 °C |
| Product height: | 23.0000 mm |
| Produktlänge: | 140.0000 mm |
| Produkttiefe: | 79.2000 mm |
| Schutzart: | IP20 |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | 0 °C |
