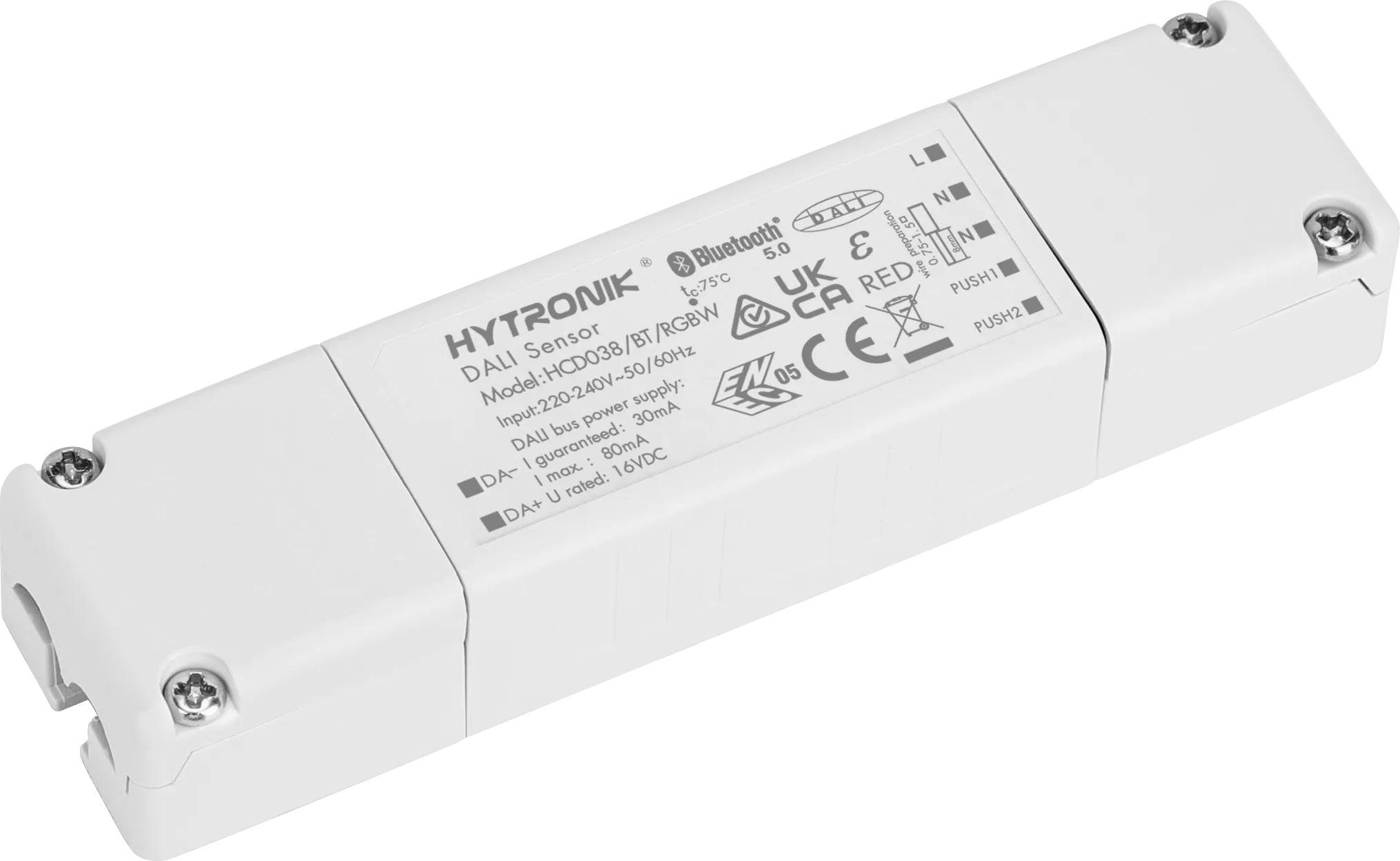

HCD038/BT/RGBW

Bluetooth DALI Control unit | Integrated 80 mA DALI Power | Attachable sensor heads

FEATURES

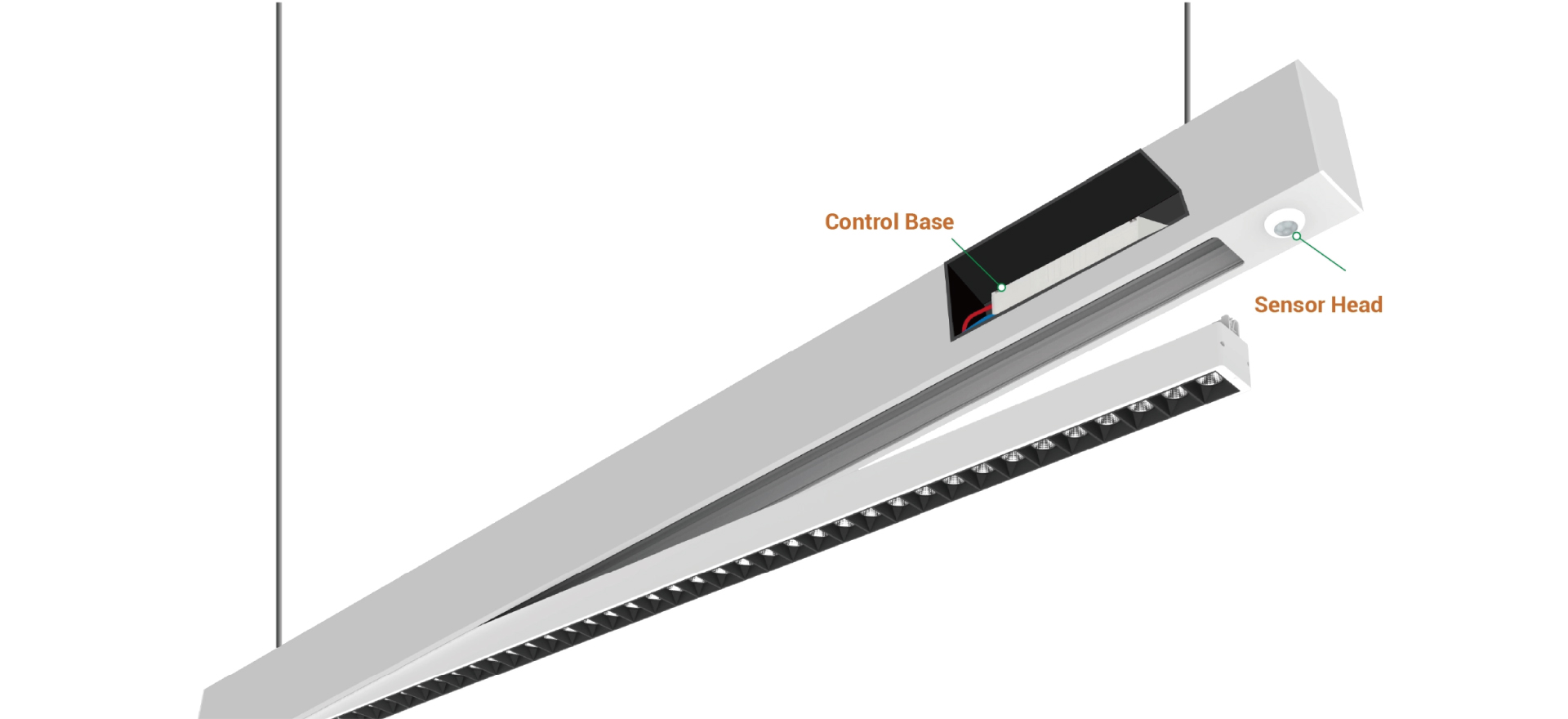

Modular: Enabling effortless integration with plug-and-play sensor heads
Intelligent: Delivering precise dimming, colour tuning, and responsive sensing
Wireless: Allowing fast parameter setup and commissioning via app

ANWENDUNGEN

Master luminaire with sensor
Outdoor
Offices

Produktinformationen "HCD038/BT/RGBW"

HCD038/BT/RGBW is a Bluetooth-enabled DALI dimming host that brings smart sensing and flexible lighting control to luminaires. It works with plug-and-play PIR or daylight sensor heads to provide on/off control, detection sensitivity, hold time, LUX threshold and sensor-type selection, and supports DALI RGBW drivers for precise dimming and colour tuning. All parameters and commissioning are performed easily and quickly via the Koolmesh app. With an integrated 80 mA DALI power supply, it delivers stable power for DALI control.

Anwendungsstyp:	DALI-zu-Bluetooth-Konverter/Übersetzermodul
Betriebsspannung:	220-240 VAC 50/60 Hz
Bluetooth-Plattform:	Nordic nRF52840
Bluetooth Frequenz:	2.4 GHz - 2.483 GHz
Bluetooth Reichweite:	10-30m
Bluetooth Sendeleistung:	4 dBm
Bluetooth System:	Koolmesh
Dimm-Steuersignal:	DALI/DALI-2, Switch-Dim
Erfassungswinkel:	360°
Human Centric Lightning (HCL):	Ja
IP-Schutzart:	IP20
Inbetriebnahme-Methoden:	App & Web (Bluetooth)
Korridorfunktion:	Ja
Lagertemperatur:	70 °C
Max. Luftfeuchtigkeit:	90 %
Min. Lagertemperatur:	-40 °C
Min. Luftfeuchtigkeit:	10 %
Produktbreite:	30.0000 mm
Produktgewicht:	46.0000 g
Produkthöhe:	21.0000 mm
Produktlänge:	120.0000 mm
Taster Eingänge:	2
Umgebungstemperatur max.:	55 °C
Umgebungstemperatur min.:	-20 °C
Zhaga:	Nein
