HBEM04
Emergency Inverter Max.5W | DALI Dimmable | Attachable sensor heads
Vorteile
- Compact: Emergency inverter with Bluetooth
- Flexible: Choose over many sensors options via plug & play
- Cost-Saving: BLE eliminates the need for time-consuming hardwiring and onsite check
ANWENDUNGEN
- Luminaire Built-in integration or standalone
- Retrofit upgrades & New luminaire designs
- Offices, Classrooms, Industry and Healthcare Spaces
Produktinformationen "HBEM04"

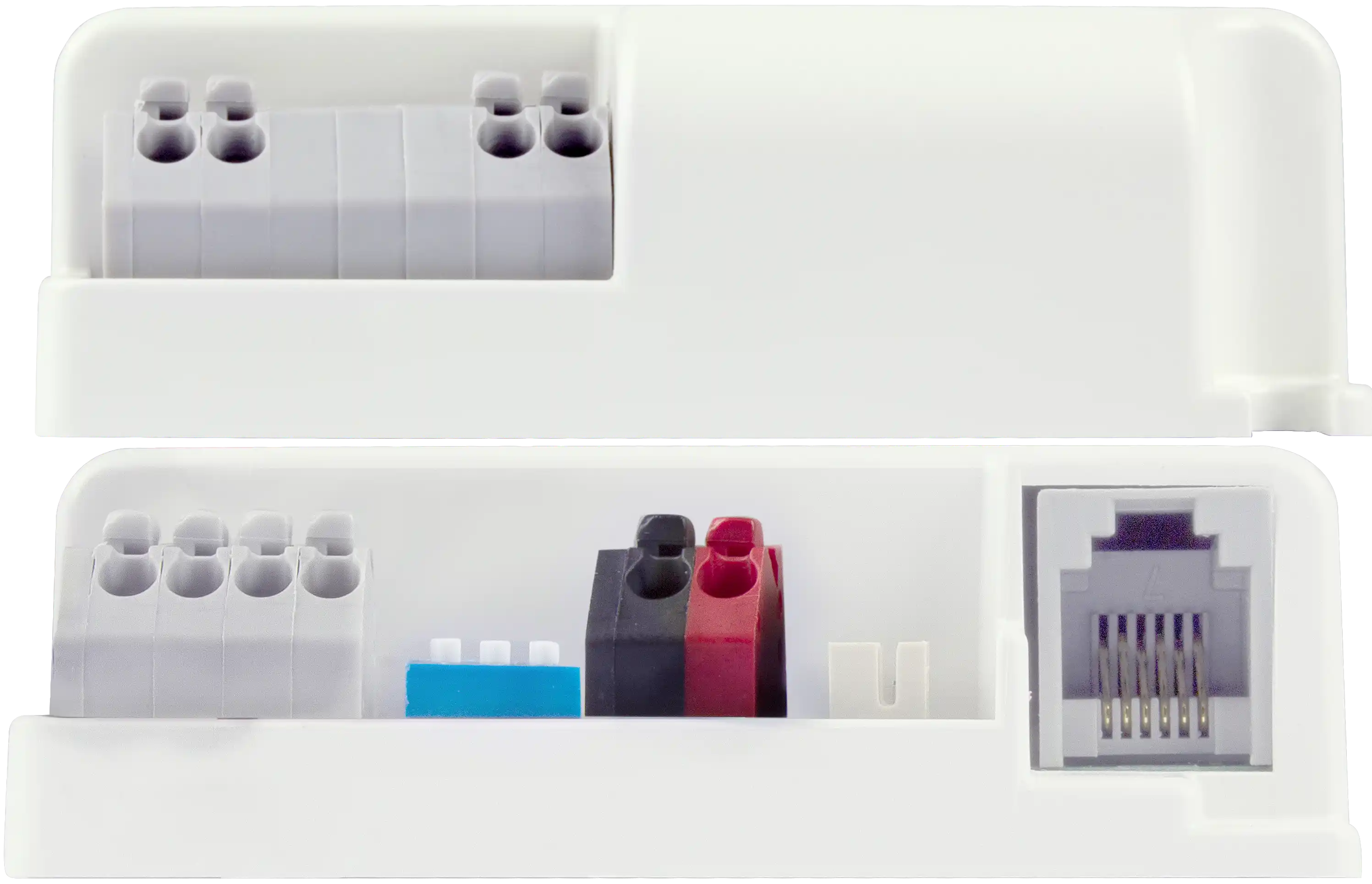

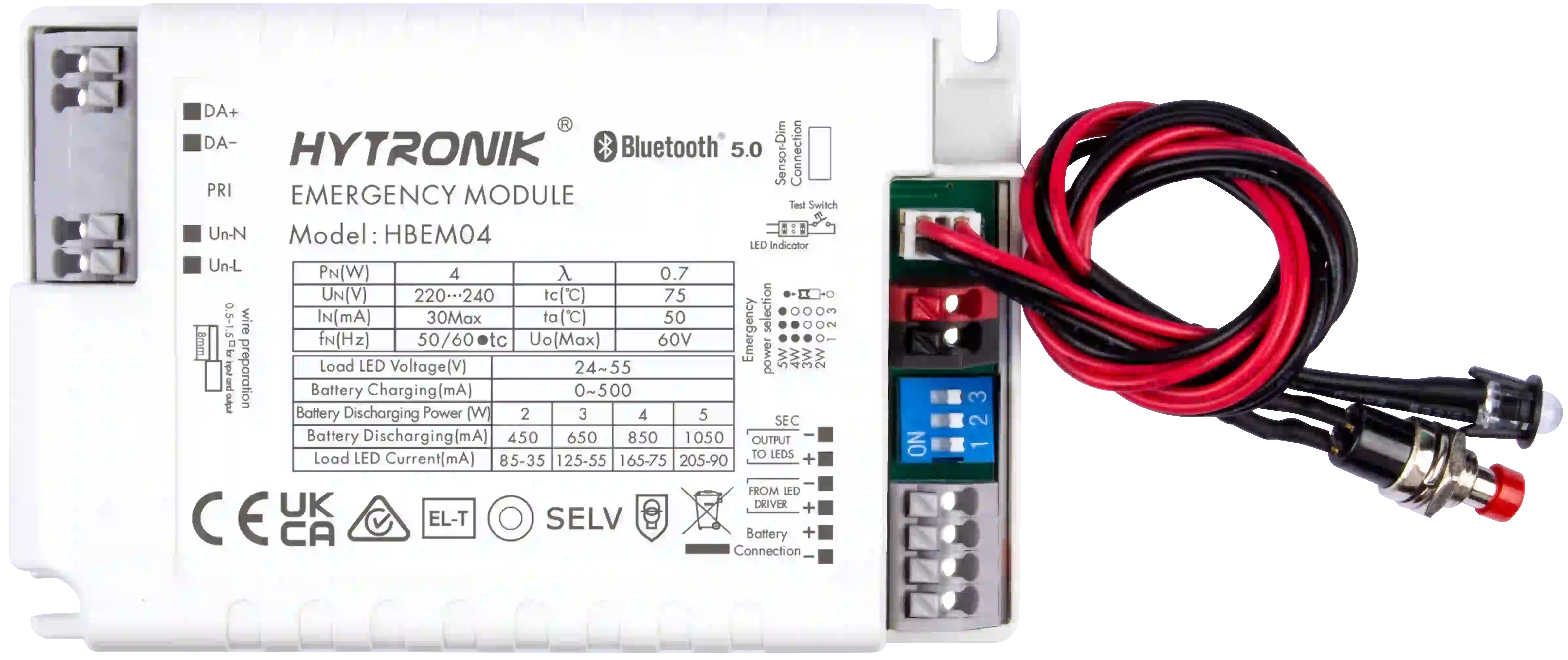

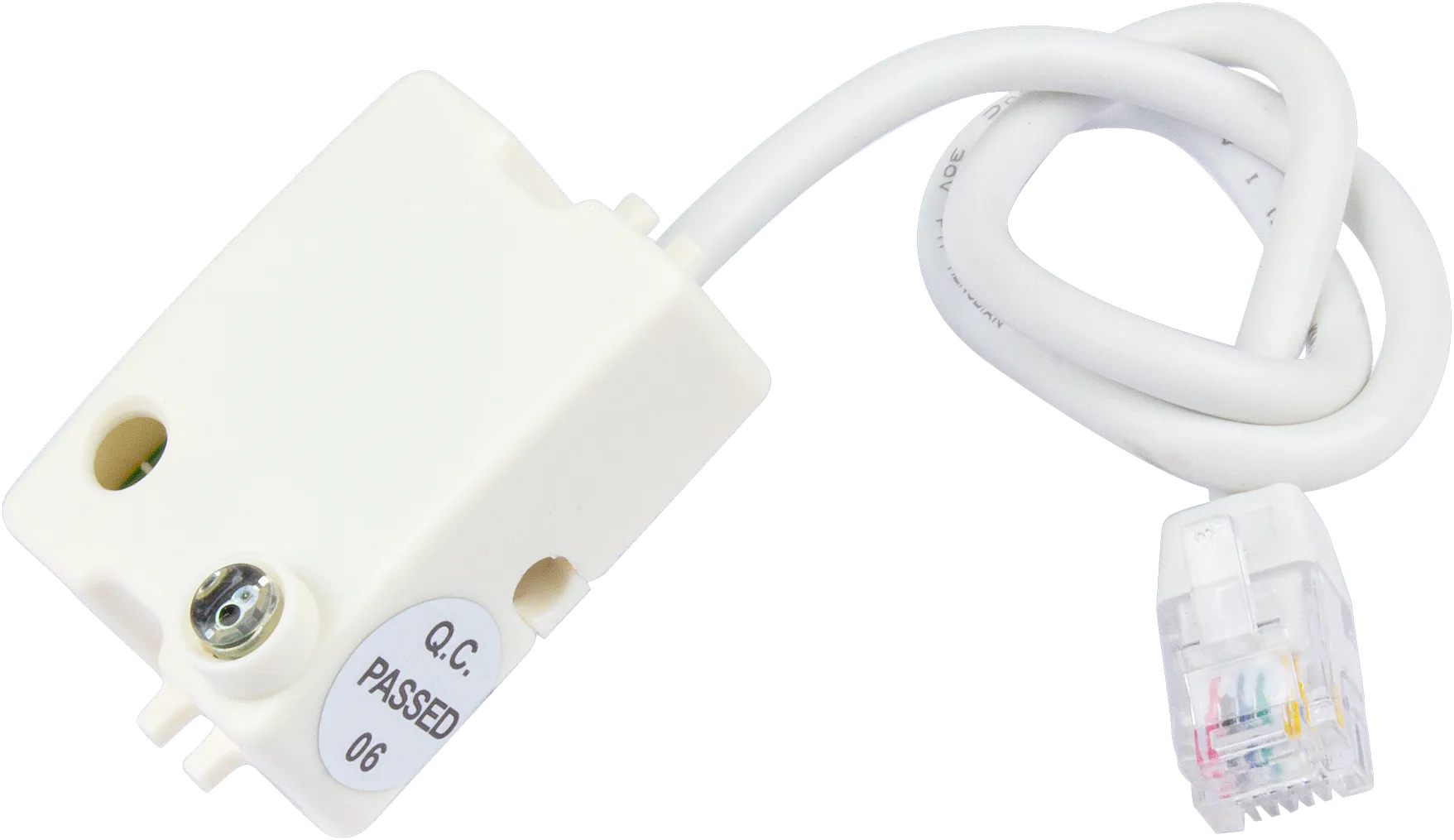

HBEM04 is a Bluetooth Emergency module designed for DALI dimmable drivers with a maximum output power of 6W. It features an RJ12 connection for Hytronik optional sensor heads including SAM20, SAM21, SAM22, SAM23, HIR05, HIR05/FM, HIR07, HIR11 series, HIR12, and HIR63 series.
Ausgangsschnittstelle: | DALI & DALI-2 |
---|---|
Befestigungsloch: | 4.1000 mm |
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
Bluetooth Technologie: | Nordic nRF52832 |
Category - Emergency LED Drivers & Inverters: | Emergency Inverter (Bluetooth) |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 20 % |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Product height: | 22.2000 mm |
Produktlänge: | 108.0000 mm |
Produkttiefe: | 69.0000 mm |
Schutzart: | IP20 |
Taster Eingänge: | 1 |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
