HBEM02
Emergency Inverter | Bluetooth remote control | LiFePO4
Vorteile
- Compact: Emergency inverter with Bluetooth with optional sensor
- All-in-one: Emergency functions, Occupancy, Daylight and Circadiam Rhythm
- Cost-Saving: BLE eliminates the need for time-consuming hardwiring and onsite check
ANWENDUNGEN
- Luminaire Built-in integration or standalone
- Retrofit upgrades & New luminaire designs
- Offices, Classrooms, Industry and Healthcare Spaces
Produktinformationen "HBEM02"

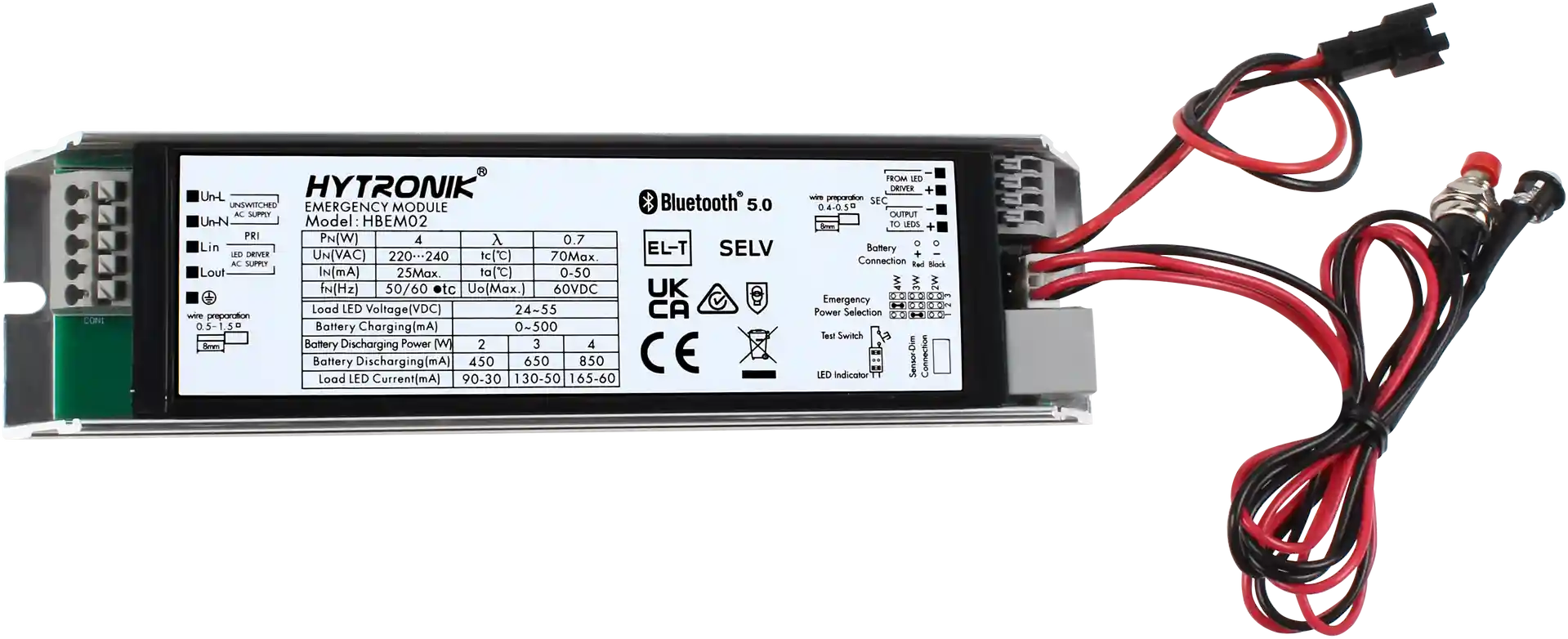

HBEM02 is an emergency inverter with RJ12 connection for optional sensor heads SAM20, SAM21, SAM22, SAM23, HIR05, HIR05/FM, HIR07, HIR11 series, HIR12, HIR63 series. HBEM02 alone is a normal emergency inverter with self-test function. With gateway HBGW01 ready, user can generate emergency testing report through our Koolmesh app.
| Ausgangsschnittstelle: | Keine Ausgang (Nur Bluetooth) |
|---|---|
| Ausgangsspannung: | 60V |
| Befestigungsloch: | 4.5000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| Category - Emergency LED Drivers & Inverters: | Emergency Inverter (Bluetooth) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Ja |
| Lagertemperatur: | 35 °C |
| Lagertemperatur min.: | -10 °C |
| Product height: | 22.0000 mm |
| Produktlänge: | 160.0000 mm |
| Produkttiefe: | 40.5000 mm |
| Schutzart: | IP20 |
| Taster Eingänge: | 1 |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | 0 °C |
| Wirkungsgrad: | 80 % |
