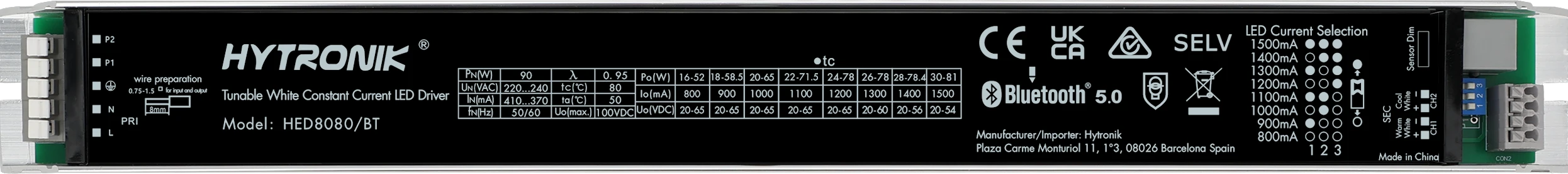

HED8080/BT
Bluetooth LED Driver 80W (CC) | Tunable white | Built-in
FEATURES
- Compact: Constant current LED Driver with Bluetooth interface
- Innovative: Featuring Switch-Dim and Bluetooth dimming interfaces
- Easy configuration: via Dip-switch & Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Retrofit projects with no extra wiring for control
- Offices
- Classrooms
Produktinformationen "HED8080/BT"
HED8080/BT is a Bluetooth dimming and tunable white LED driver with 60W max power output. It has a Switch-Dim interface via a Push switch. By connecting sensor heads to the driver, it enables motion detection and Bluetooth mesh control. Meanwhile, simple device setup and commissioning can be done via Koolmesh app.
| Ausgangsleistung: | ≥45W |
|---|---|
| Betriebsart: | Konstantstrom |
| Betriebsspannung: | 220-240 VAC 50/60 Hz |
| Bluetooth-Plattform: | Nordic nRF52832 |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth System: | Koolmesh |
| Einbauöffnung: | 4.5000 mm |
| IP-Schutzart: | IP20 |
| Installationstyp: | Einbau |
| Produktbreite: | 39.7000 mm |
| Produktgewicht: | 206.0000 g |
| Produkthöhe: | 21.3000 mm |
| Produktlänge: | 358.0000 mm |
| Produktstatus: | Engineering Sample / Evaluation |
| Treiber Typ: | Dimmung und Farbsteuerung |
| Umgebungstemperatur max.: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Wirkungsgrad: | 88.0000 % |
Datenblätter
Produktdatenblatt: hed8080-bt.pdf
