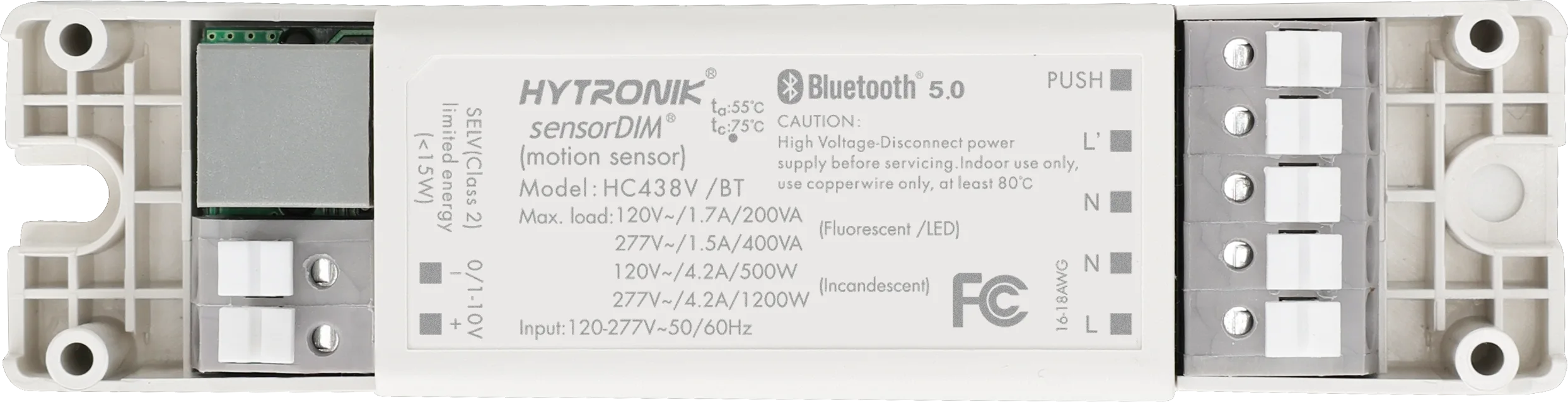

HC438V/BT
Control body | Bluetooth & 0/1-10V | Attachable sensor heads
Vorteile
- Adaptable: Small control unit with strain relief

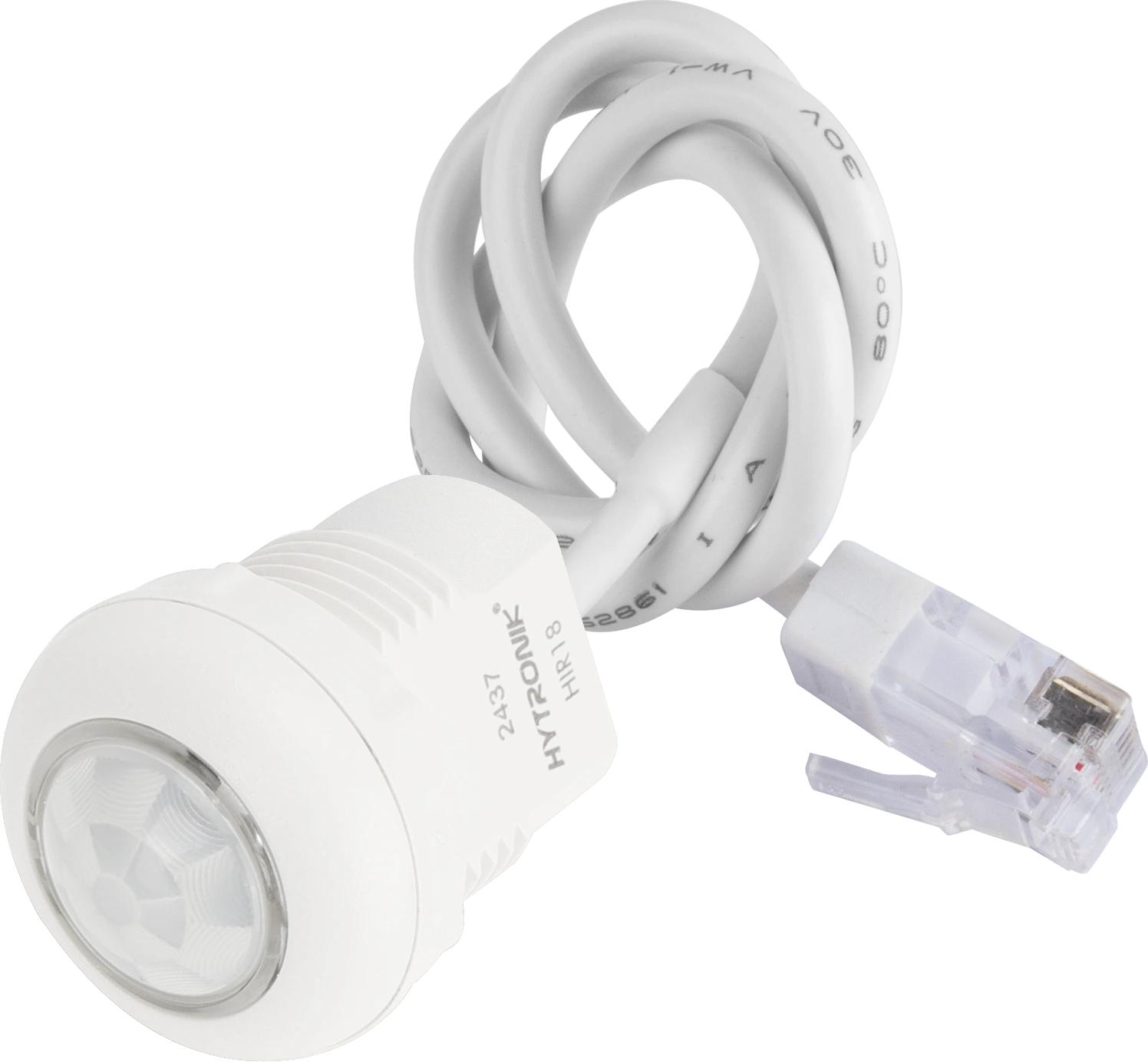

- Versatile: Suitable for various sensor head options via Plug’n’Play
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Master luminaire with sensor
- School/Classrooms
- Office/Commercial Lighting
Produktinformationen "HC438V/BT"
HCD438 is a DALI control base
with 30mA DALI power supply built in. They work with a wide range of
microwave and PIR sensor heads. They are ideal for metal luminaire designs
because the Bluetooth module is placed inside the sensor heads instead of
control base, so that the Bluetooth signal transmission is viable. They are
suitable for any typical indoor applications such as office, classroom, car
park, warehouse and other commercial/industrial areas. With Bluetooth
wireless mesh networking.

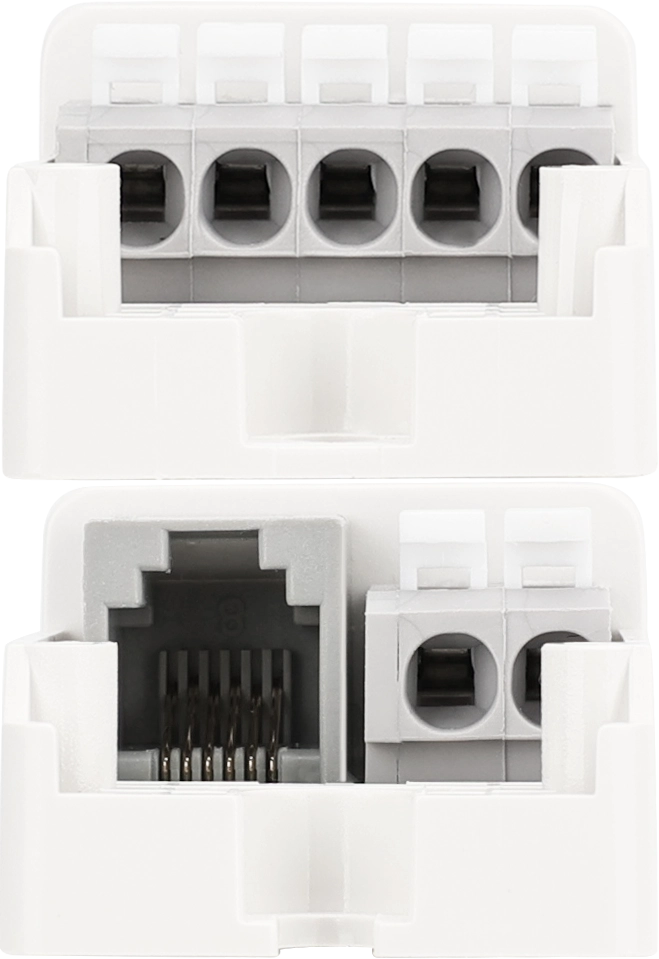

Anschlusstyp: | RJ12 |
---|---|
Ausgangsschnittstelle: | 0/1-10V |
Befestigungsloch: | 4.5000 mm |
Betriebsspannung: | 120 - 277 VAC |
Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
DALI Max Geräteanzahl: | 15 |
Detection angle: | 360° |
Features: | Daylight Harvest, Tri-level (Corridor Function) |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Human Centric Lightning (HCL): | Nein |
Inbetriebnahmemethoden: | App & Web (Bluetooth) |
Installationstyp: | Built-in |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Product height: | 21.0000 mm |
Produktlänge: | 120.0000 mm |
Produkttiefe: | 30.0000 mm |
Schutzart: | IP20 |
Tri-level (Korridorfunktion): | Nein |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | AC |
Warming-up: | 20 s |
Zhaga: | No |
