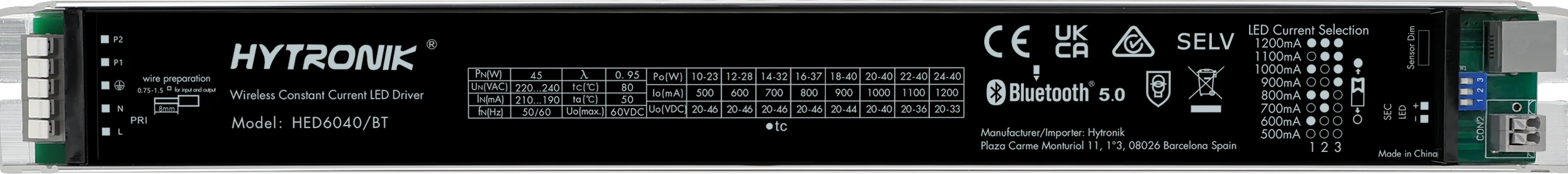

HED6040/BT
Bluetooth LED Driver 40W (CC) Dimmable | Plug’n’Play | Built-in
FEATURES
- Compact: Constant current LED Driver with Bluetooth interface
- Versatile: Suitable for various sensor head options via Plug’n’Play
- Easy configuration: via Dip-switch & Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Retrofit projects with no extra wiring for control
- Offices
- Classrooms
Produktinformationen "HED6040/BT"

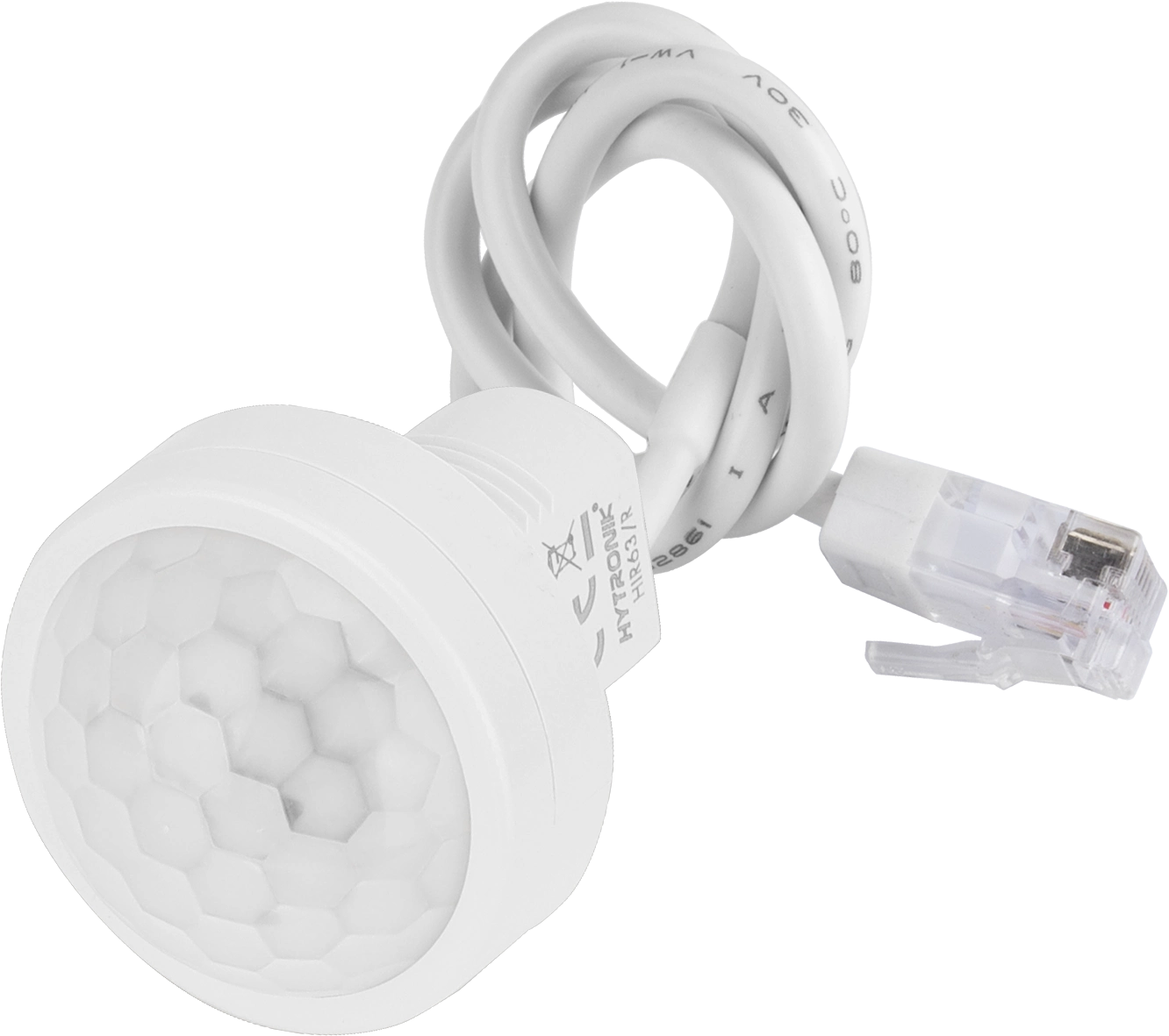

HED6040/BT is a Bluetooth dimming LED driver with 40W max power output. It has a Switch-Dim interface via a Push switch. By connecting sensor heads like HIR05, HIR07, HIR11, HIR12, HIR63, HIR63/R, SAM20, SAM21, SAM22, SAM23 to the driver, it enables motion detection and Bluetooth mesh control.
| Ausgangsspannung: | 20-46V |
|---|---|
| Betriebsart: | Konstantstrom |
| Betriebsspannung: | 220-240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Dimm-Steuersignal: | Schalter-Dimmung |
| Human Centric Lightning (HCL): | Nein |
| IP-Schutzart: | IP20 |
| Inbetriebnahme-Methoden: | App & Web (Bluetooth), DIP-Schalter |
| Installationstyp: | Einbau |
| Korridorfunktion: | Nein |
| Lagertemperatur: | 70 °C |
| Max. Luftfeuchtigkeit: | 90 % |
| Min. Lagertemperatur: | -40 °C |
| Min. Luftfeuchtigkeit: | 10 % |
| Produktbreite: | 39.7000 mm |
| Produkthöhe: | 21.3000 mm |
| Produktlänge: | 358.0000 mm |
| Taster Eingänge: | 2 |
| Treiber Typ: | Nur Dimmung |
| Umgebungstemperatur max.: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Wirkungsgrad: | 88.0000 % |
Datenblätter
Produktdatenblatt: hed6040-bt.pdf
