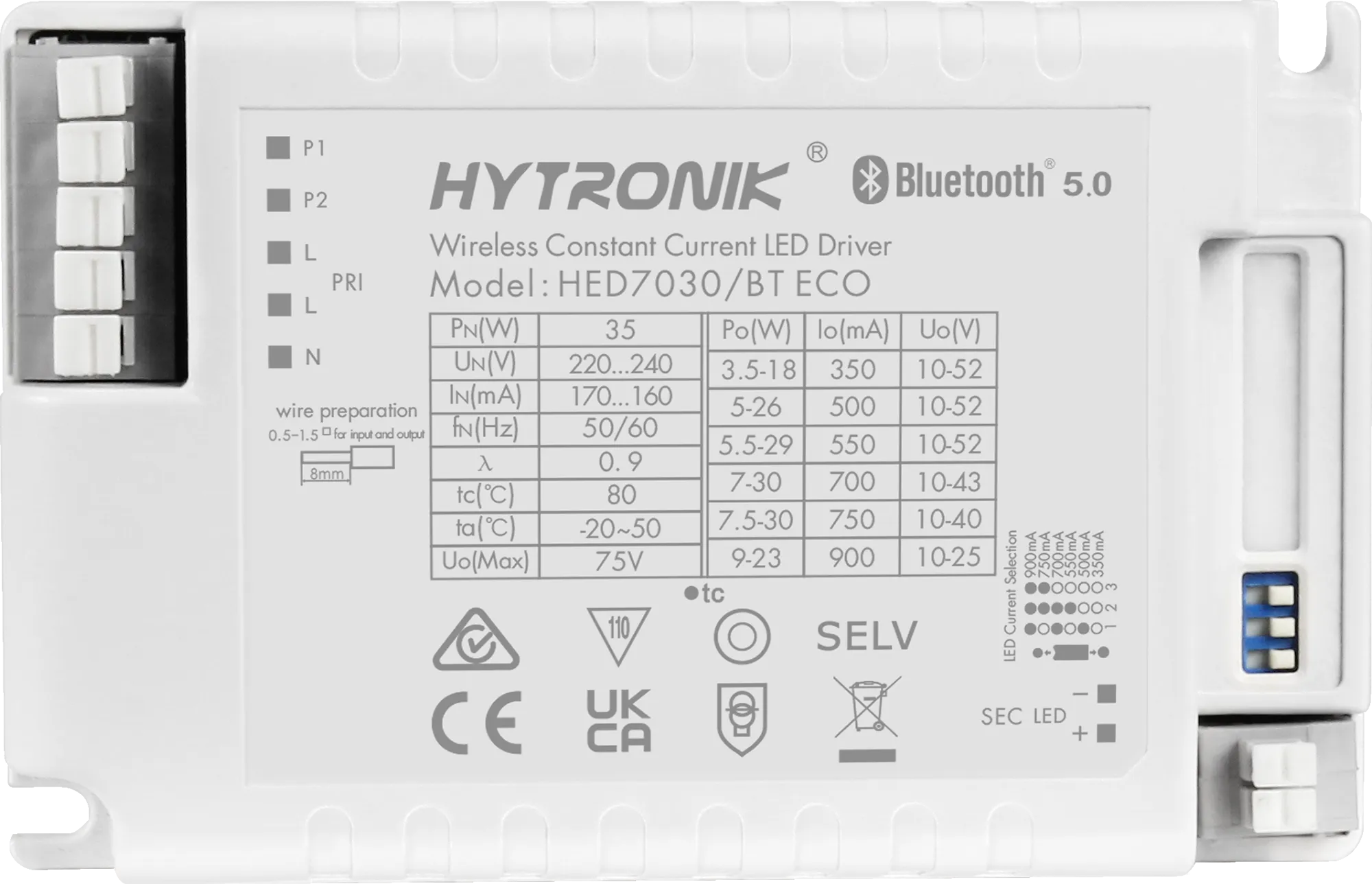

HED7030/BT
Bluetooth Dimmable LED Driver | 30W / 0.35-0.9mA | Compact formfactor
Vorteile
- 2-in-1: 30W Compact driver with plug-and-play motion sensors
- Innovative: Featuring Switch-Dim and Bluetooth dimming interfaces
- Easy: Motion and Daylight harvest configuration via Koolmesh app
ANWENDUNGEN
- Luminaires with integrated sensor
- Retrofit projects with no extra wiring for control
- All types of indoor applications
Produktinformationen "HED7030/BT"

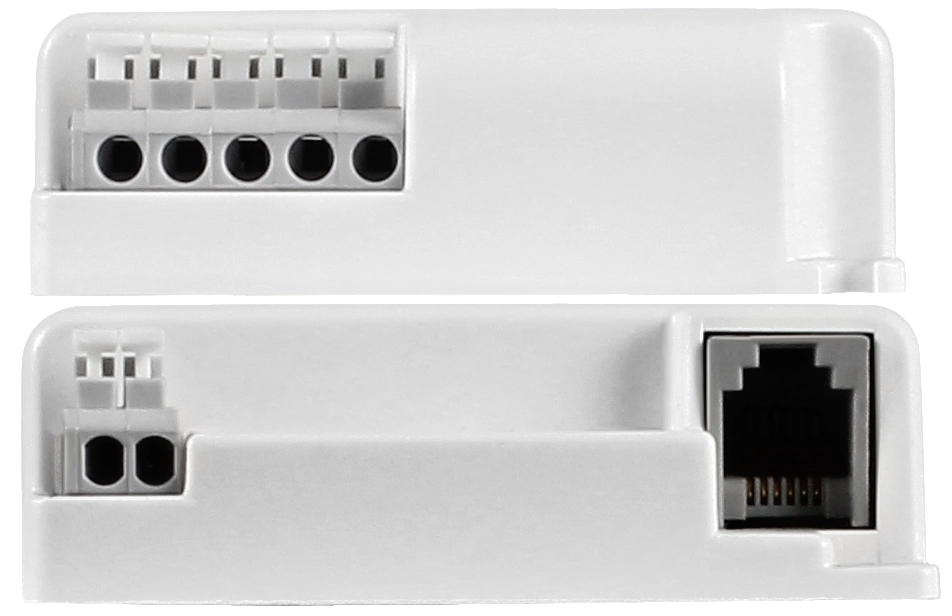

HED7030/BT is a Bluetooth dimmable LED driver, with maximum power output of 30W. It come with Switch-Dim interface by using Push switch (retractive switch) and of course Bluetooth dimming interface. The driver comes with an RJ12 terminal, ready to plug in a wide selection of motion sensors, ranging from HF to PIR, from low bay to high bay etc. It is ideal for direct projects or new luminaires design for lighting manufacturers. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring.
| Ausgangsleistung: | 26W - 44W |
|---|---|
| Ausgangsspannung: | 10-57V |
| Befestigungsloch: | 4.1000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Dimmschnittstelle: | DALI |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |
| Installationstyp: | Built-in |
| Operating Mode: | Constant Current |
| Product height: | 22.2000 mm |
| Produktlänge: | 108.0000 mm |
| Produkttiefe: | 69.0000 mm |
| Schutzart: | IP20 |
| Taster Eingänge: | 2 |
| Treiber Typ: | Dimming Only |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Wirkungsgrad: | 86 % |
