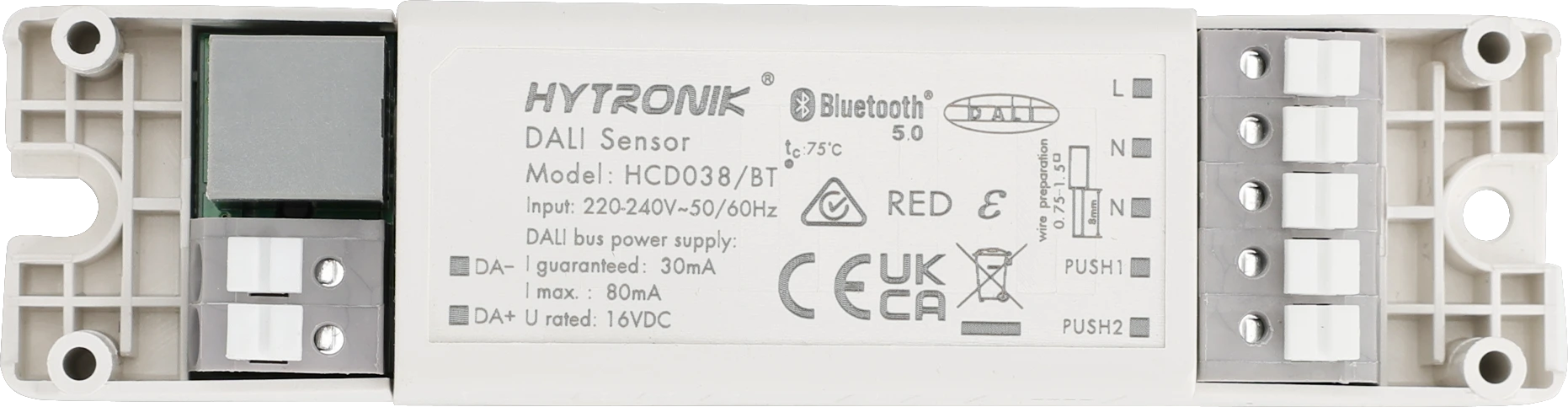

HCD038/BT
Control body | Bluetooth DALI with PSU | Attachable sensor heads
Vorteile
- Adaptable: Small control unit with strain relief

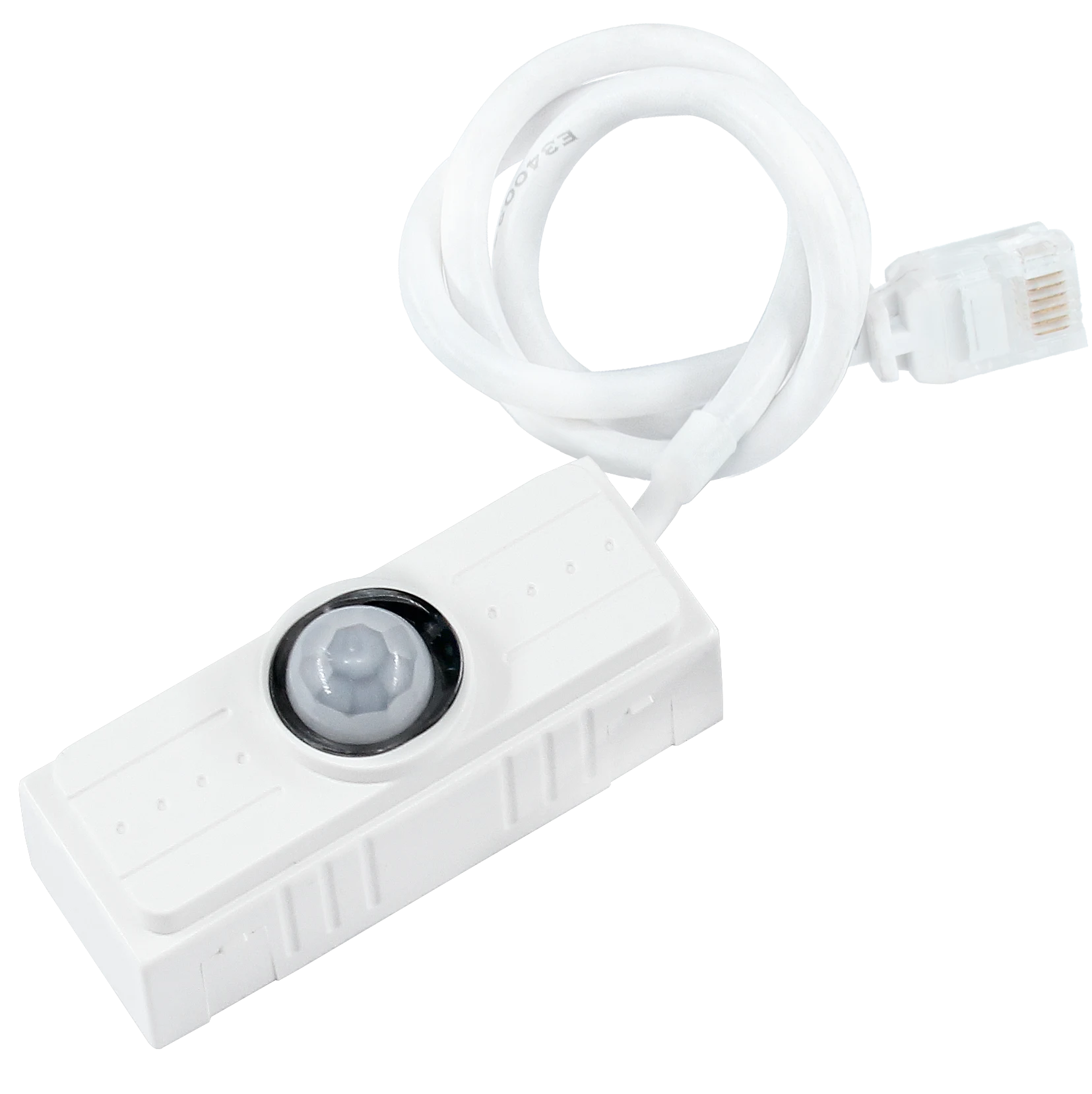

- Versatile: Choose over many sensors options
- Intuitive: Control through bluetooth up to 40 DALI luminaire
ANWENDUNGEN

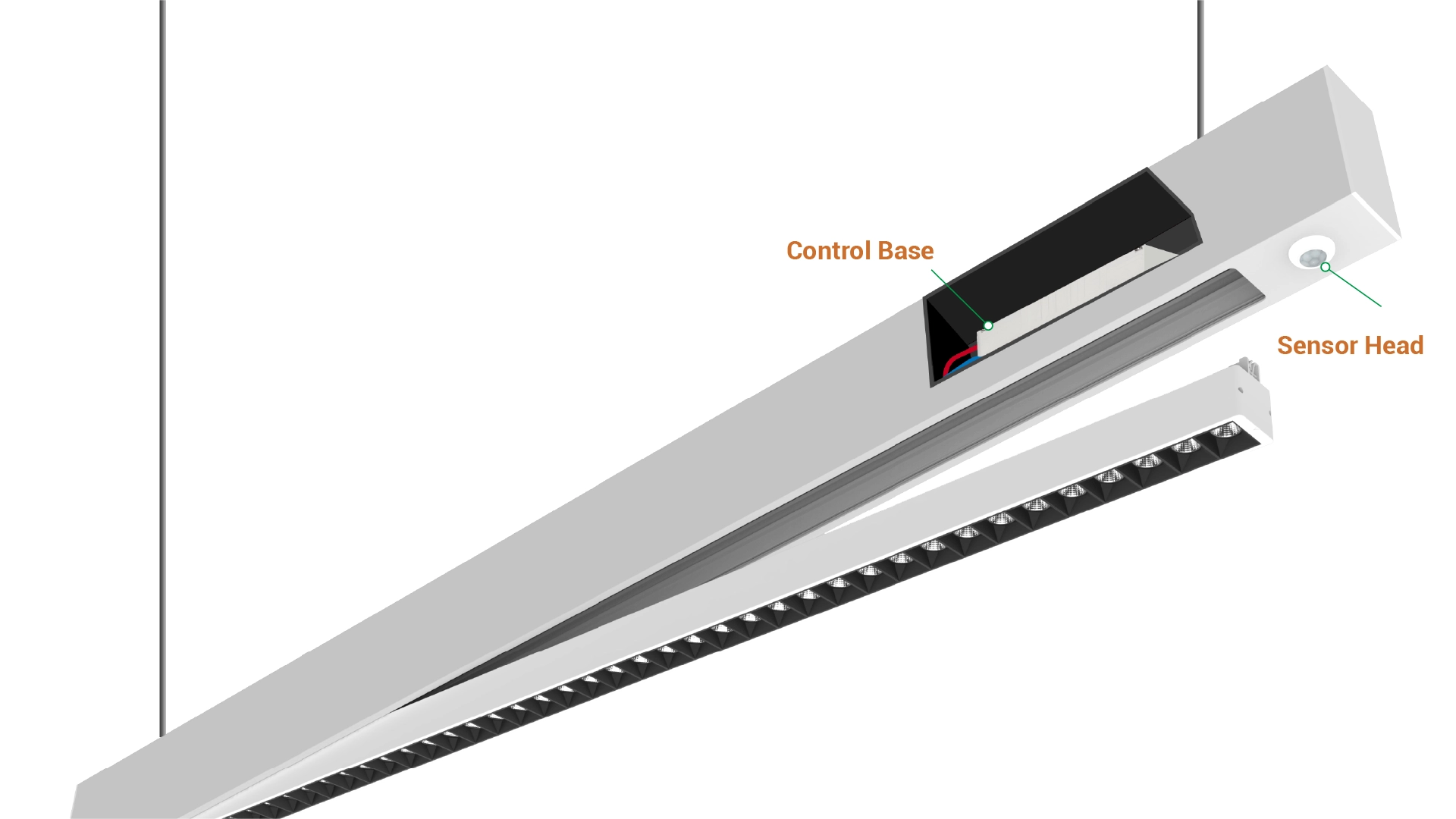

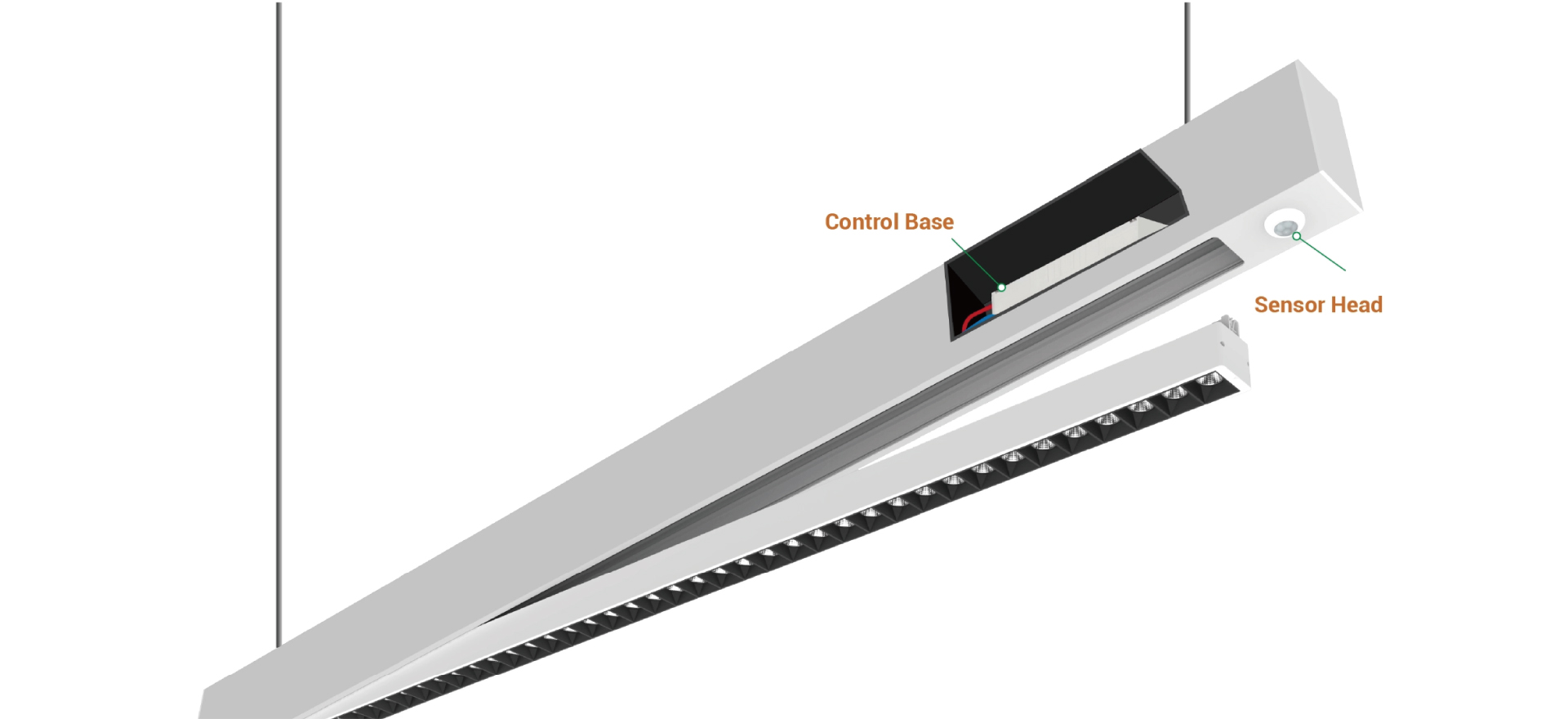

- Master luminaire with sensor
- Classrooms
- Offices
Produktinformationen "HCD038/BT"

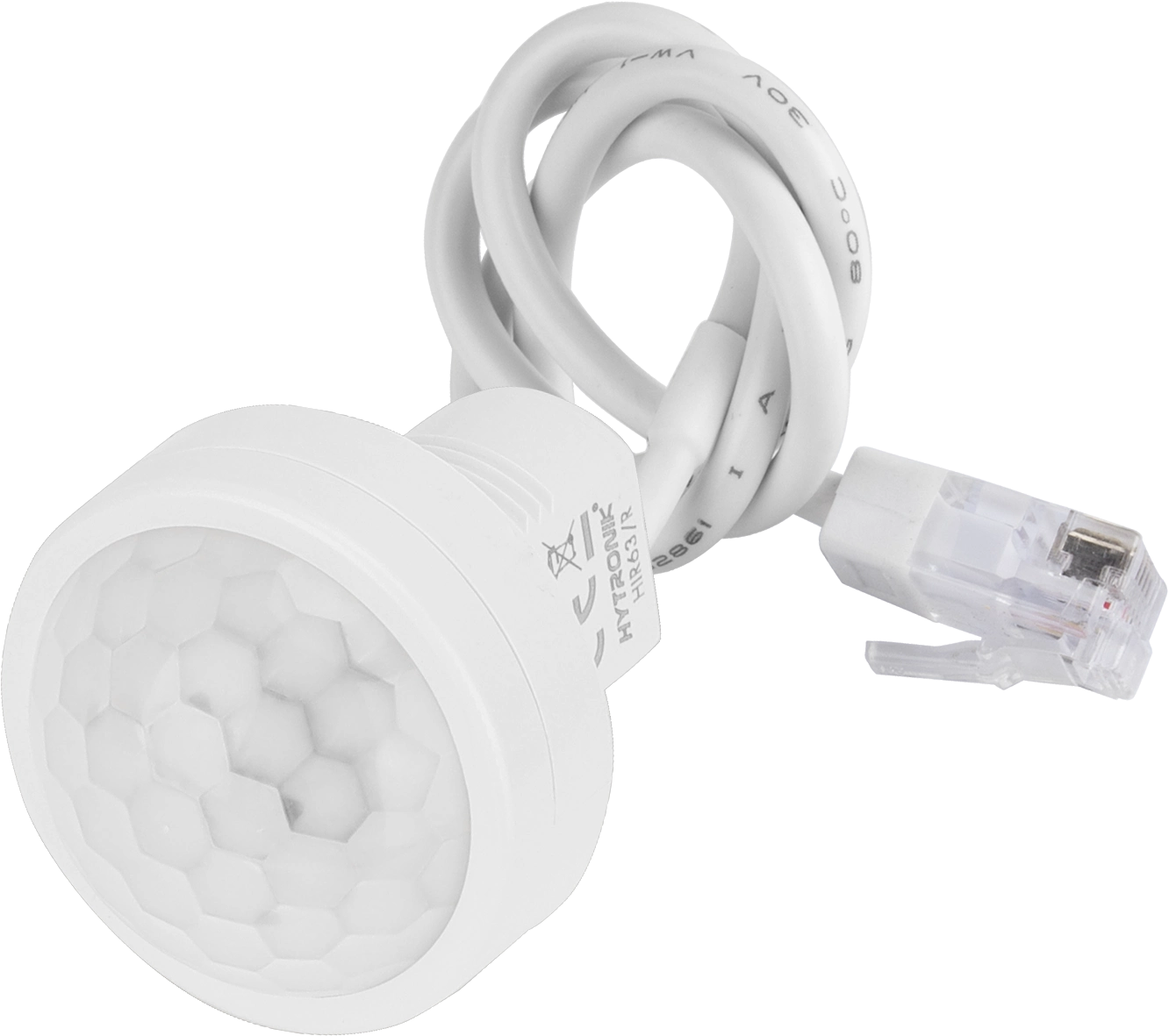

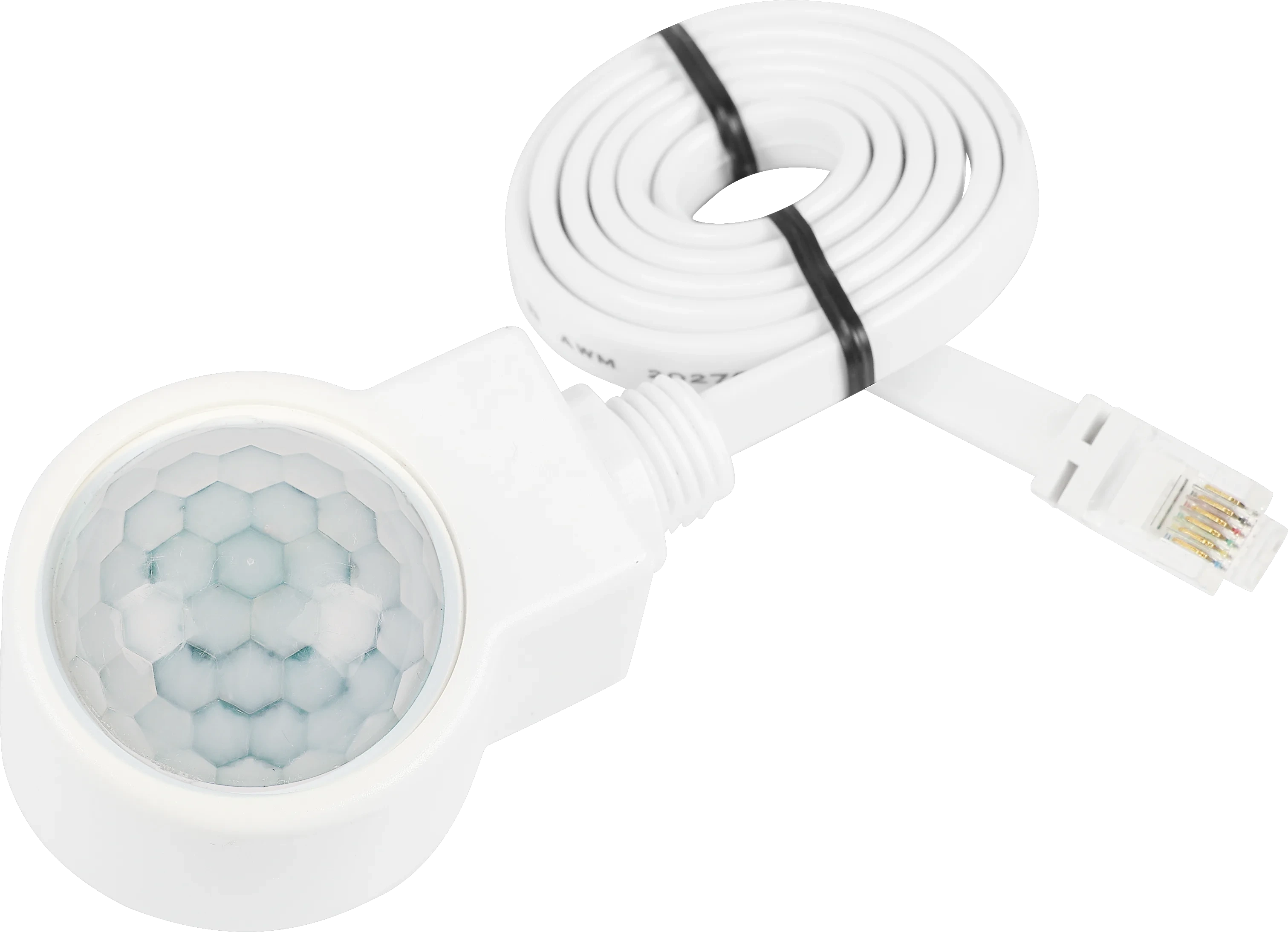

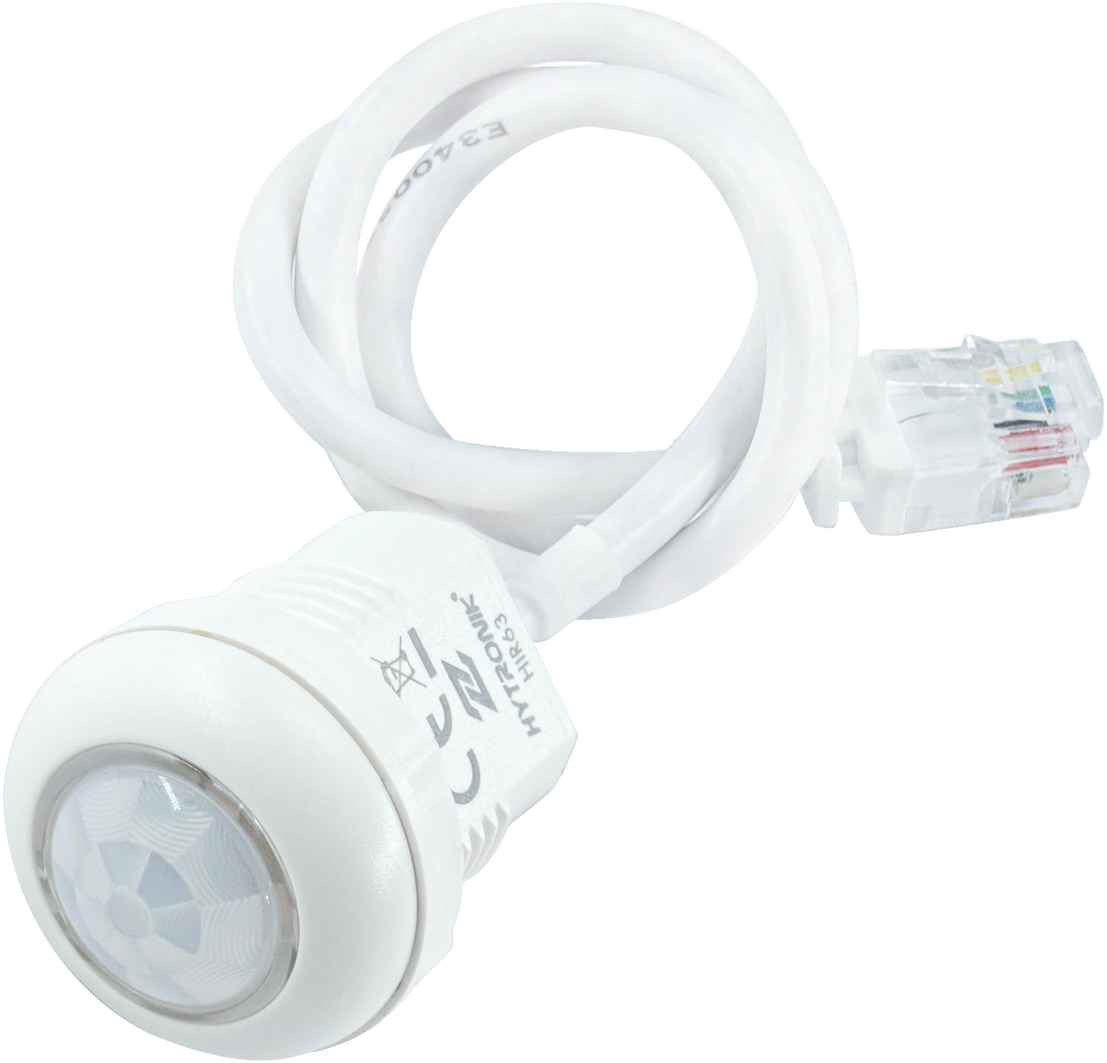

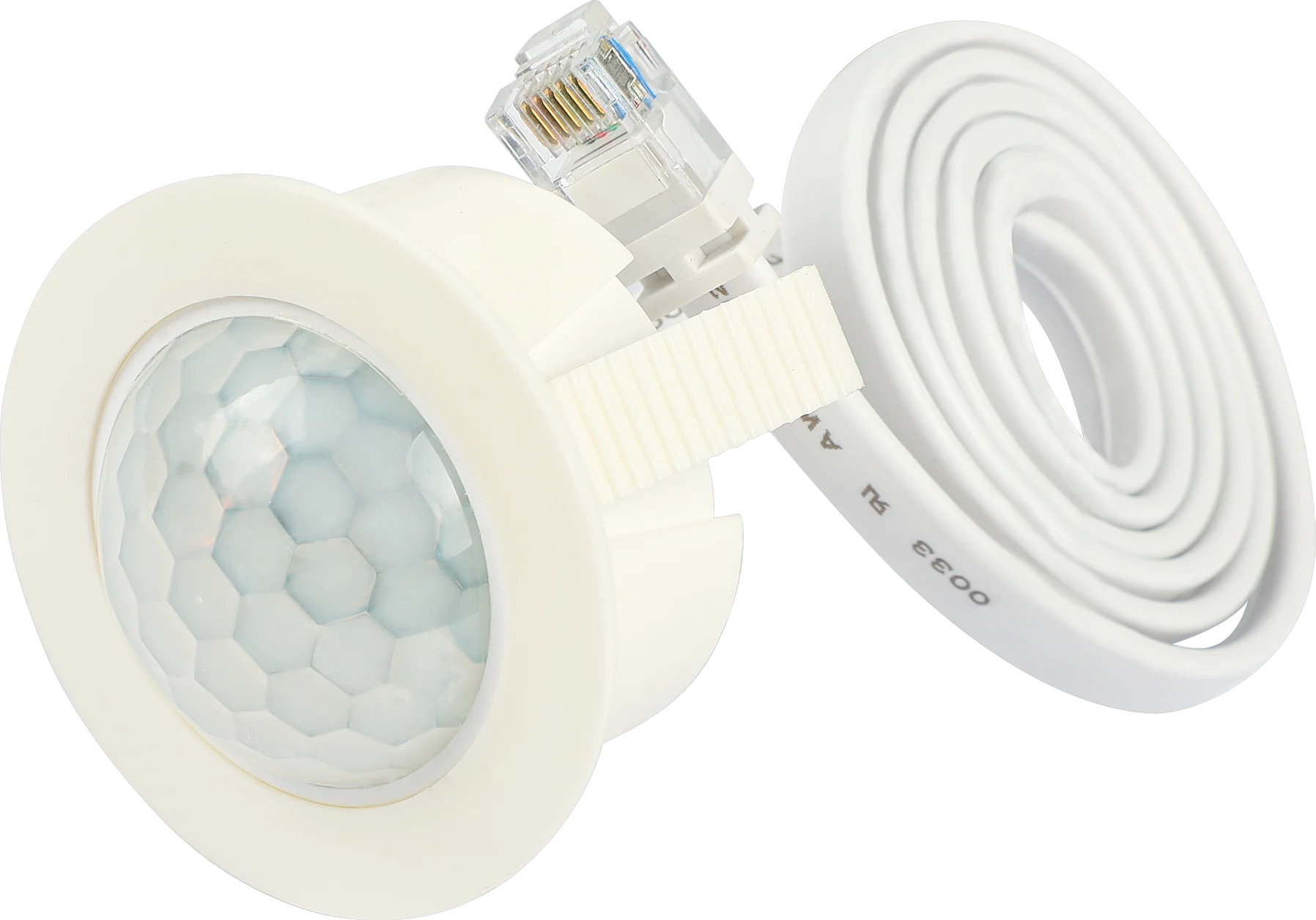

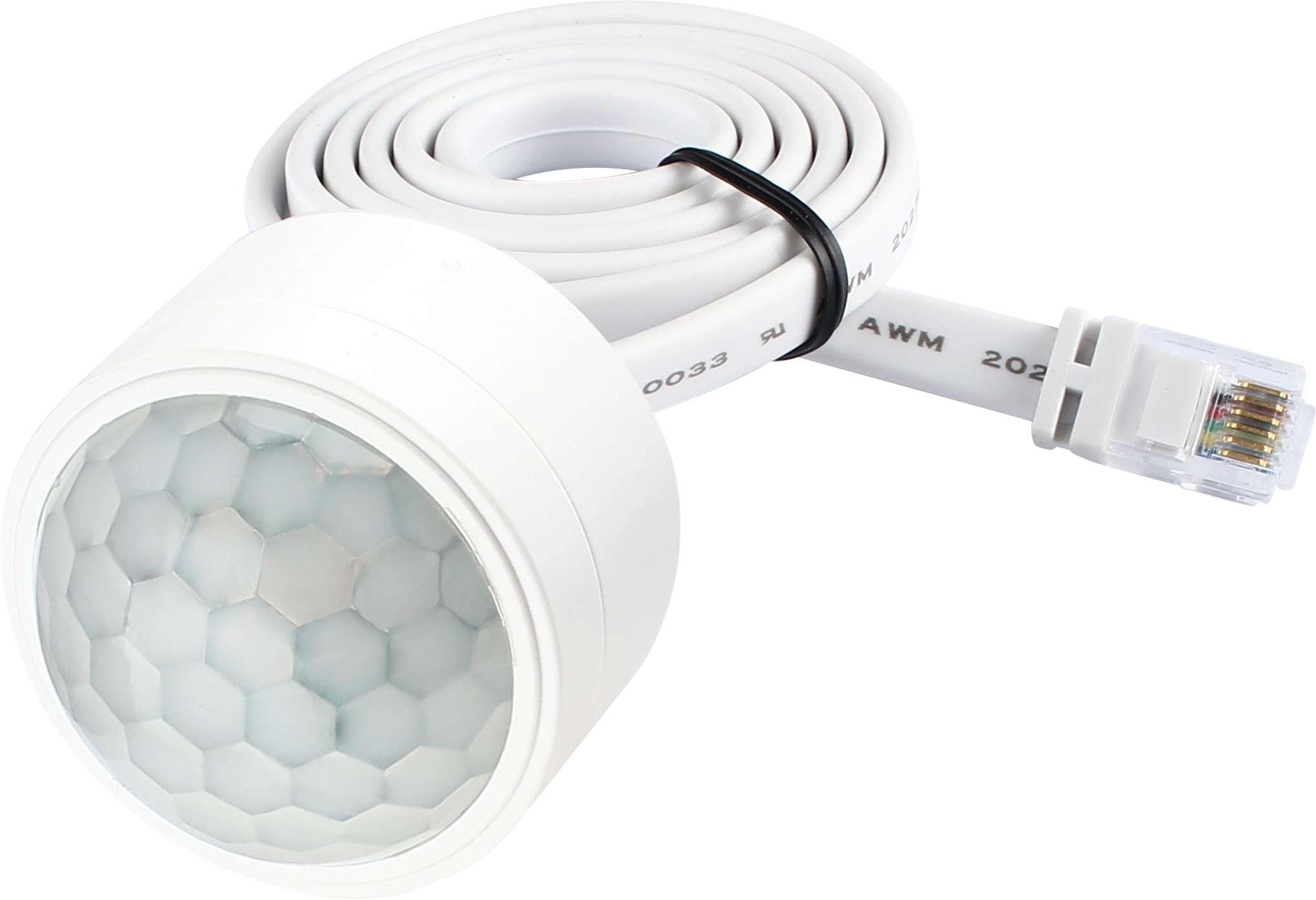

HCD038/BT is a Bluetooth DALI control base with 30mA DALI power supply built in. It work with a wide range of microwave and PIR sensor heads. They are ideal for plastic luminaires as compared to metal luminaires because Bluetooth signal can transmit through plastic.

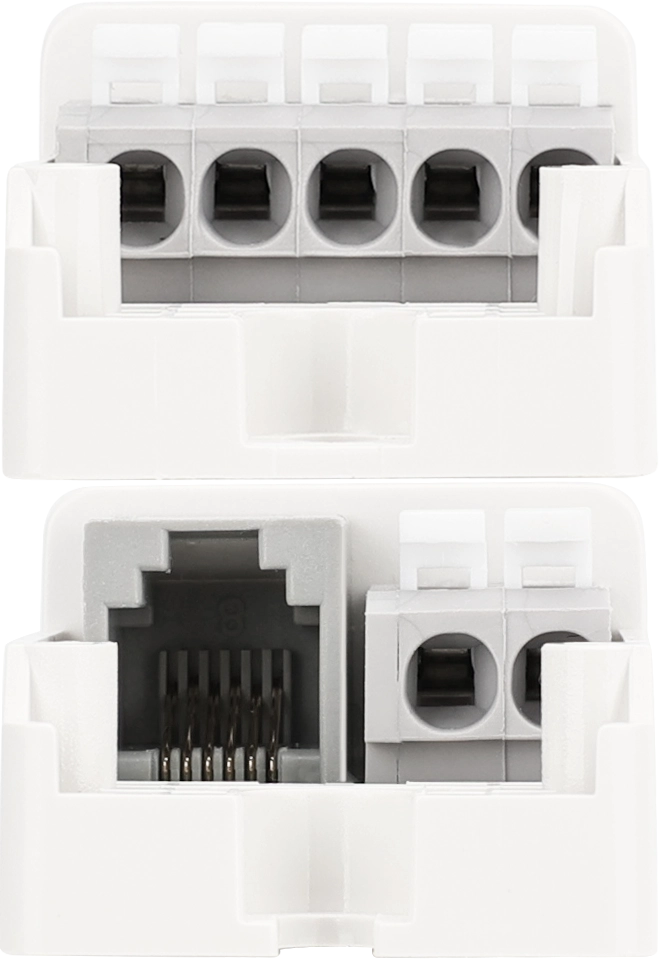

| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | DALI & DALI-2 |
| Befestigungsloch: | 4.5000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| Daylight Harvest: | Ja |
| Detection angle: | 360° |
| Erforderlicher DALI-Strom: | 30.0000 mA |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Ja |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Built-in |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Product height: | 21.0000 mm |
| Produktlänge: | 120.0000 mm |
| Produkttiefe: | 30.0000 mm |
| Schutzart: | IP20 |
| Taster Eingänge: | 1 |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 55 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
