HBEM038
DALI/Bluetooth Converter | 80mA DALI broadcast output | Attachable sensor heads
Vorteile
- Integrated: DALI/Bluetooth converter with built-in control base
- Professional: Powered-DALI to control Emergency and DALI/DALI-2 drivers
- Powerful: Customizable EM tests and settings via Koolmesh
ANWENDUNGEN
- Wireless Control
- DALI Emergency applications
- Offices, Classrooms, Industry and Healthcare Spaces
Produktinformationen "HBEM038"

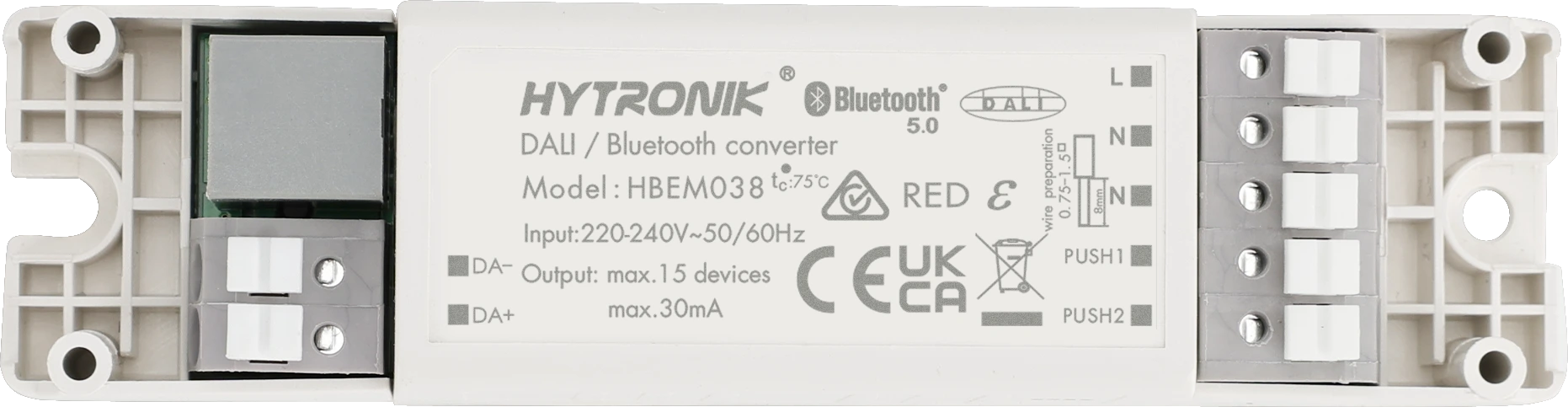

HBEM038 is a wireless DALI/Bluetooth convertor with 30mA DALI power supply built in,
which converts a standard DALI/DALI2 emergency driver output to Bluetooth output. It can

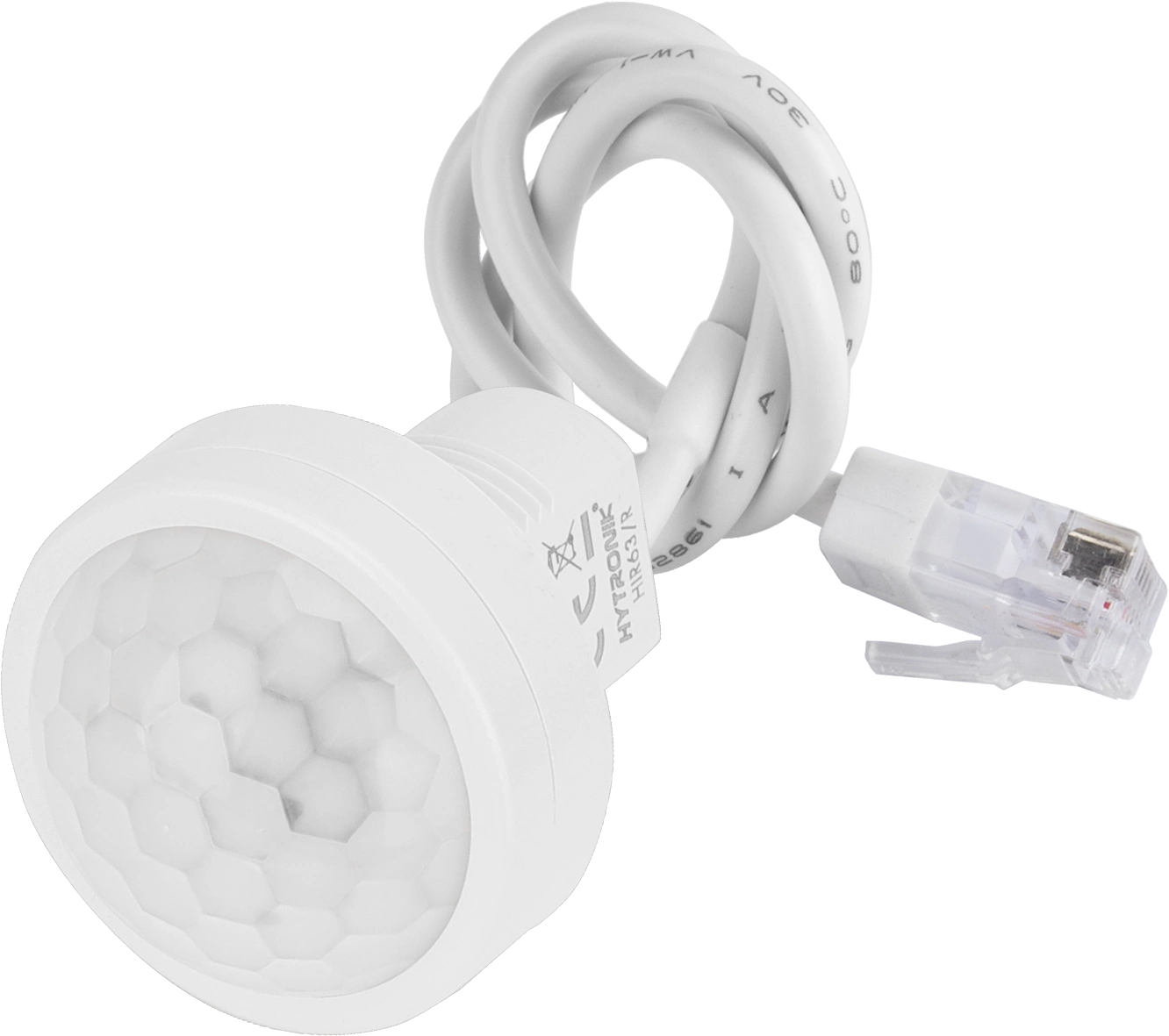

work with a wide range of microwave and PIR sensor heads by plug and play. In the
meantime, it enables users to manage and customize monthly functional and annual duration
tests based on the Koolmesh Emergency system.
| Ausgangsschnittstelle: | DALI |
|---|---|
| Befestigungsloch: | 4.5000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| Category - Emergency LED Drivers & Inverters: | DALI-to-Bluetooth Emergency Converter/Translator |
| Erforderlicher DALI-Strom: | 30.0000 mA |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Product height: | 21.0000 mm |
| Produktlänge: | 110.5000 mm |
| Produkttiefe: | 30.0000 mm |
| Schutzart: | IP20 |
| Taster Eingänge: | 2 |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
