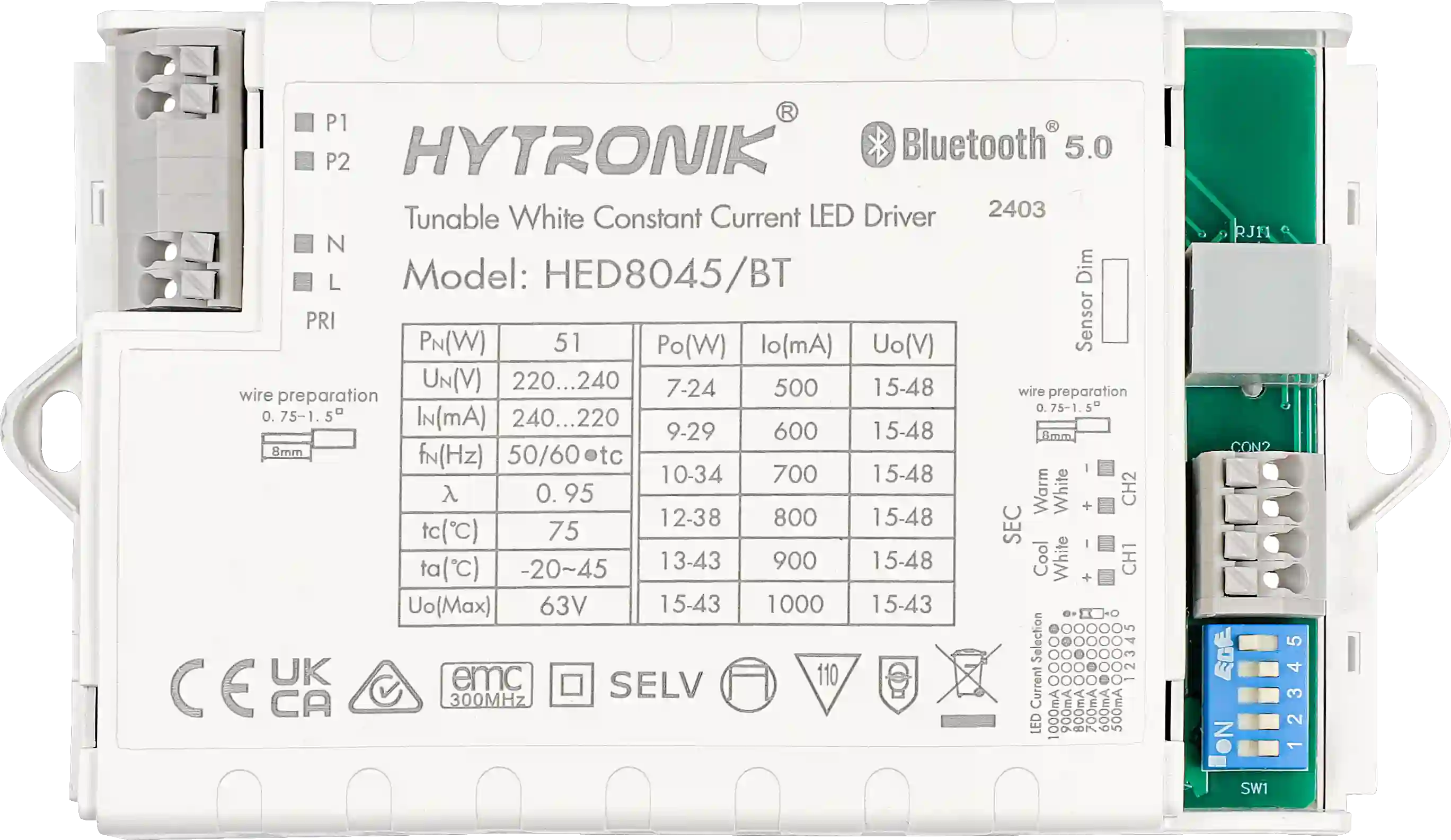

HED8045/BT
Turnable white | Plugable Sensor heads
Vorteile

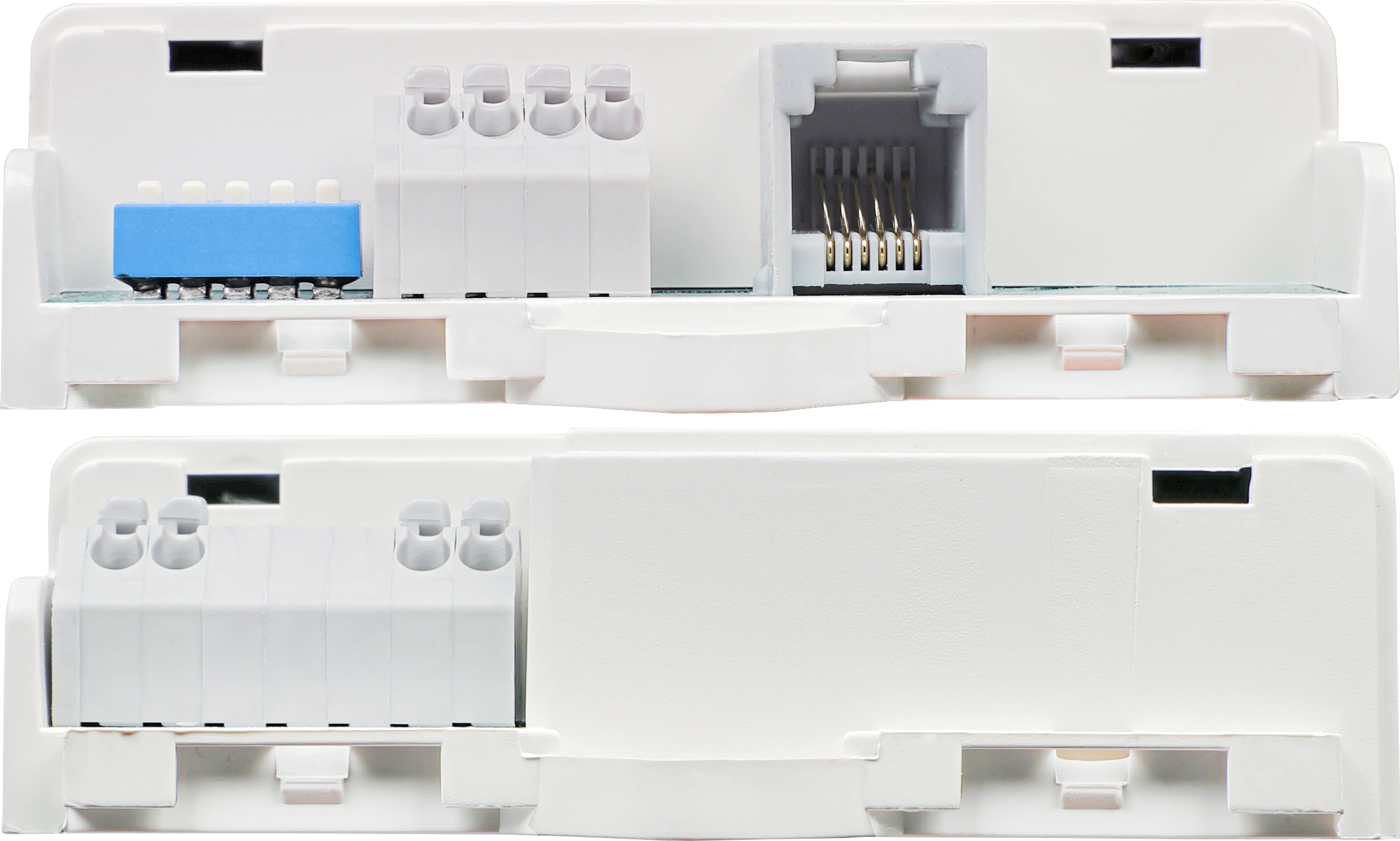

- Compact: DT8 Driver with plugable RJ12 Sensorhead
- Flexible: Configurable constant current (CC) output via DIP switches
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Luminaire Built-in integration
- Offices
- Classrooms
Produktinformationen "HED8045/BT"
Bluetooth Mesh Control With app, 220-240VAC input, Constant current, Multiple current selection via DIP-Switches, Tunable white control, Human Centric Lighting / Circadian Rhythm, Max power: 43W, 2 Switch-Dim (PUSH) terminals, Optional motion sensor pluggable (Sensor-Dim)
Ausgangsleistung: | ≥45W |
---|---|
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
DALI Gerätetyp: | DT8 |
Dimmschnittstelle: | Relay On/Off |
Human Centric Lightning (HCL): | Nein |
Installationstyp: | Stand-alone |
Lagertemperatur: | 45 °C |
Lagertemperatur min.: | -20 °C |
Operating Mode: | Constant Current |
Product height: | 23.0000 mm |
Produktlänge: | 140.6000 mm |
Produkttiefe: | 79.2000 mm |
Schutzart: | IP20 |
Treiber Typ: | Dimming & Color Tuning |
Tri-level (Korridorfunktion): | Nein |
Umgebungstemperatur: | 45 °C |
Umgebungstemperatur min.: | -20 °C |
Wirkungsgrad: | 88 % |
