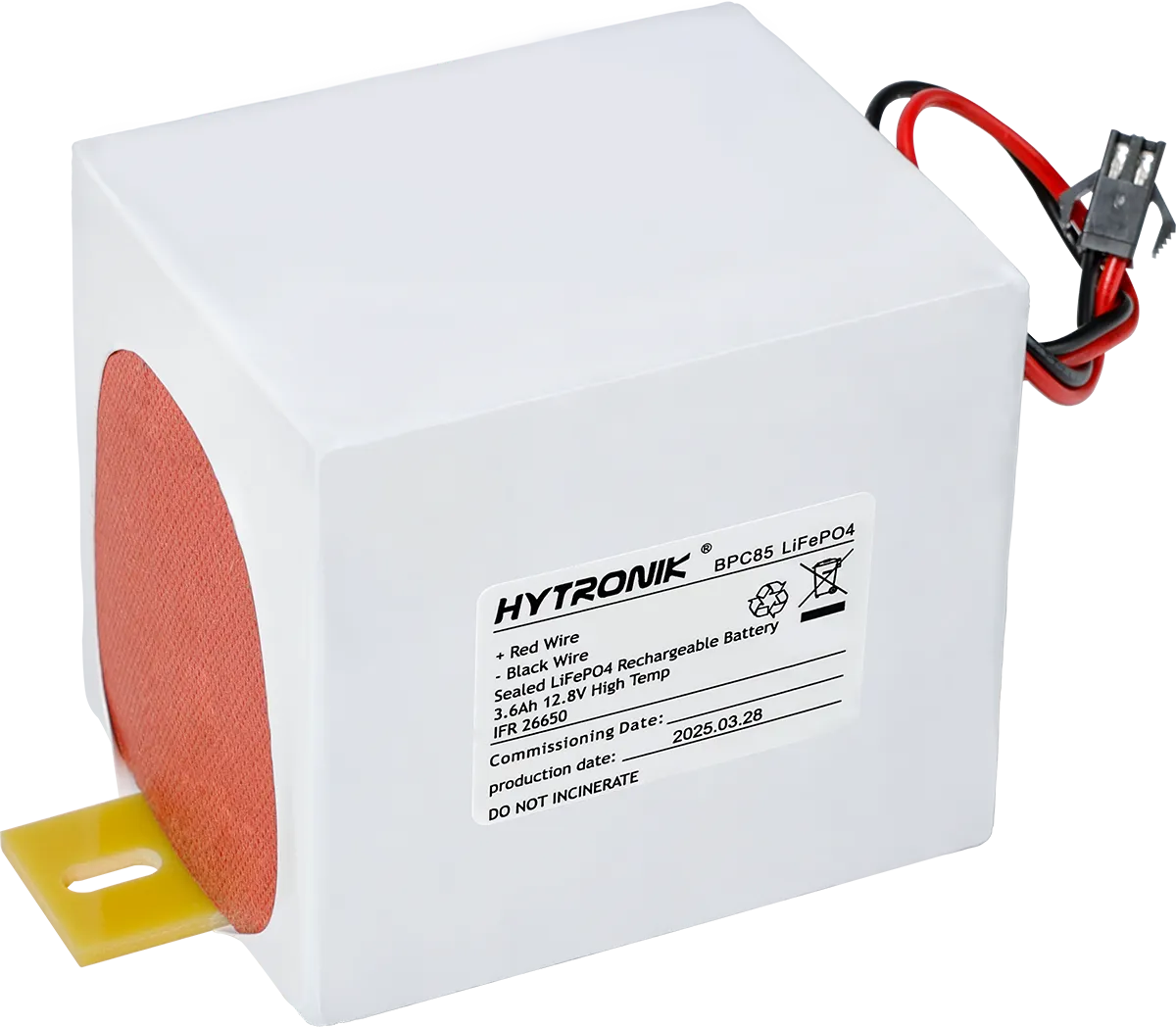

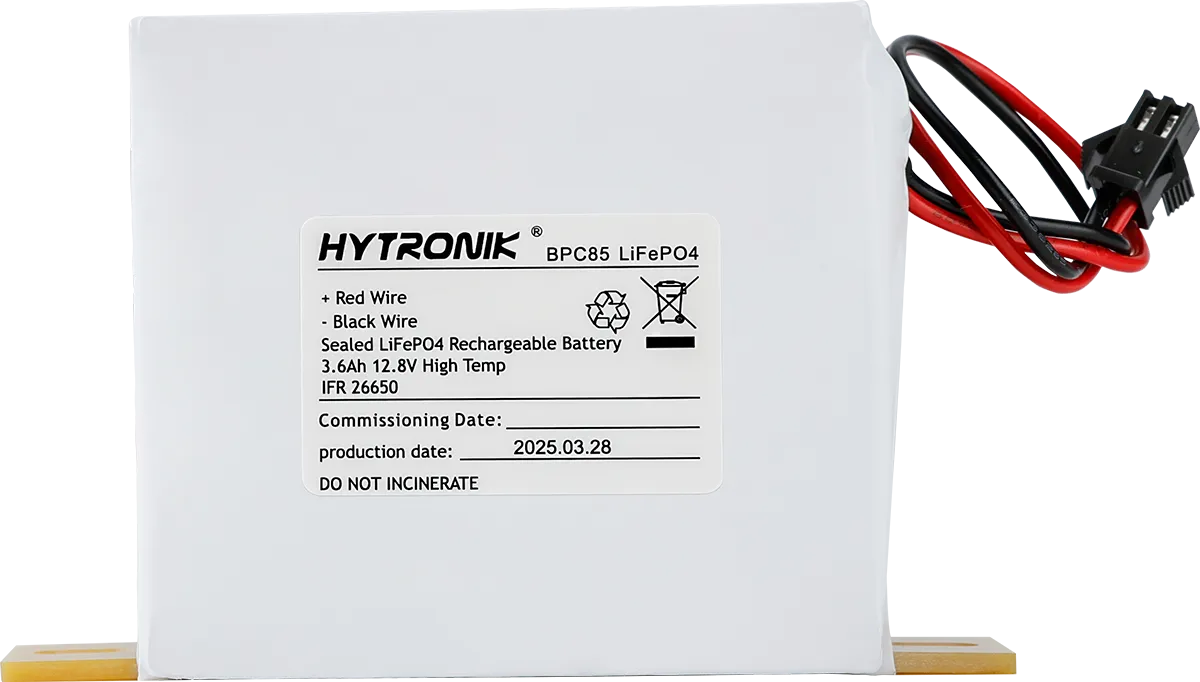

BPC85
Battery | LiFePO4 with 3.6Ah | 12.8V
BENEFITS
- Compact: Small size to fit into emergency luminaire
- Simple: LED Indicator for visual check
- Informative: Battery bracket
APPLICATIONS
- Built-in EM luminaries
- Offices, Classrooms
- Industry, Healthcare Spaces
Product information "BPC85"
- Charge efficiency > 90 %
- Low self discharge
- Compact connector providing polarity safe battery connection
- Built-in protection and monitoring circuit
- Battery protected against operation at excessive temperatures
- Deep discharge protection
- Overcharge protection included
- Designed for use in emergency lighting applications including luminaires compliant with IEC 60598-2-22.
| Ambient temperature max.: | 85 °C |
|---|---|
| Ambient temperature min.: | -40 °C |
| Battery type: | LiFePO4 |
| Battery voltage: | 12.8V |
| Category - Emergency LED Drivers & Inverters: | Batteries |
| Humidity max: | 95 % |
| Humidity min: | 0 % |
| IP Rate: | IP20 |
| Product height: | 66.5000 mm |
| Product length: | 74.0000 mm |
| Product weight: | 405.0000 g |
| Product width: | 56.5000 mm |
| Storage temperature max.: | 125 °C |
| Storage temperature min.: | -40 °C |
