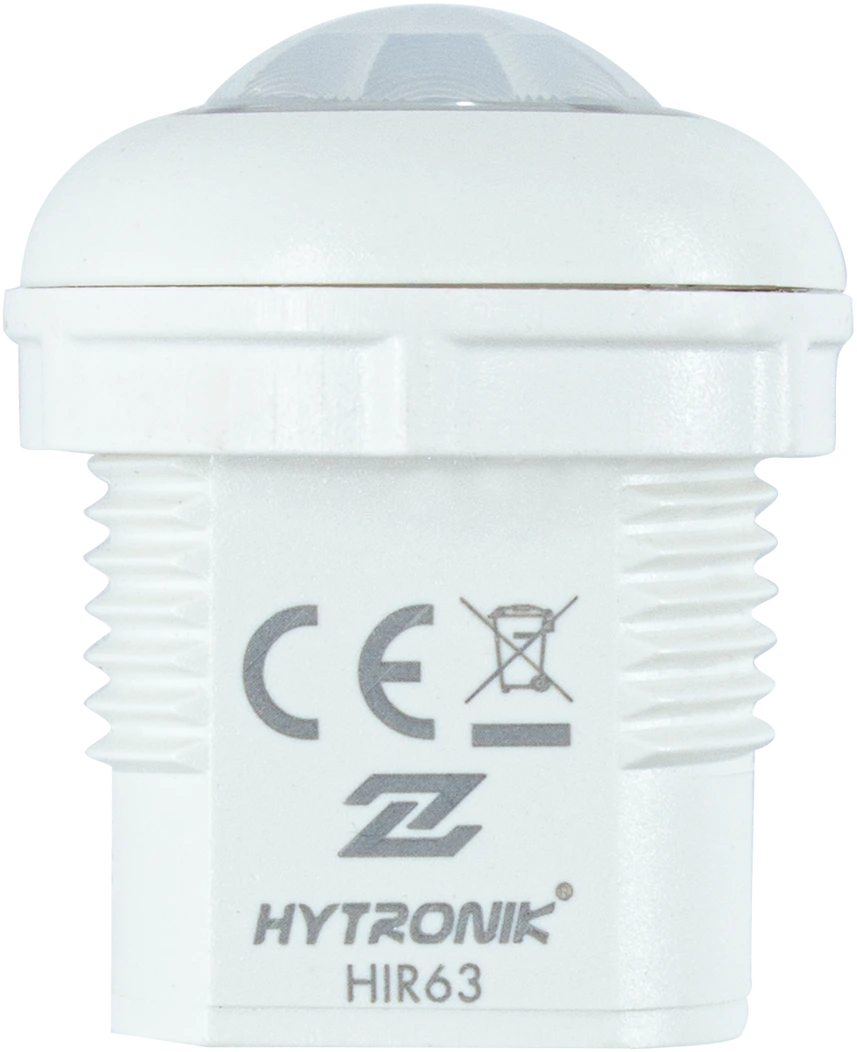

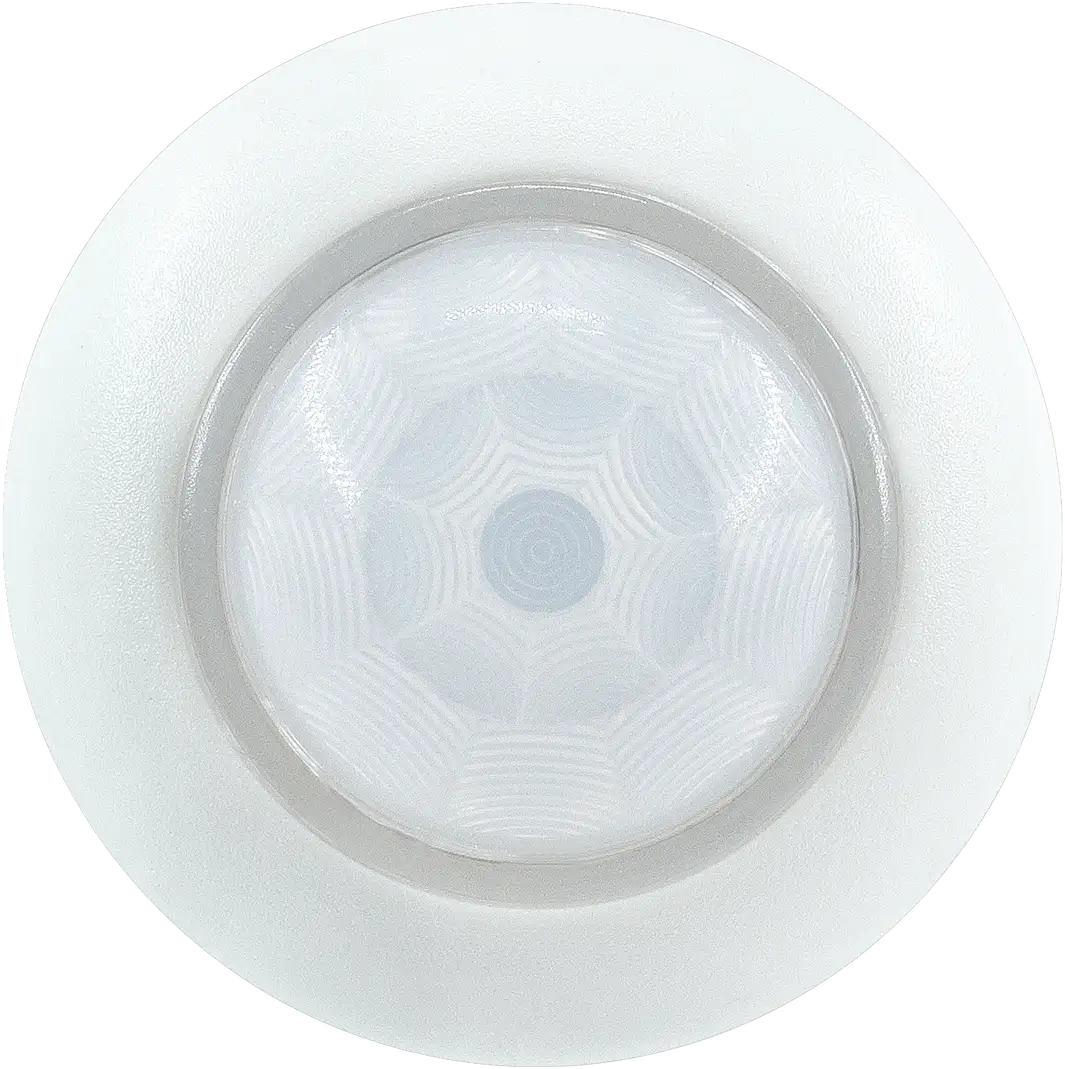

HIR63
PIR Lowbay | Ciradian Rhyhm | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Circadian Rhythm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Conduit thread: M 22x1.5mm
- Classrooms
- Offices
Produktinformationen "HIR63"

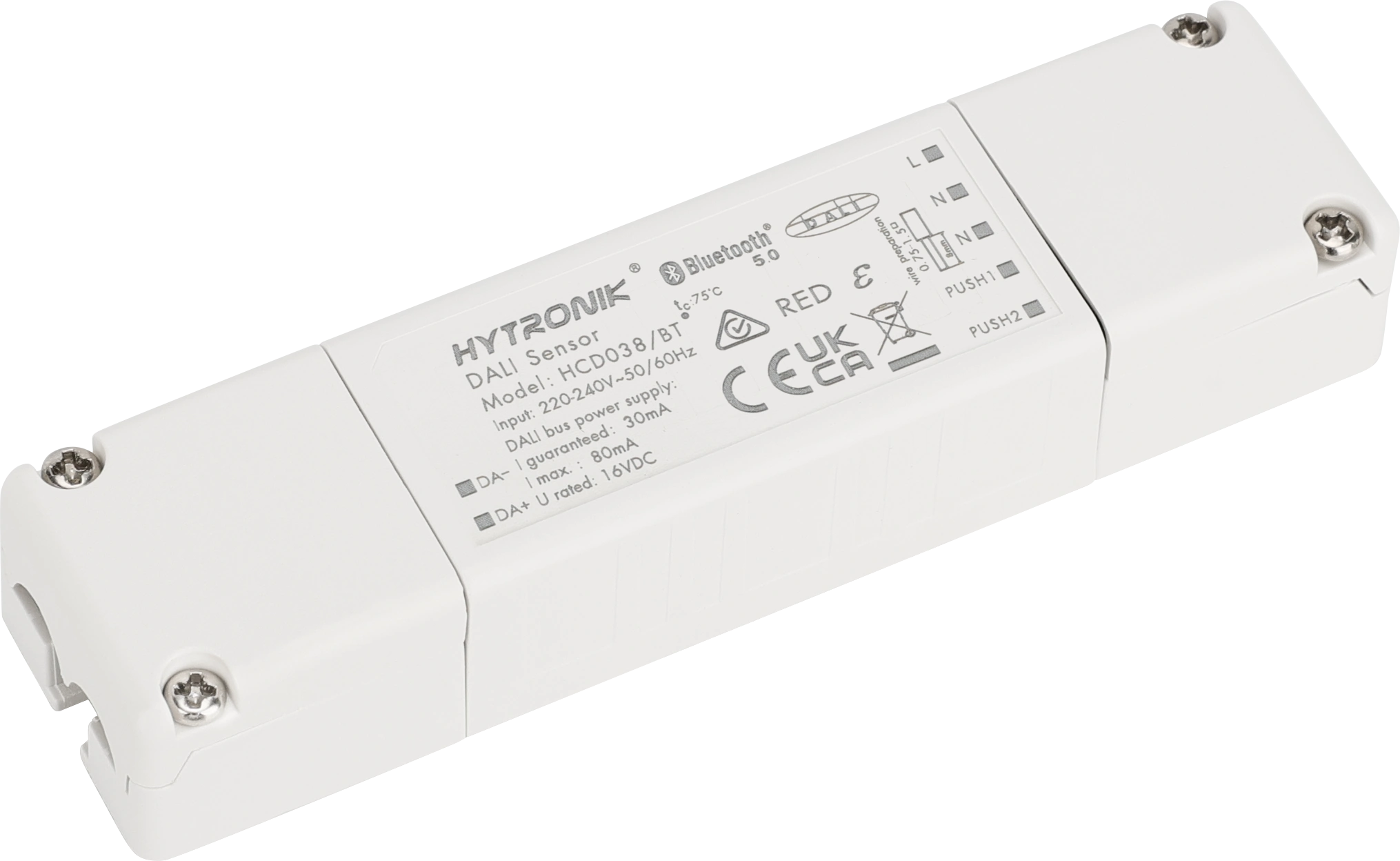

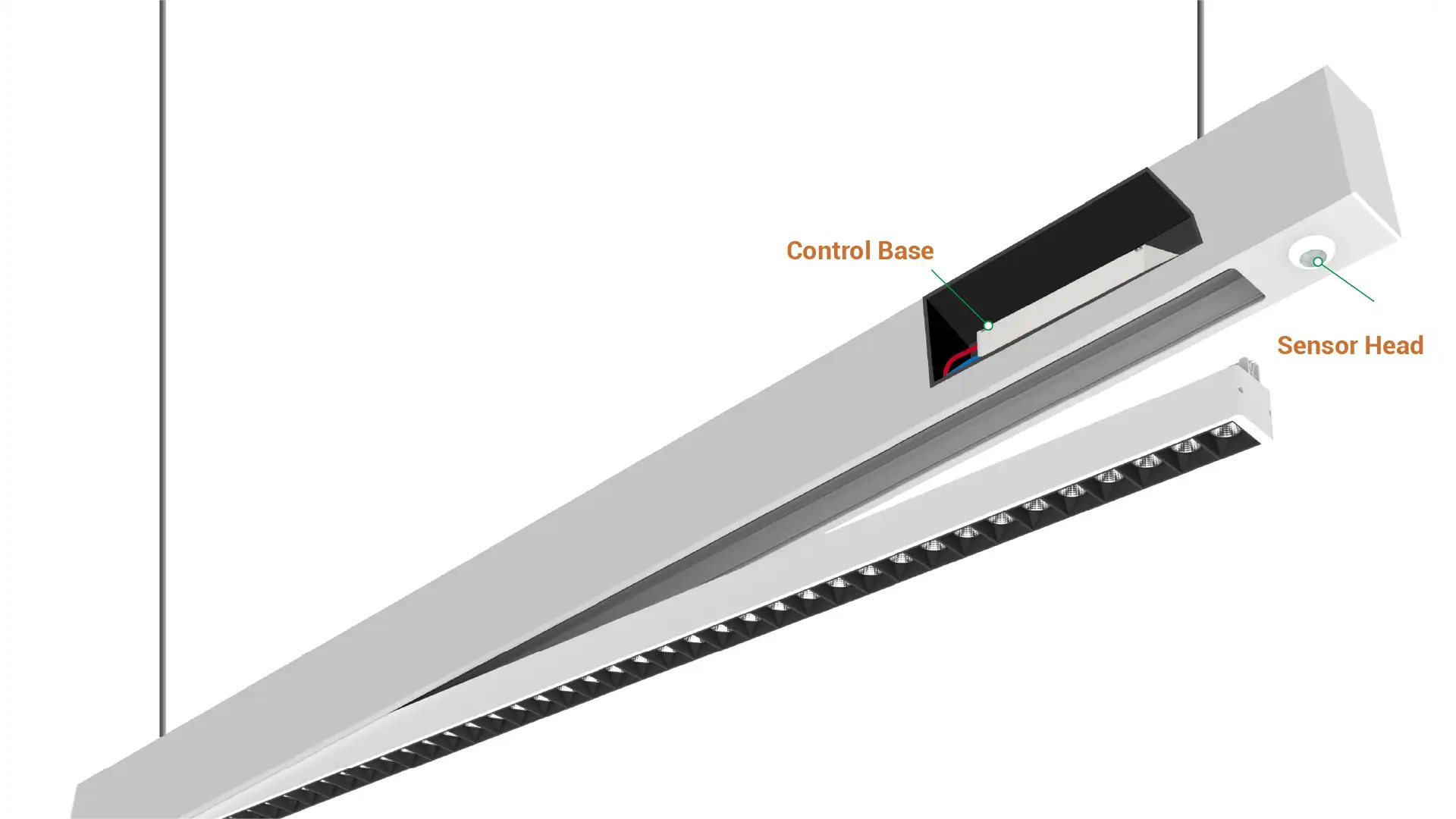

HIR63 is a PIR sensor head and compatible with the Daylight Harverst. It can work with the linear shaped control base such as HCD038V and HCD038/P. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Anschlusstyp: | RJ12 |
|---|---|
| Betriebsspannung: | 5 VDC |
| Daylight Harvest: | Nein |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 20x12 |
| Features: | Daylight Harvest, Human Centric Lighting, Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Ja |
| Installationstyp: | Plug & Play Sensor Heads |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Lens type: | Standard Low-bay |
| Montagehöhe: | Low-bay |
| Product height: | 26.0000 mm |
| Produkttiefe: | 31.8000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Photocell Advance |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
