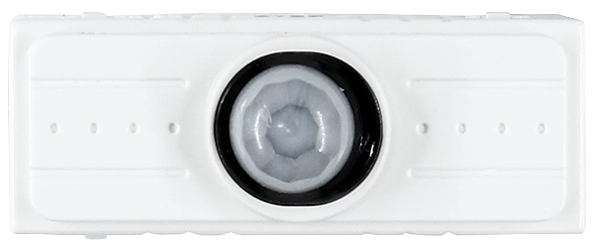

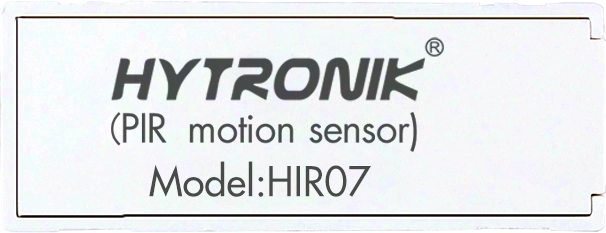

HIR07
PIR Lowbay | Photocell Advance | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Master luminaire with sensor
- Classrooms
- Offices
Produktinformationen "HIR07"
HIR07 is a PIR sensor head and compatible with the Photocell Advance. It can work with the linear shaped control base such as HC038V/BT and HCD038/BT. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Anschlusstyp: | RJ12 |
|---|---|
| Befestigungsloch: | 13.8000 mm |
| Betriebsspannung: | 5 VDC |
| Bluetooth Frequenz: | 2.4 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| Daylight Harvest: | Ja |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 6x3 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Ja |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Built-in, Plug & Play Sensor Heads |
| Lens type: | Standard Low-bay |
| Maximale Montagehöhe: | 15.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 19.3000 mm |
| Produktlänge: | 44.5000 mm |
| Produkttiefe: | 17.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Photocell Advance |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 55 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
