HED6045/D2
DALI-2 DT6 LED Driver 45W (CC) | Dimmable | Built-in/Stand-alone
BENEFITS
- Compact: LED Driver with DALI feedback
- Flexible: 1-10V dimming & Switch-Dim interfaces
- Easy: Configurable constant current (CC) output via DIP switches
APPLICATIONS
- Optional terminal-cap for stand-alone installation
- Offices
- Classrooms
Product information "HED6045/D2"

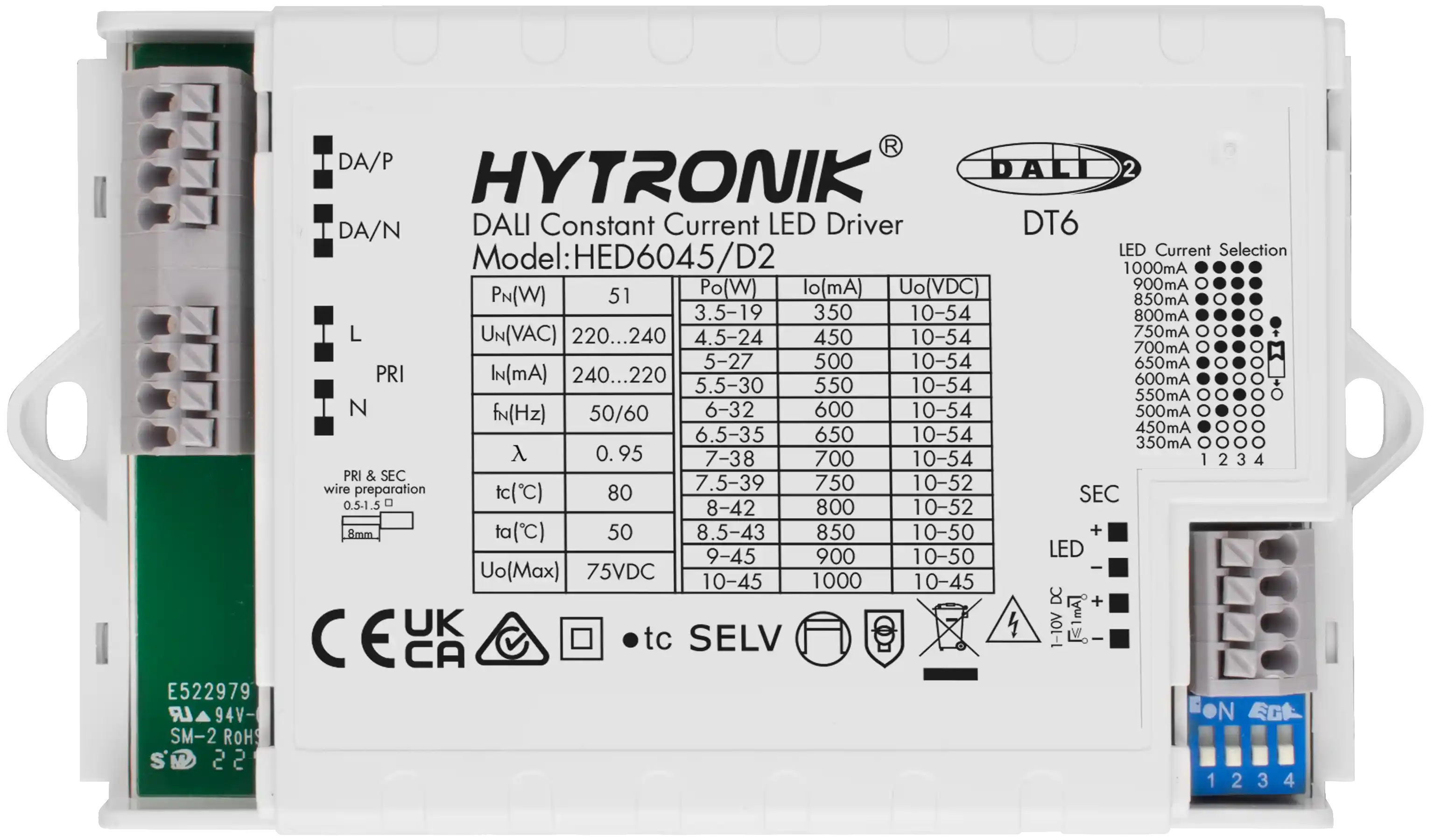

HED6045/D2 is a DALI-2 DT6 dimmable LED driver with maximum power output of 45W. It also comes with 1-10V dimming & Switch-Dim interfaces with adjustable output currents. Ideal for direct projects or new luminaire design for lighting manufactures.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Dimming (Output) Interface: | 0/1-10V, DALI, Switch-Dim |
| Driver Type: | Dimming Only |
| Efficiency: | 88.0000 % |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Stand-alone |
| Operating Mode: | Constant Current |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 10-54V |
| Product height: | 23.0000 mm |
| Product length: | 185.0000 mm |
| Product weight: | 211.0000 g |
| Product width: | 79.2000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Warming-up: | 20 s |
Datasheets
Product datasheet: hed6045-d2.pdf
