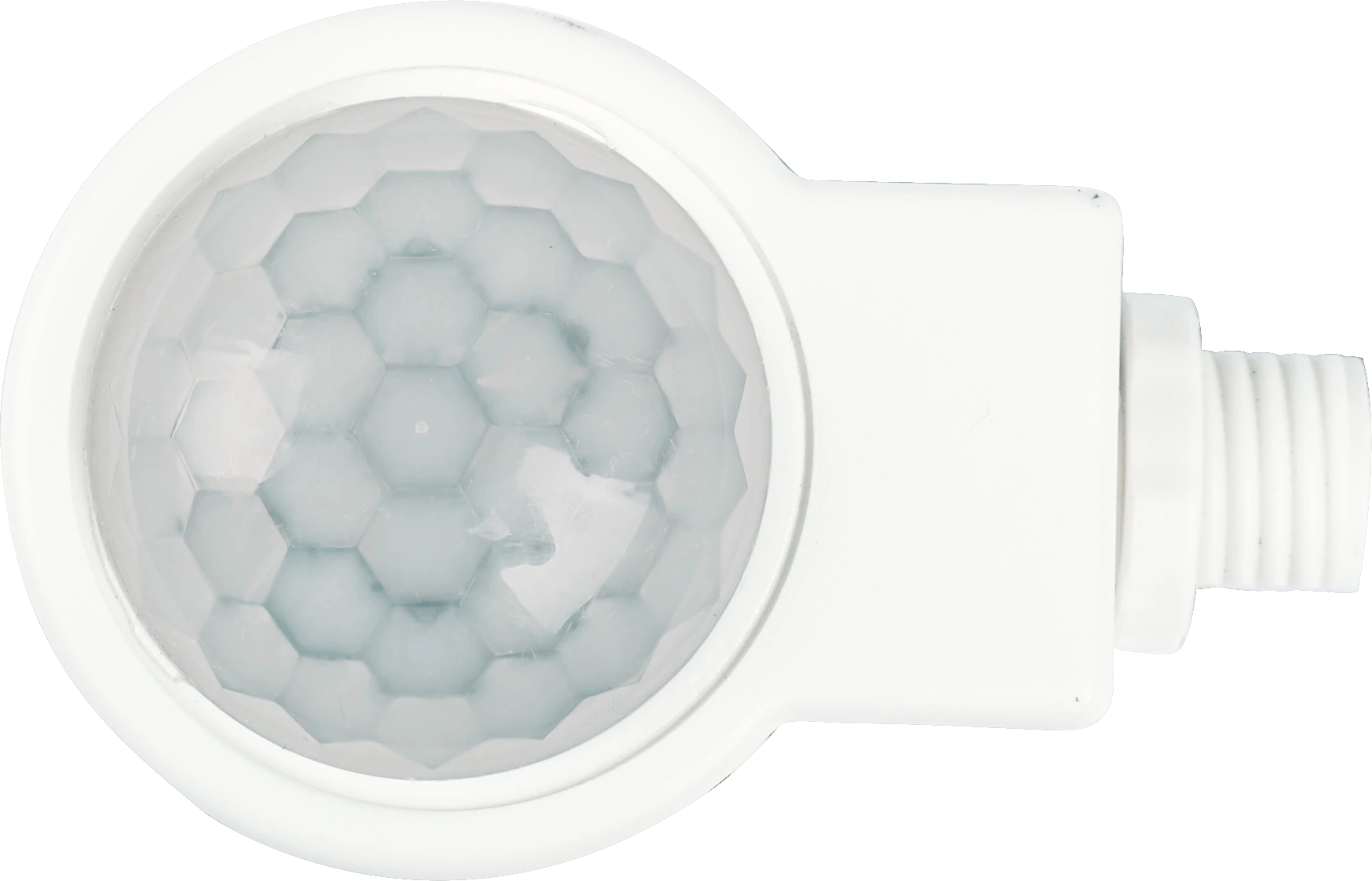

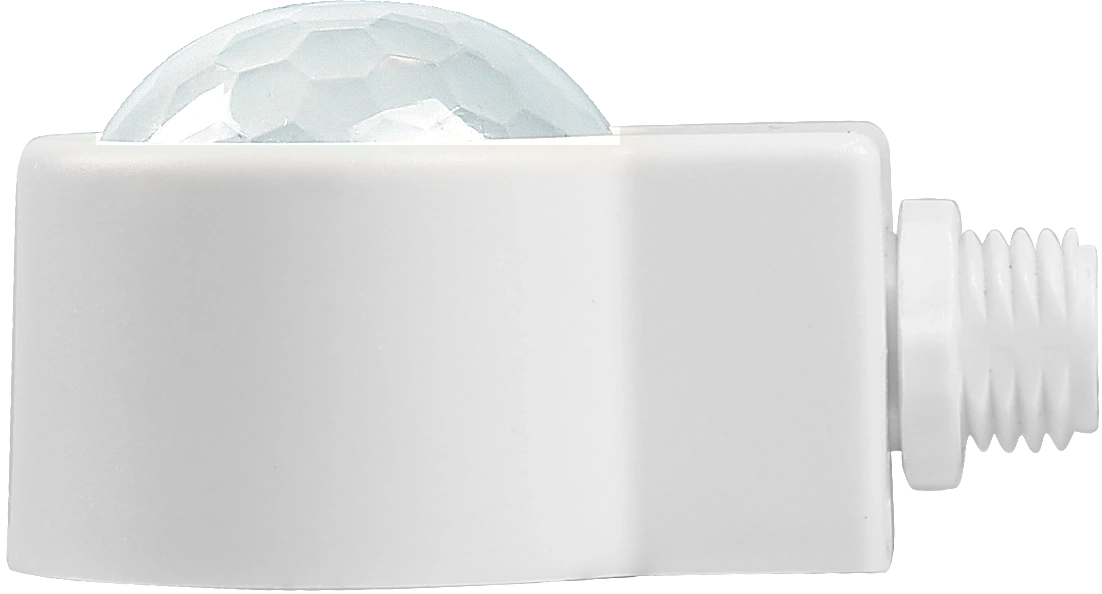

HIR11/C
PIR Highbay | Ciradian Rhyhm | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Conduit thread: M 13x1.5mm
- School/Classrooms
- Office/Commercial Lighting
Produktinformationen "HIR11/C"
HIR11/C is a PIR sensor head. It can work with the linear shaped control base such as HCD038/BT and HCD438/BT. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
Anschlusstyp: | RJ12 |
---|---|
Befestigungsloch: | 14.0000 mm |
Betriebsspannung: | 5 VDC |
Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth System: | Koolmesh |
Daylight Harvest: | Ja |
Detection angle: | 360° |
Detektionsverfahren: | Passive Infrared (PIR) |
Features: | Daylight Harvest, Human Centric Lighting, Tri-level (Corridor Function), Tunable White Control |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Human Centric Lightning (HCL): | Ja |
Inbetriebnahmemethoden: | App & Web (Bluetooth) |
Installationstyp: | Built-in, Conduit screws, Plug & Play Sensor Heads |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Lens type: | High-bay |
Maximale Montagehöhe: | 15.0000 m |
Montagehöhe: | High-bay |
Product height: | 33.9000 mm |
Produktlänge: | 63.0000 mm |
Produkttiefe: | 40.5000 mm |
Schutzart: | IP20 |
Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
Tri-level (Korridorfunktion): | Ja |
Umgebungstemperatur: | 55 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | DC |
Warming-up: | 20 s |
Zhaga: | No |
