HIR02/AA
PIR Lowbay | Tri-level dimming | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Tri-level dimming with photocell
- User-Friendly: With one-key commissioning via IR controller
ANWENDUNGEN
- Adjustable angle detection
- Corridor, Hallway
- Classrooms, Offices
Produktinformationen "HIR02/AA"

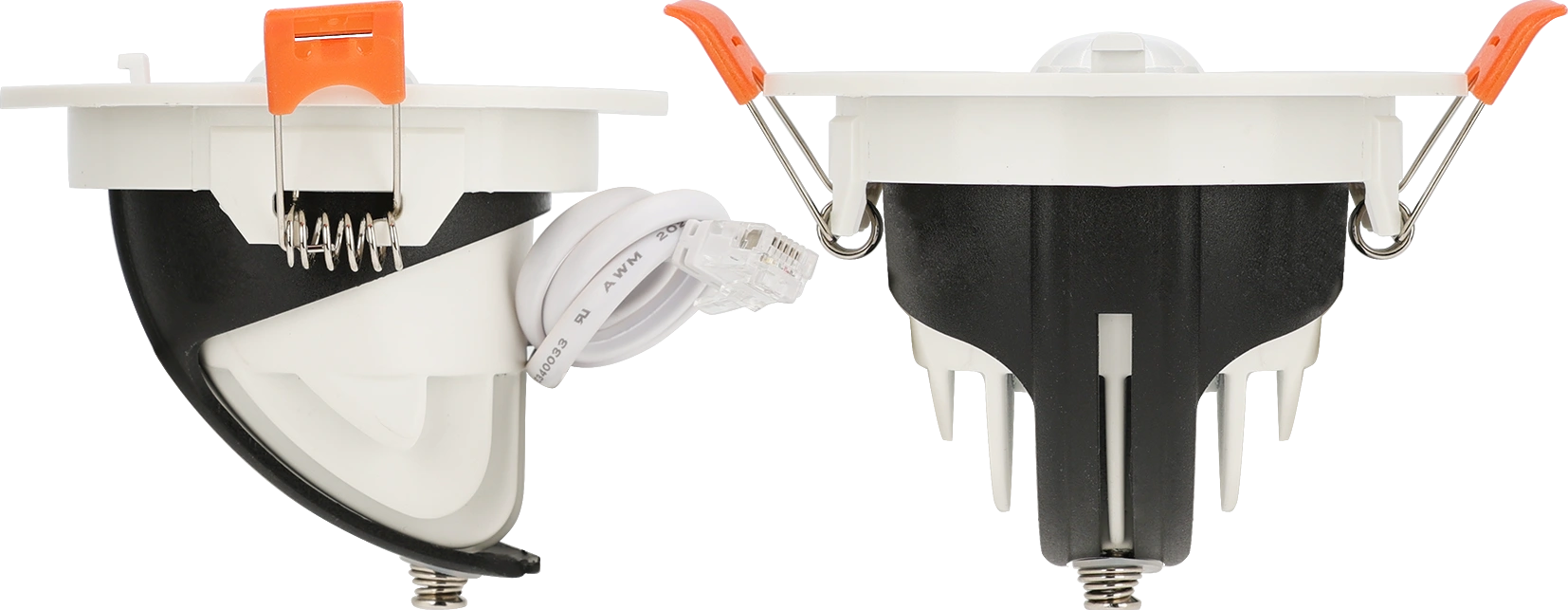

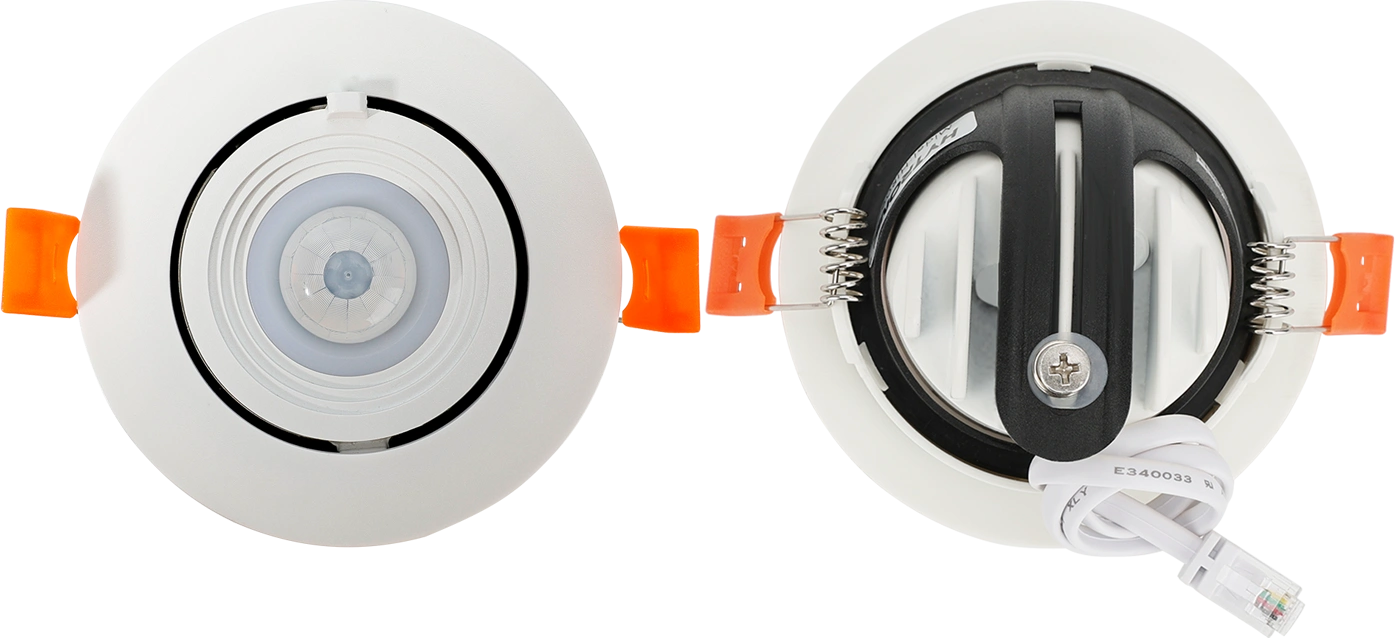

This PIR sensor features adjustable angle design and passive infrared (PIR) detection. It supports tri-level dimming, includes a photocell for daylight sensing, and offers active lux switching capabilities. Suitable for installations up to 3m high with a detection range up to Ø = 18m, sensor settings can be adjusted via the HRC-05 handset.
| Anschlusstyp: | RJ12 |
|---|---|
| Betriebsspannung: | 5 VDC |
| Daylight Harvest: | Ja |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 18×3 |
| Features: | Adjustable Angle, Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Plug & Play Sensor Heads |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Montagehöhe: | Low-bay |
| Product height: | 30.4000 mm |
| Produktlänge: | 90.0000 mm |
| Produkttiefe: | 90.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
| Zhaga: | No |
