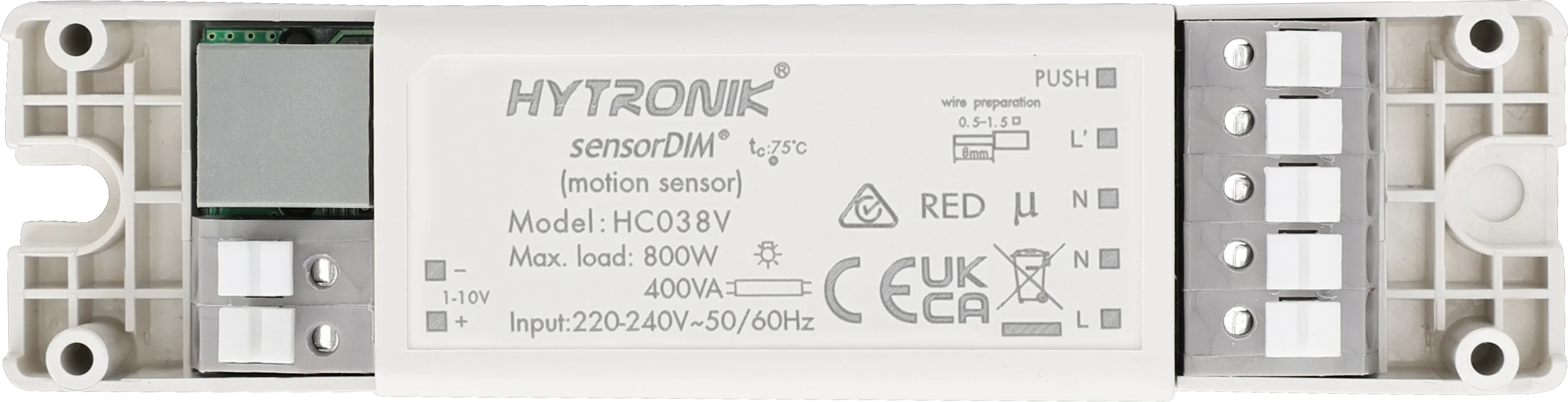

HC038V
Control body | 1-10V | Attachable sensor heads
Vorteile
- Adaptable: Small control unit with strain relief
- Versatile: Choose over many sensors options

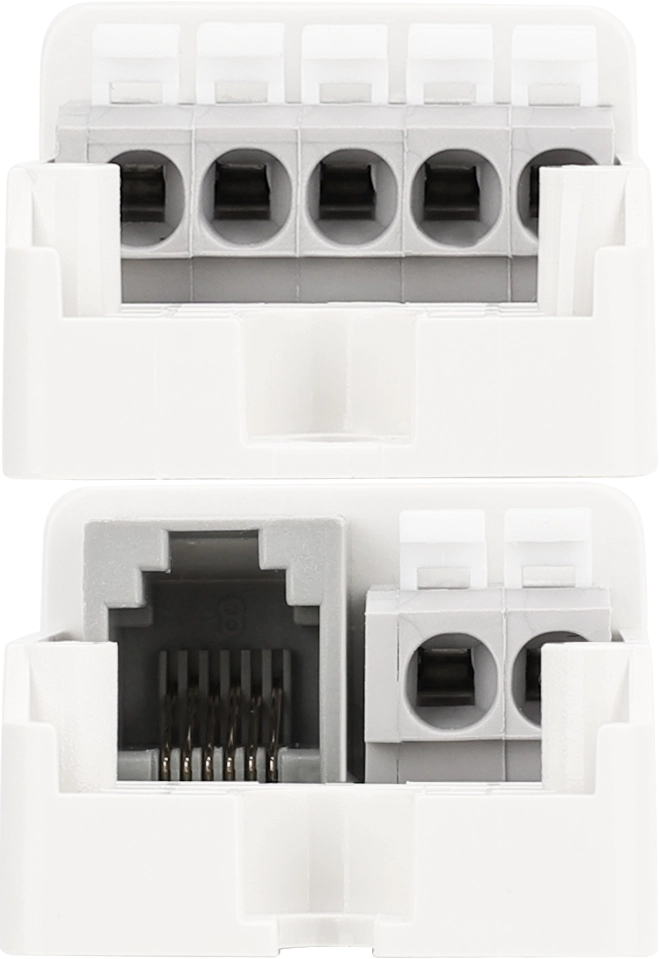

- Effcient: Loop-in and loop-out terminals for installation
ANWENDUNGEN
- Master luminaire with sensor
- Classrooms
- Offices
Produktinformationen "HC038V"
HC038V is a 1-10V control base whereas HCD038 and HCD038/P are
DALI control bases with different DALI power supply built in. They work with a

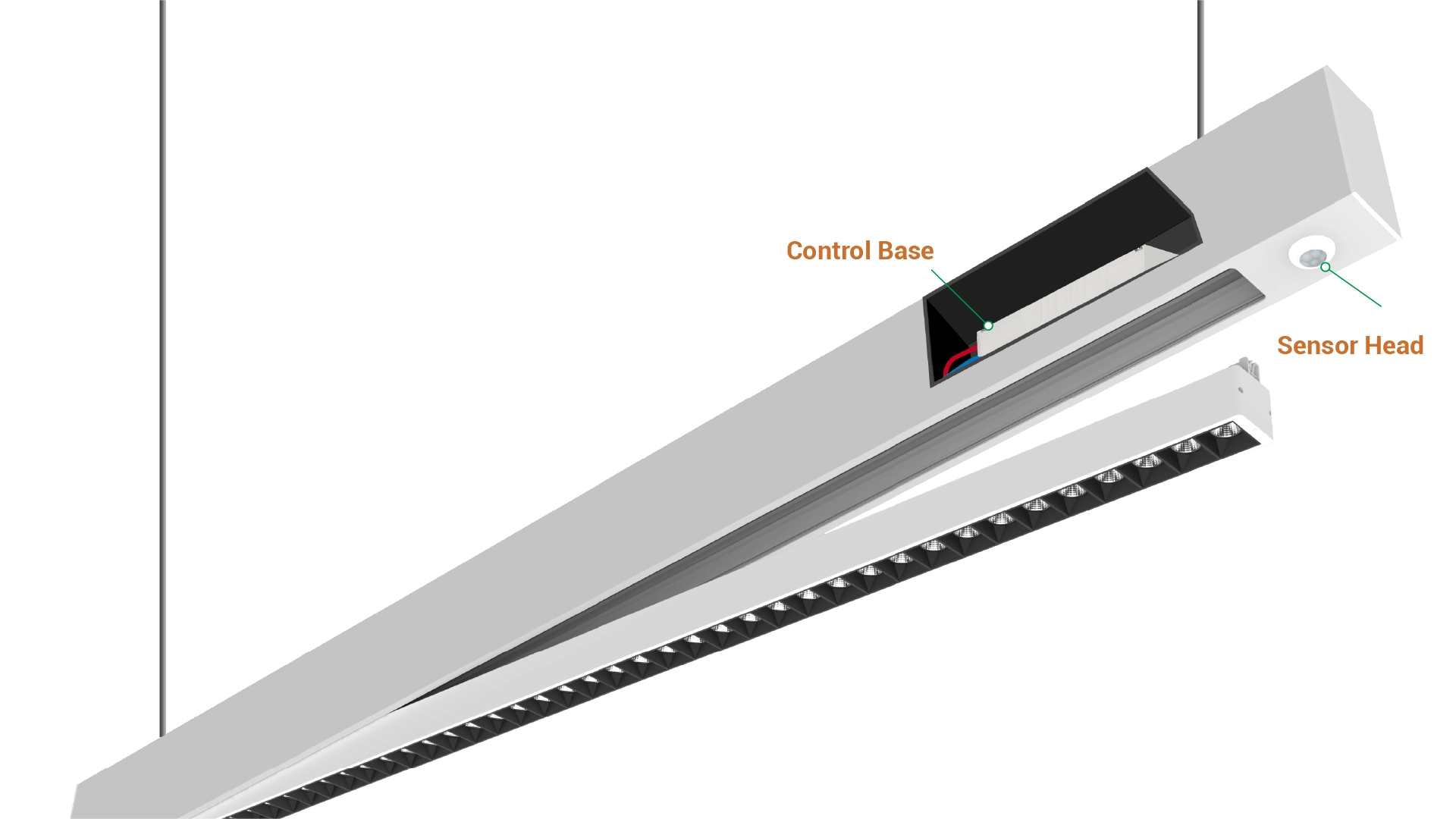

wide range of microwave and PIR sensor heads. They are ideal for metal
luminaire designs because the Bluetooth module is placed inside the sensor
heads instead of control base, so that the Bluetooth signal transmission is
viable.
Anschlusstyp: | Standard 2 cables |
---|---|
Ausgangsschnittstelle: | Relais On/Off |
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
Bluetooth Technologie: | Nordic nRF52832 |
Detection angle: | 360° |
Features: | Daylight Harvest |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Human Centric Lightning (HCL): | Ja |
Inbetriebnahmemethoden: | DIP-switch |
Installationstyp: | Built-in |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Product height: | 21.0000 mm |
Produktlänge: | 120.0000 mm |
Produkttiefe: | 30.0000 mm |
Schutzart: | IP20 |
Tri-level (Korridorfunktion): | Ja |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | AC |
Warming-up: | 20 s |
Zhaga: | No |
