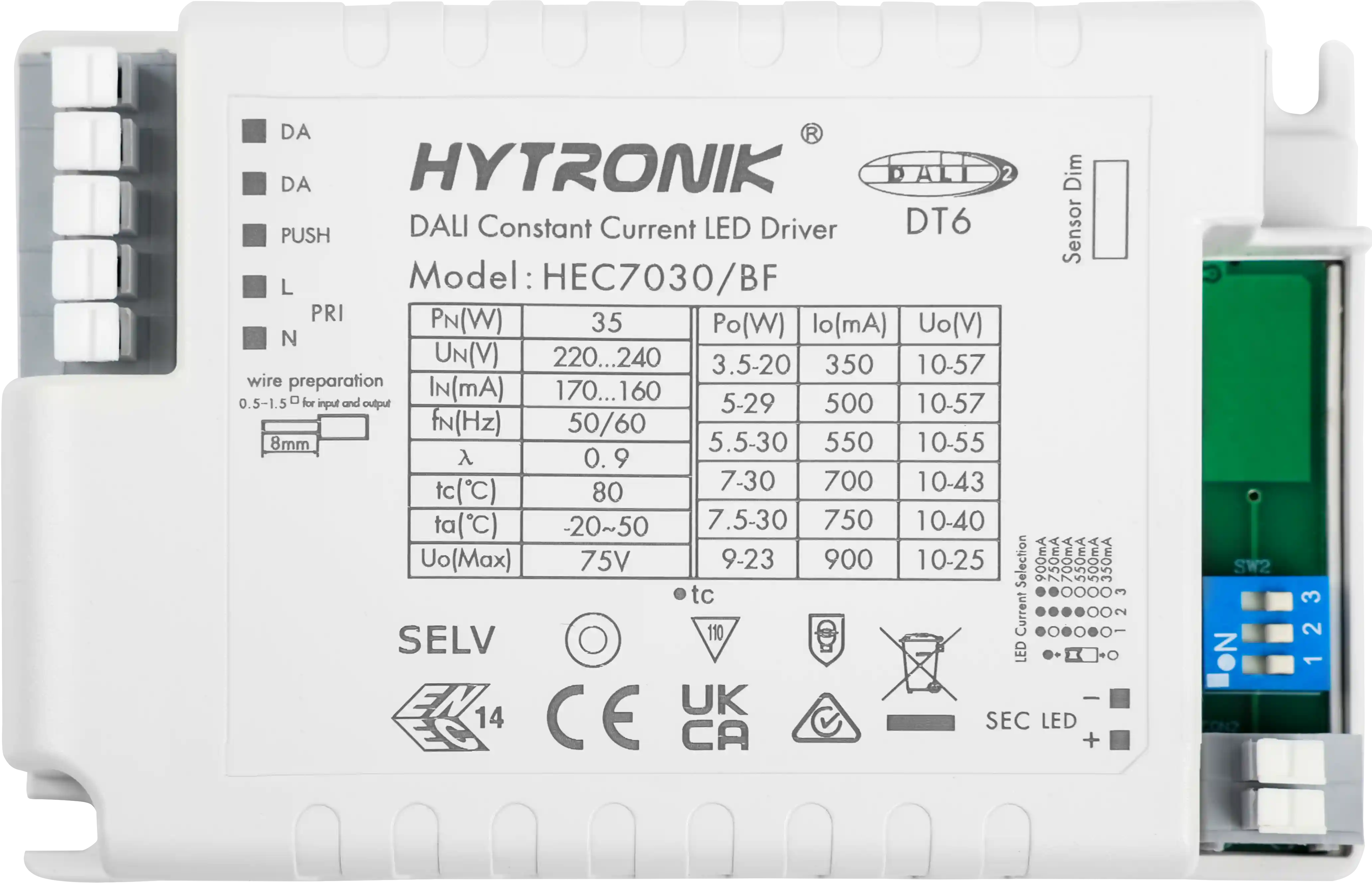

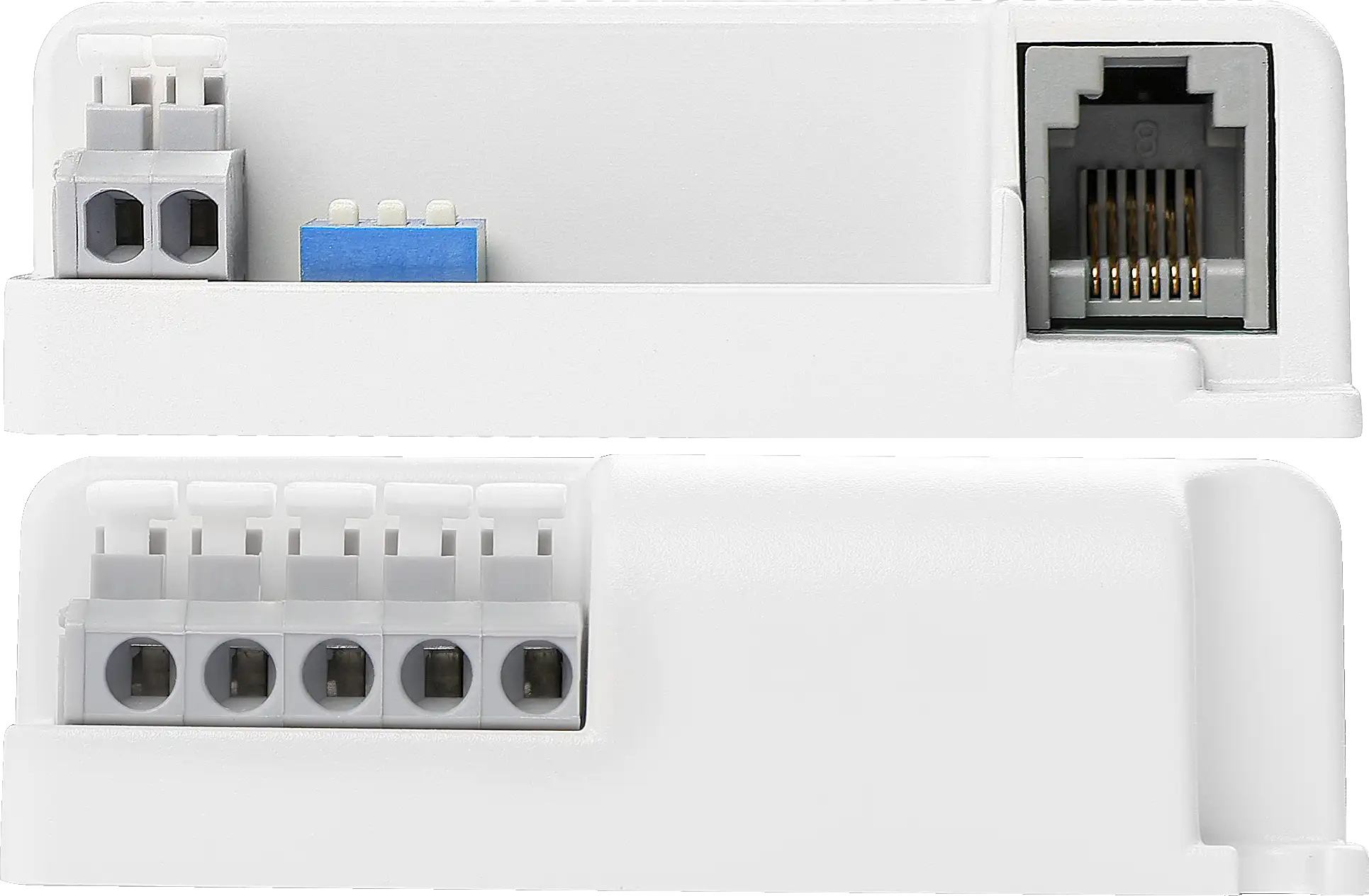

HEC7030/BF
LED Driver 30W Dimmable | CC | DIP-switch setting
Vorteile
- Compact: LED Driver with Sensor 2-in-1
- Simple: Daylight and Tri-level control (corridor function)
- Easy setting: via dip-switch and/or IR-Controller
ANWENDUNGEN
- Luminaire Built-in integration
- Offices
- Classrooms
Produktinformationen "HEC7030/BF"

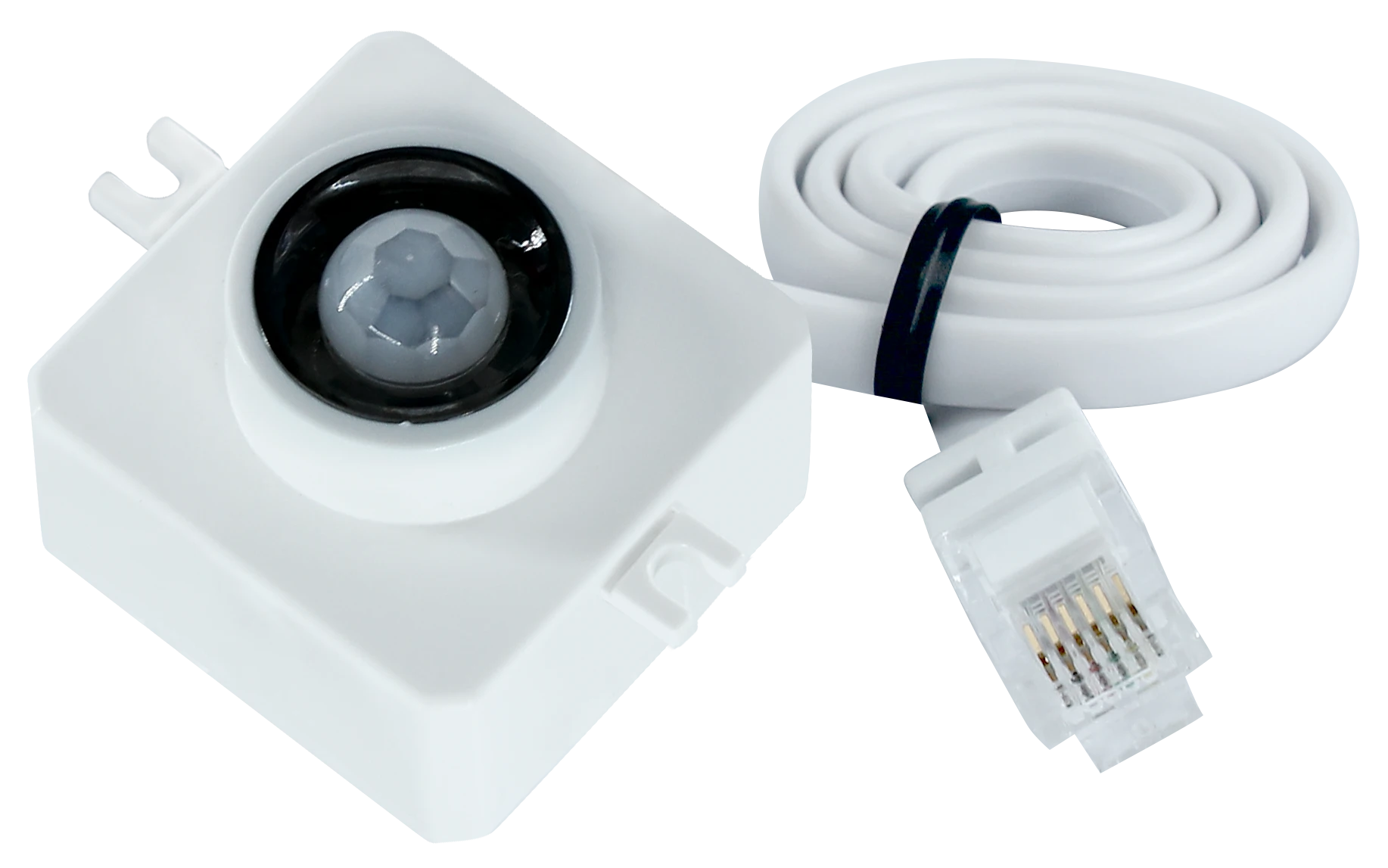

HEC7030/BF is DALI-2 DT6 dimmable LED driver + Bluetooth sensor head in detached design with maximum power output of 30W. Such detached design is flexible with optional motion detection for lighting manufacturers; with Bluetooth sensor head unattached, HEC7030/BF is solely a DALI-2 DT6 LED driver; with Bluetooth sensor head attached, it becomes a LED driver + sensor combo. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects. Meanwhile, simple device setup and commissioning can be done via Koolmesh app
| Ausgangsleistung: | 3.5W~23W |
|---|---|
| Ausgangsspannung: | 10-57V |
| Befestigungsloch: | 4.1000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| DALI Gerätetyp: | DT6 |
| Daylight Harvest: | Ja |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Ja |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Product height: | 22.2000 mm |
| Produktlänge: | 108.0000 mm |
| Produkttiefe: | 69.0000 mm |
| Schutzart: | IP20 |
| Taster Eingänge: | 1 |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Wirkungsgrad: | 86 % |
| Zhaga: | No |
