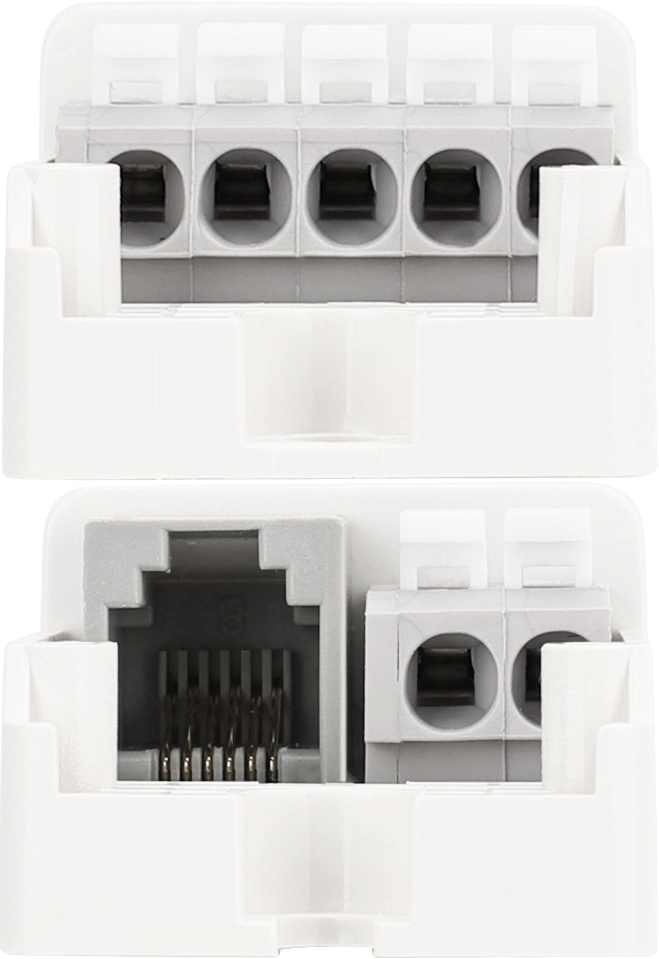

HC438V
Control body | 1-10V Dimming | Attachable sensor heads
Vorteile
- Adaptable: Small control unit with strain relief
- Versatile: Suitable for various sensor head options via Plug’n’Play
- Easy setting: 1 switch-Dim (PUSH) terminal
ANWENDUNGEN
- Master luminaire with sensor
- School/Classrooms
- Office/Commercial Lighting
Produktinformationen "HC438V"

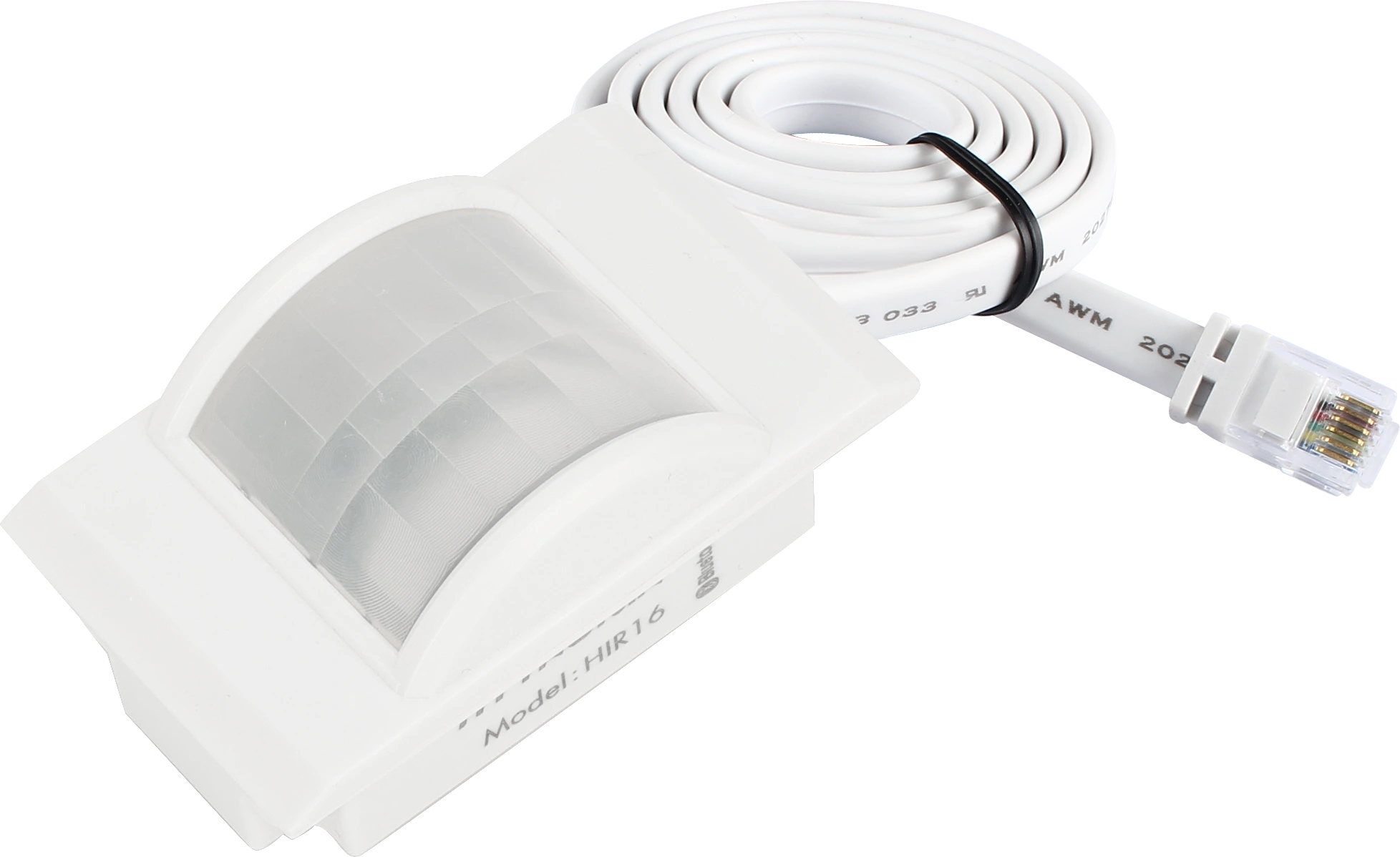

HC438V is a 1-10V control bas. It work with a wide range of
microwave and PIR sensor heads. They are ideal for metal luminaire designs
because the Bluetooth module is placed inside the sensor heads instead of
control base, so that the Bluetooth signal transmission is viable. They are
suitable for any typical indoor applications such as office, classroom, car
park, warehouse and other commercial/industrial areas. With Bluetooth
wireless mesh networking, it makes communication much easier without any
hardwiring, which eventually adds values to luminaires and saves costs for
projects.
| Anschlusstyp: | RJ12 |
|---|---|
| Ausgangsschnittstelle: | 1-10V |
| Betriebsspannung: | 120 - 277 VAC |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Built-in |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Product height: | 21.0000 mm |
| Produktlänge: | 120.0000 mm |
| Produkttiefe: | 30.0000 mm |
| Schutzart: | IP20 |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
