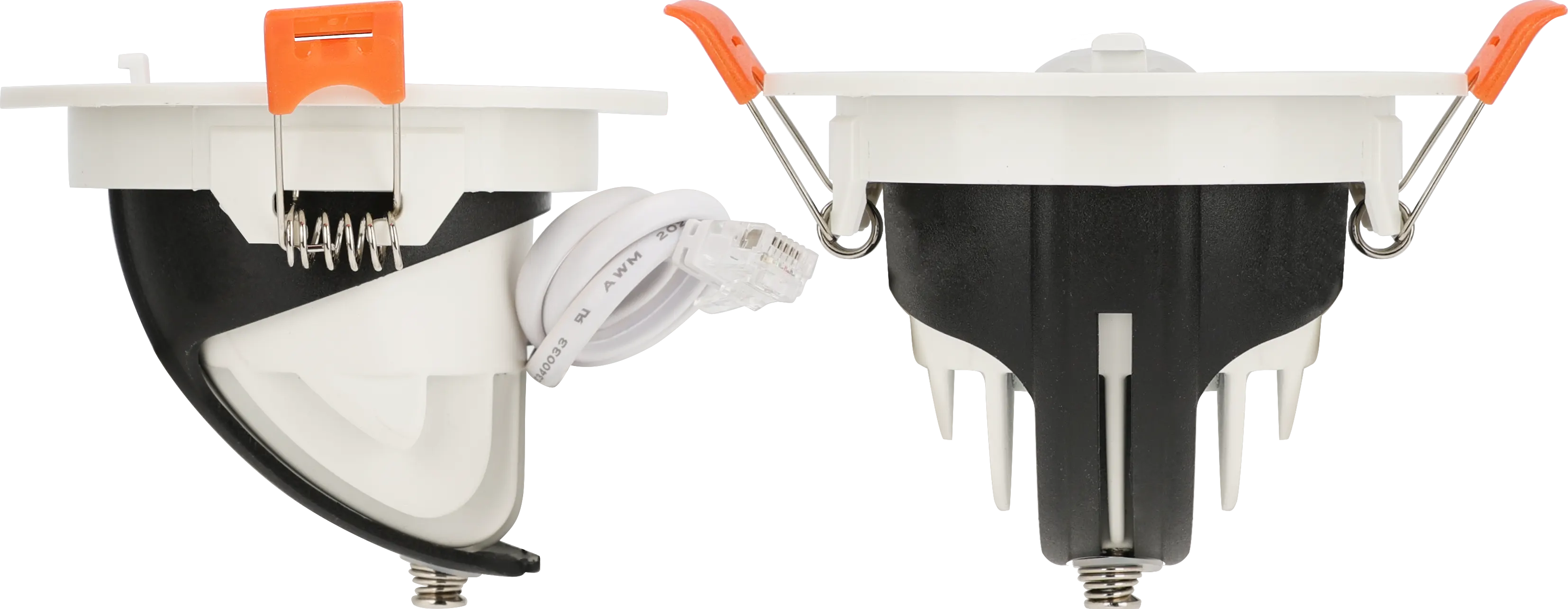

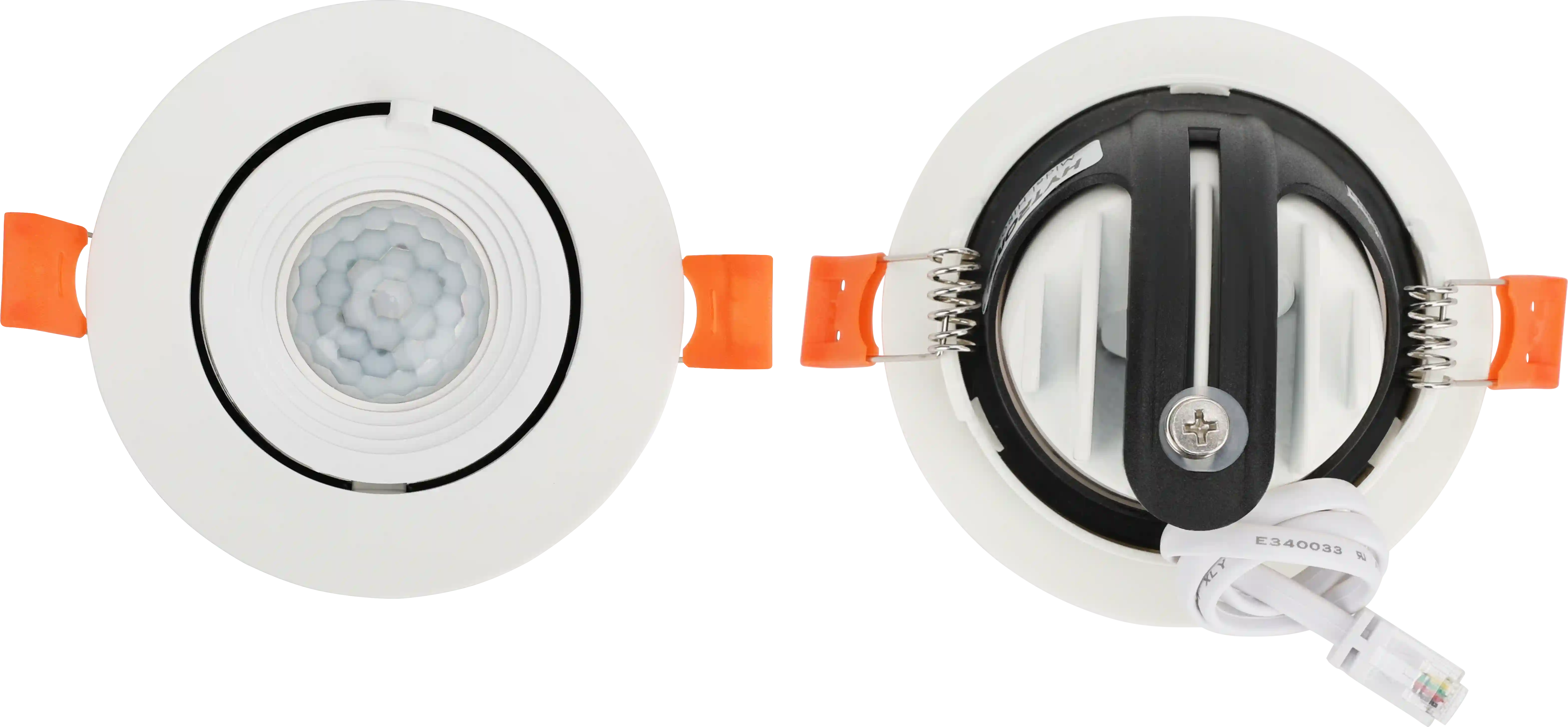

HIR13/AA
PIR Highbay | Adjustable Angle | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Corridors / Walkways application
- Commercial Lighting
- Offices/Industry
Produktinformationen "HIR13/AA"

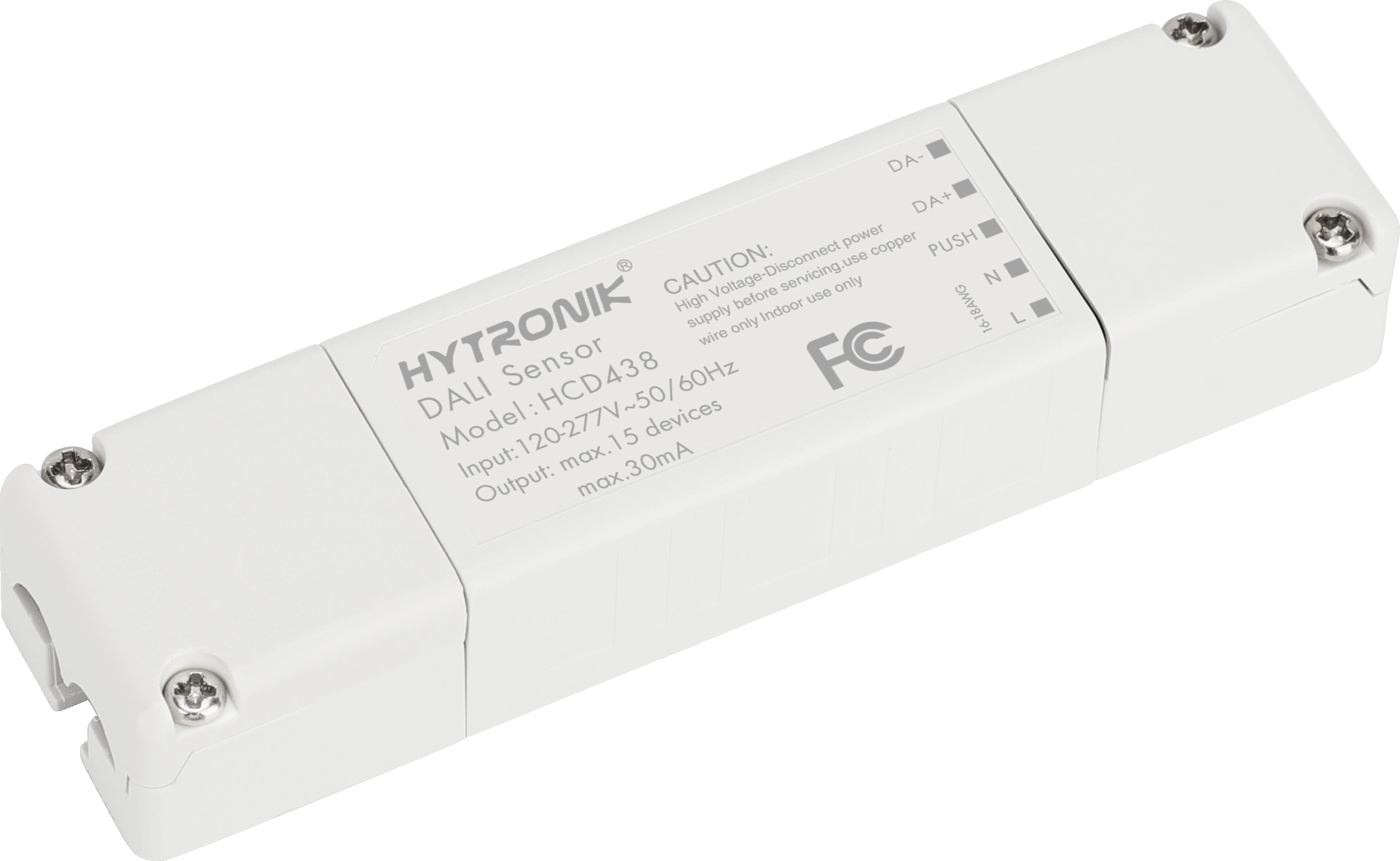

HIR13/AA is a PIR sensor head and compatible with the Daylight Harverst. It can work with the linear shaped control base such as HCD038/P and HCD038. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
Anschlusstyp: | Standard 2 cables |
---|---|
Befestigungsloch: | 90.0000 mm |
Betriebsspannung: | 5 VDC |
Daylight Harvest: | Ja |
Detection angle: | 360° |
Detektionsverfahren: | Passive Infrared (PIR) |
Erfassungsbereich (DxH): | 24x15 |
Features: | Adjustable Angle, Daylight Harvest, Human Centric Lighting, Tri-level (Corridor Function) |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Human Centric Lightning (HCL): | Ja |
Inbetriebnahmemethoden: | App & Web (Bluetooth) |
Installationstyp: | Built-in, Plug & Play Sensor Heads |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Montagehöhe: | Mid-bay |
Product height: | 30.4000 mm |
Produktlänge: | 90.0000 mm |
Produkttiefe: | 90.0000 mm |
Schutzart: | IP20 |
Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
Tri-level (Korridorfunktion): | Ja |
Umgebungstemperatur: | 70 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | DC |
Warming-up: | 20 s |
Zhaga: | No |
