HCD038/P
Control body | DALI with PSU | Attachable sensor heads
Vorteile
- Adaptable: Small control unit with strain relief
- Versatile: Many sensor options for DALI control
- Flexible: 2 Push inputs for fiexible manual control
ANWENDUNGEN
- Master luminaire with sensor
- Classrooms
- Offices
Produktinformationen "HCD038/P"

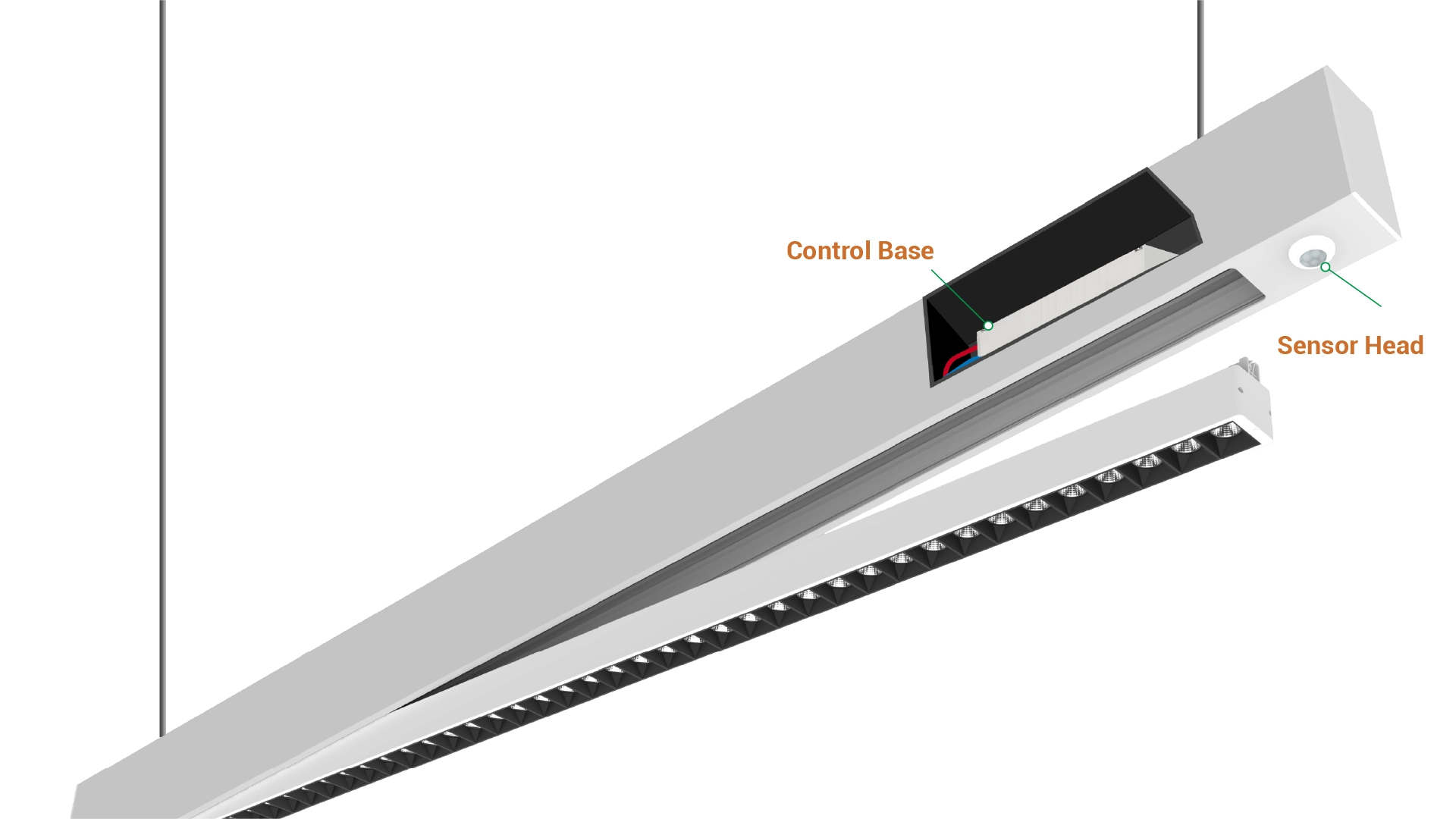

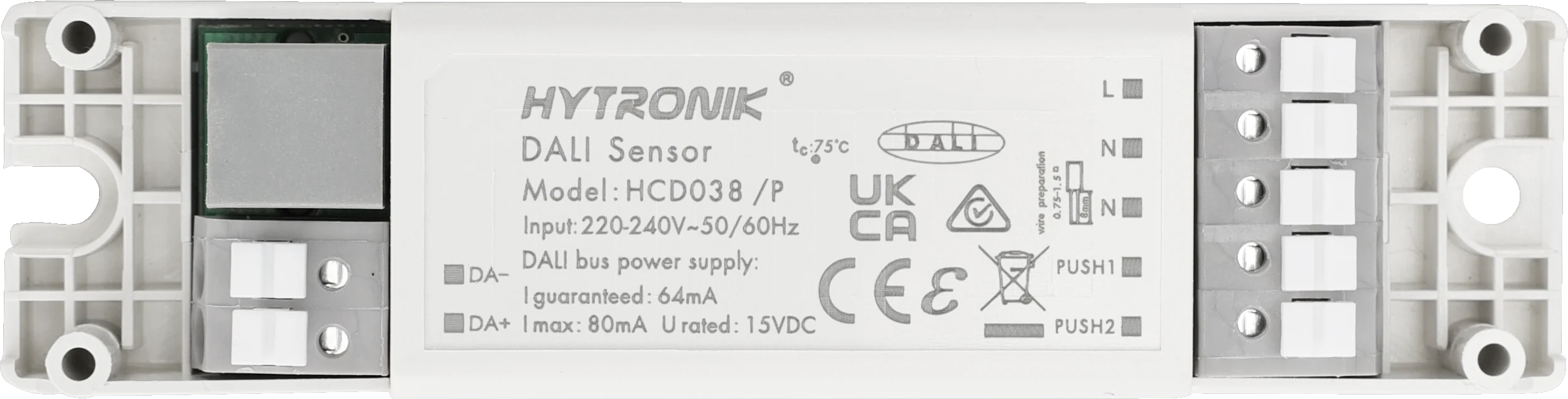

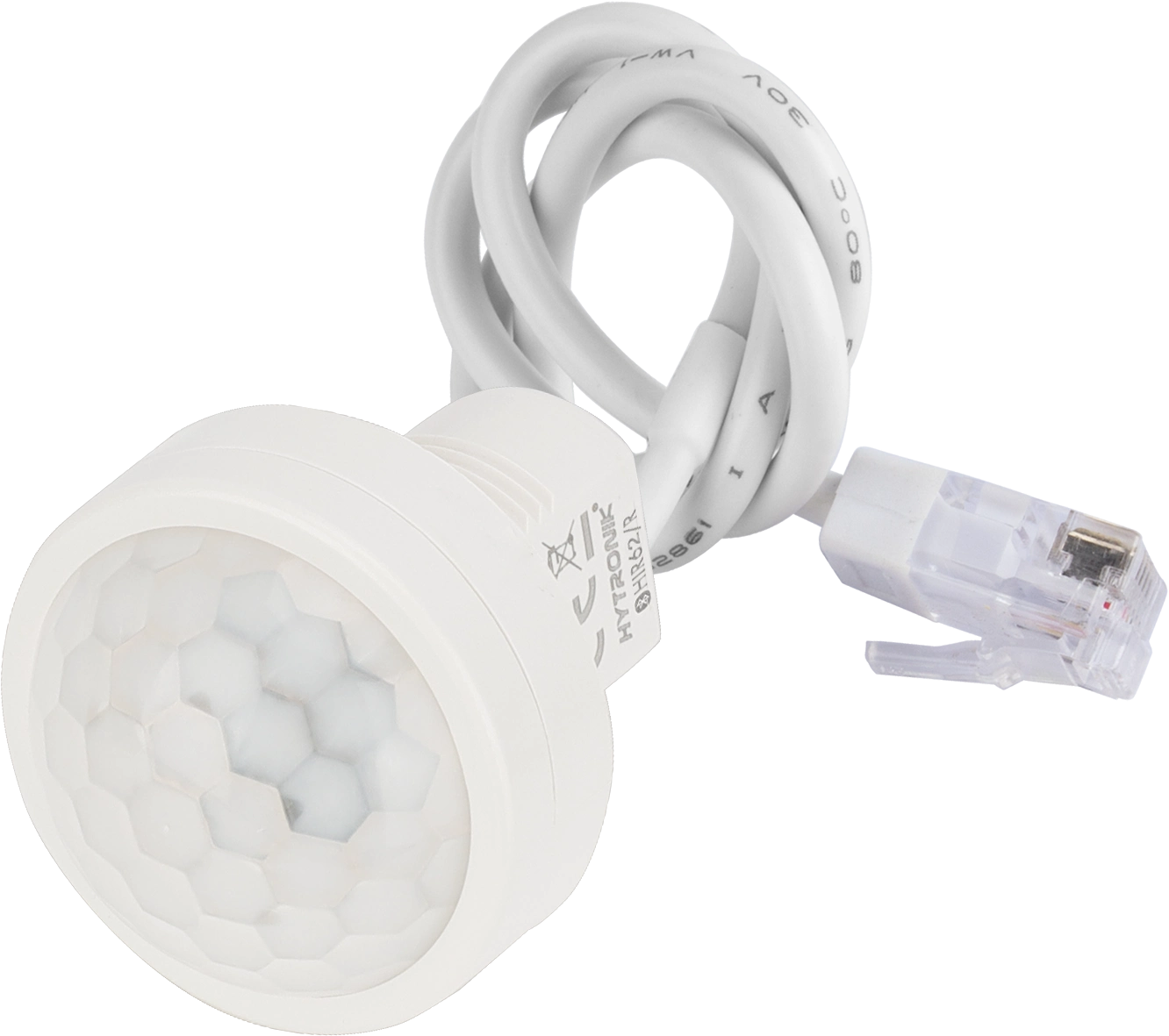

HCD038/P features integrated DALI control with built-in DALI power supply, compatible with various microwave and PIR sensor heads. Designed for metal luminaire applications, it optimizes Bluetooth signal transmission by housing the Bluetooth module inside sensor heads. Setup and commissioning are straightforward via a Koolmesh app.

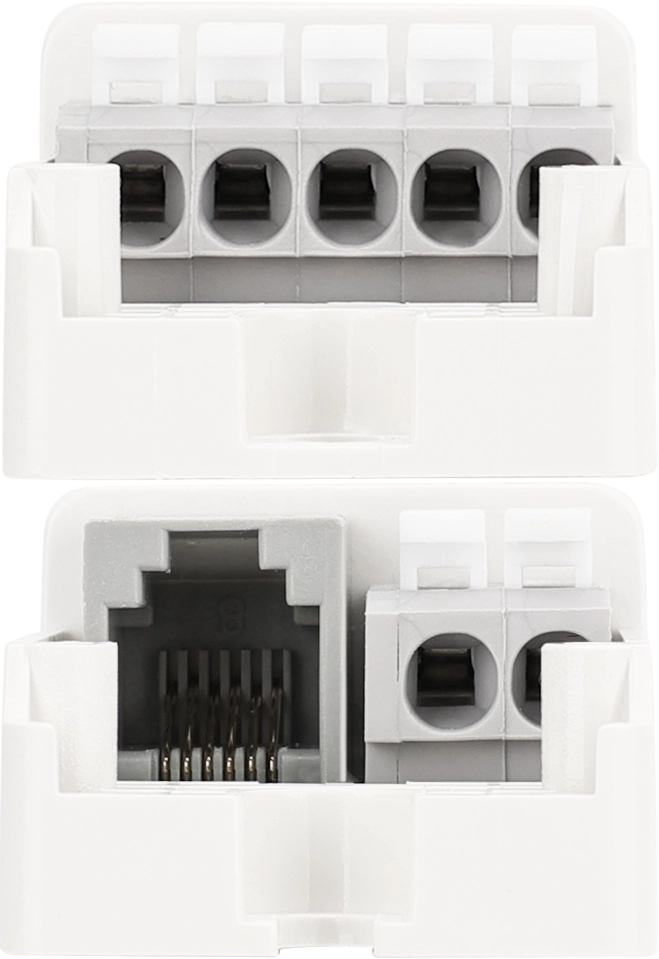

| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | DALI & DALI-2 |
| Befestigungsloch: | 4.5000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Erforderlicher DALI-Strom: | 80.0000 mA |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Built-in |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Product height: | 21.0000 mm |
| Produktlänge: | 120.0000 mm |
| Produkttiefe: | 30.0000 mm |
| Schutzart: | IP20 |
| Taster Eingänge: | 2 |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 55 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
