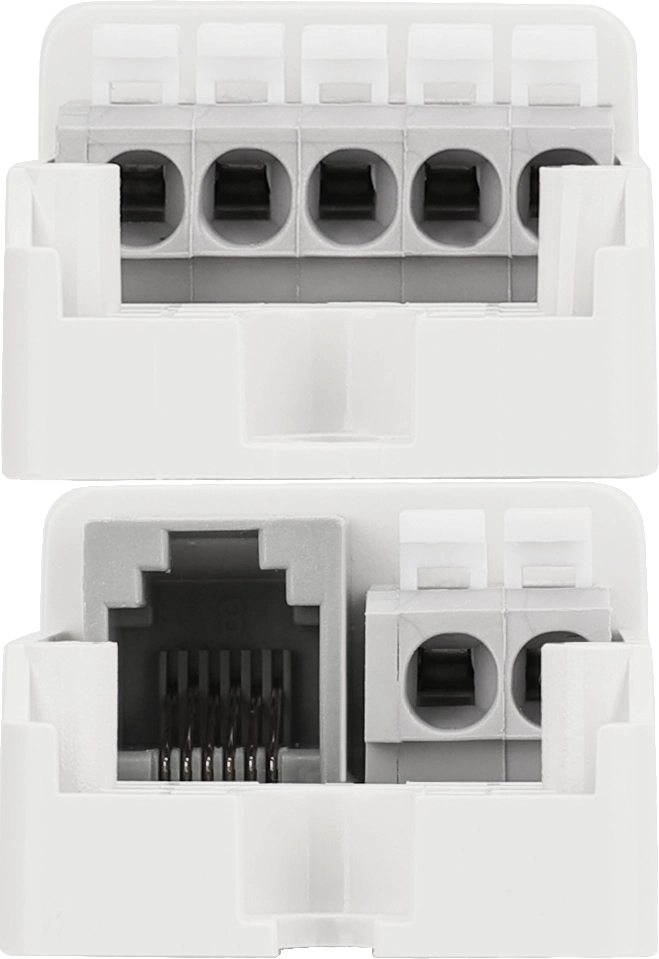

HCD438
Control body | DALI with PSU | Attachable sensor heads
FEATURES
- Adaptable: Small control unit with strain relief
- Versatile: Many sensor options for DALI control
- Support: available to control DT8 LED drivers
ANWENDUNGEN
- Master luminaire with sensor
- Classrooms
- Offices
Produktinformationen "HCD438"

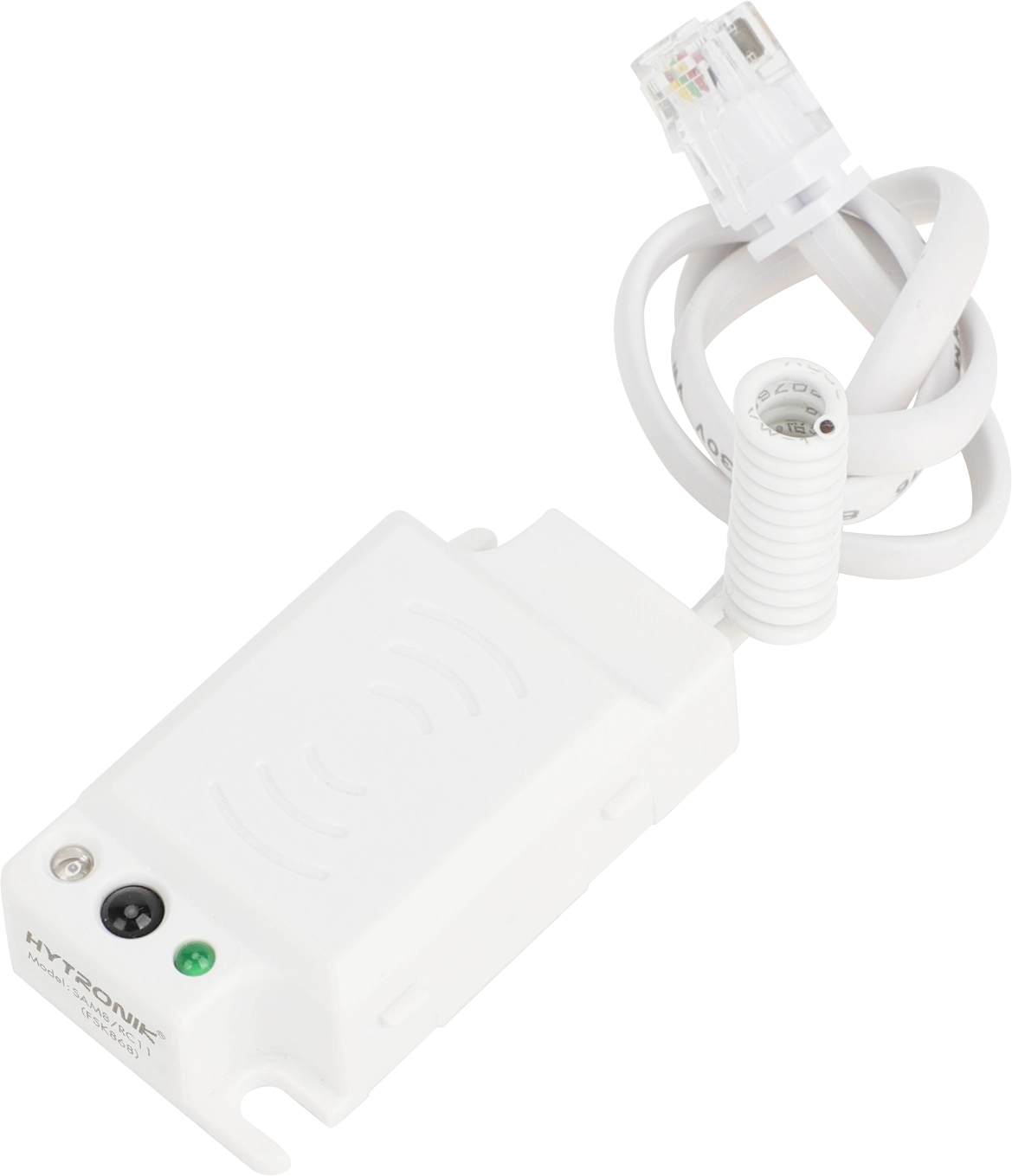

HCD438 is a DALI control base with 30mA DALI power supply built in. They work with a wide range of microwave and PIR sensor heads. It is ideal for metal luminaire designs because the Bluetooth module is placed inside the sensor heads instead of control base. It is suitable for any typical indoor applications.
| Anschlusstyp: | 2-adrig |
|---|---|
| Betriebsspannung: | 120-277 VAC |
| Dimm-Steuersignal: | DALI/DALI-2 |
| Eigenschaften: | Korridorfunktion, Tageslichtsteuerung |
| Einbauöffnung: | 4.5000 mm |
| Einschwingzeit: | 20 s |
| Human Centric Lightning (HCL): | Ja |
| IP-Schutzart: | IP20 |
| Inbetriebnahme-Methoden: | App & Web (Bluetooth) |
| Installationstyp: | Einbau |
| Korridorfunktion: | Ja |
| Max. Luftfeuchtigkeit: | 90 % |
| Min. Luftfeuchtigkeit: | 20 % |
| Produktbreite: | 30.0000 mm |
| Produktgewicht: | 50.0000 g |
| Produkthöhe: | 21.0000 mm |
| Produktlänge: | 110.5000 mm |
| Spannungsart: | AC |
| Umgebungstemperatur max.: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
Datenblätter
Produktdatenblatt: hcd438.pdf
