HIR13/S
PIR Highbay | Ciradian Rhyhm | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Suface mount installation
- Classrooms
- Offices
Produktinformationen "HIR13/S"

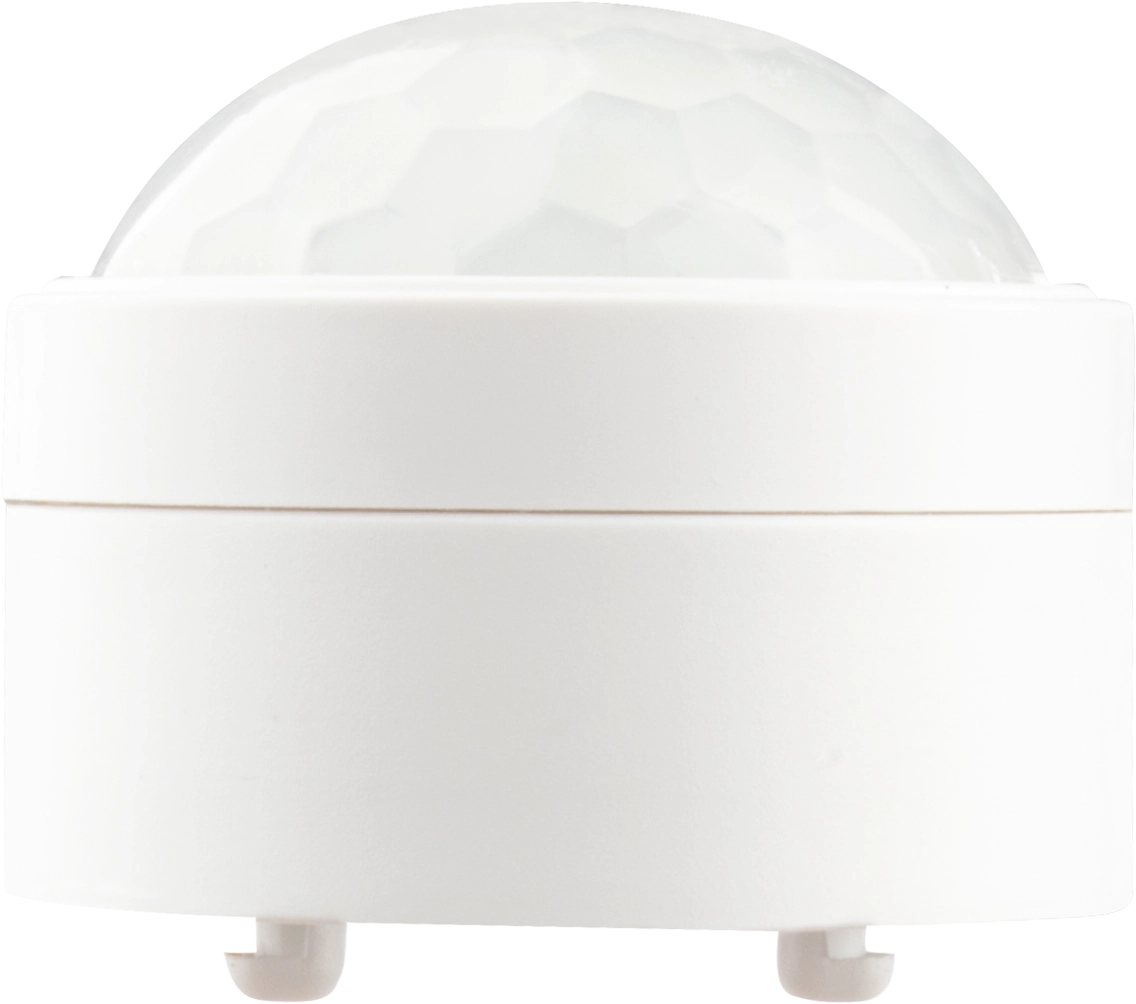

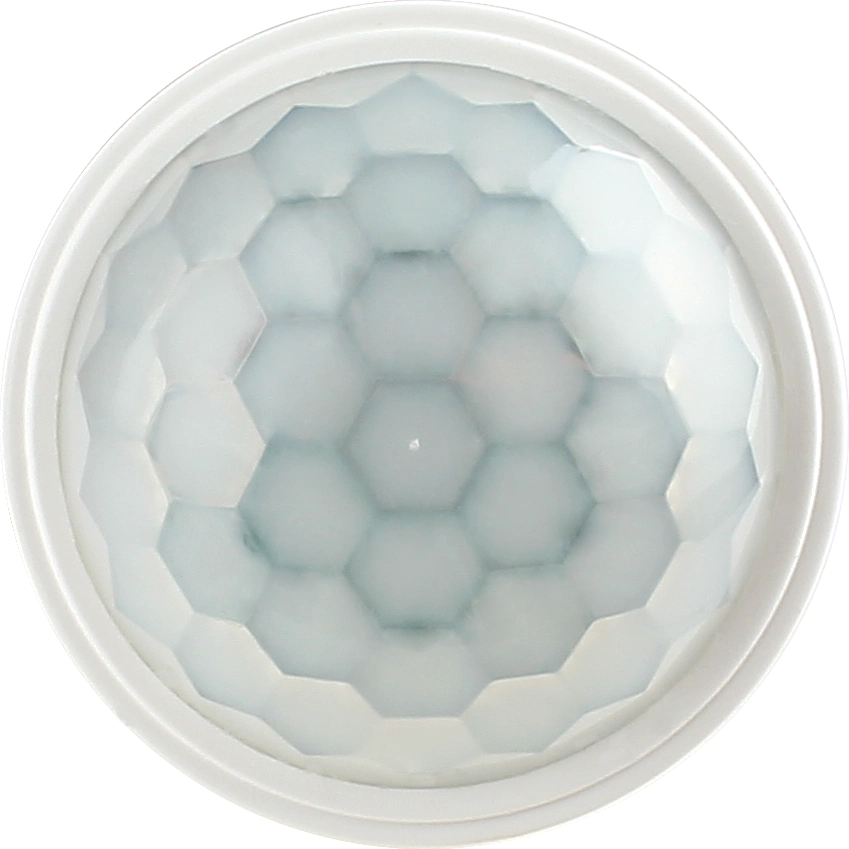

HIR13/S is a PIR sensor head. It can work with the linear shaped control base such as HCD038/P and HCD038. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Befestigungsloch: | 36.3000 mm |
|---|---|
| Betriebsspannung: | 5 VDC |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| Daylight Harvest: | Ja |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 24x15 |
| Features: | Daylight Harvest, Human Centric Lighting, Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Ja |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Built-in, Plug & Play Sensor Heads |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Maximale Montagehöhe: | 15.0000 m |
| Montagehöhe: | High-bay |
| Product height: | 32.6000 mm |
| Produkttiefe: | 36.3000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 55 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
