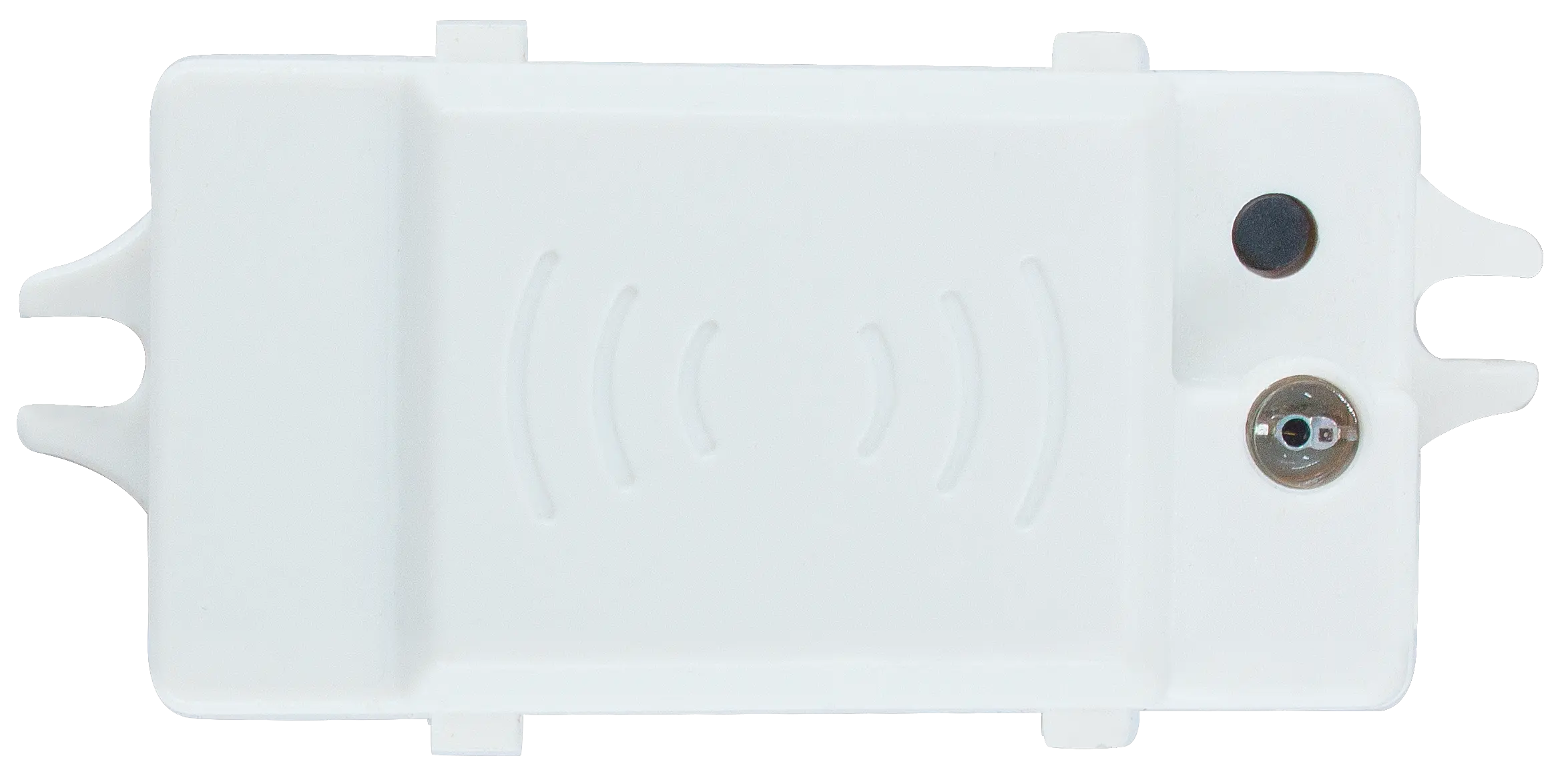

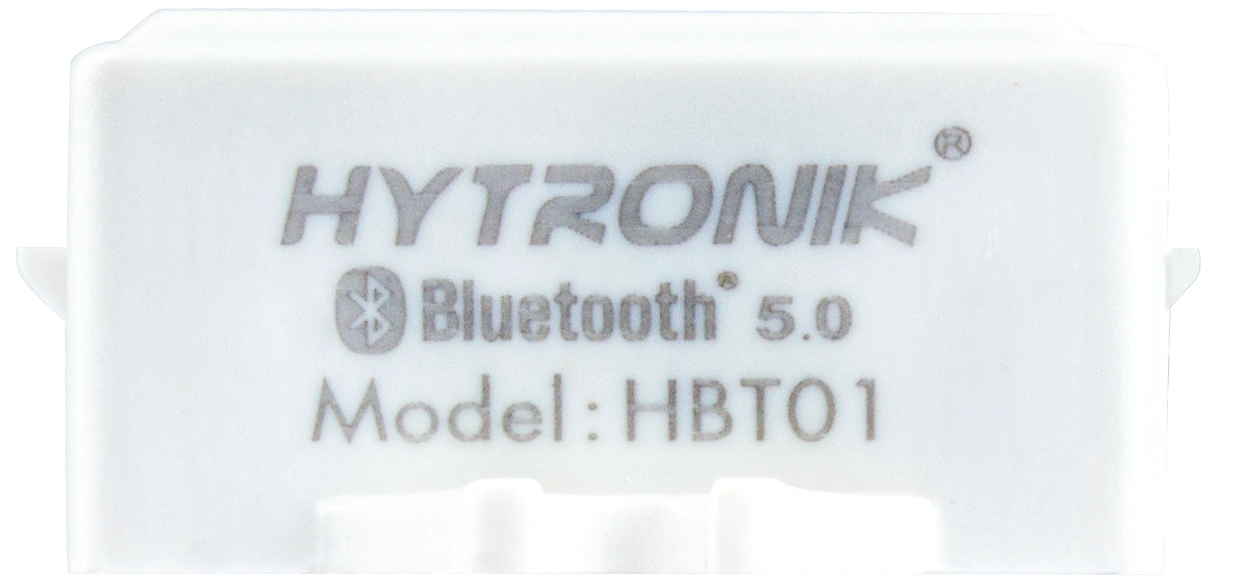

HBT01
HF Lowbay | Photocell Advance | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Support DTB driver with tunable white control
- Master luminaire with sensor
- Classrooms, Offices
Produktinformationen "HBT01"
HBT01 is a HF sensor head and compatible with the Tri-level Dimming、 Daylight Harvest and Human Centric Lighting. It can work with the linear shaped control base such as HC038V、 HCD038、HC438V、 HCD438 and HCD038/P. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ausgangsschnittstelle: | 1-10V |
|---|---|
| Betriebsspannung: | 5 VDC |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Sendeleistung: | 7 dBm |
| Daylight Harvest: | Ja |
| Detection angle: | 30° - 150° |
| Detektionsverfahren: | Microwave (MW) |
| Erfassungsbereich (DxH): | 8x3 |
| Features: | Daylight Harvest, Human Centric Lighting, Tri-level (Corridor Function), Tunable White Control |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Ja |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Plug & Play Sensor Heads |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Montagehöhe: | Low-bay |
| Product height: | 16.0000 mm |
| Produktlänge: | 71.5000 mm |
| Produkttiefe: | 31.7000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Photocell Advance |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 55 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
| Zhaga: | No |
