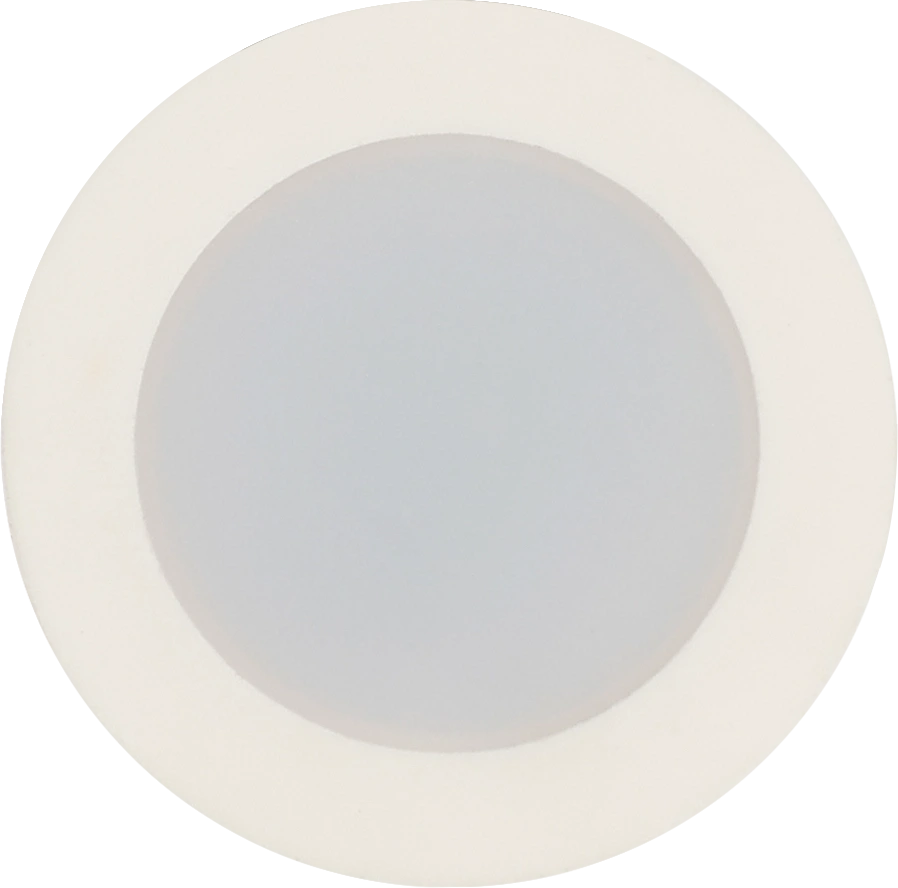

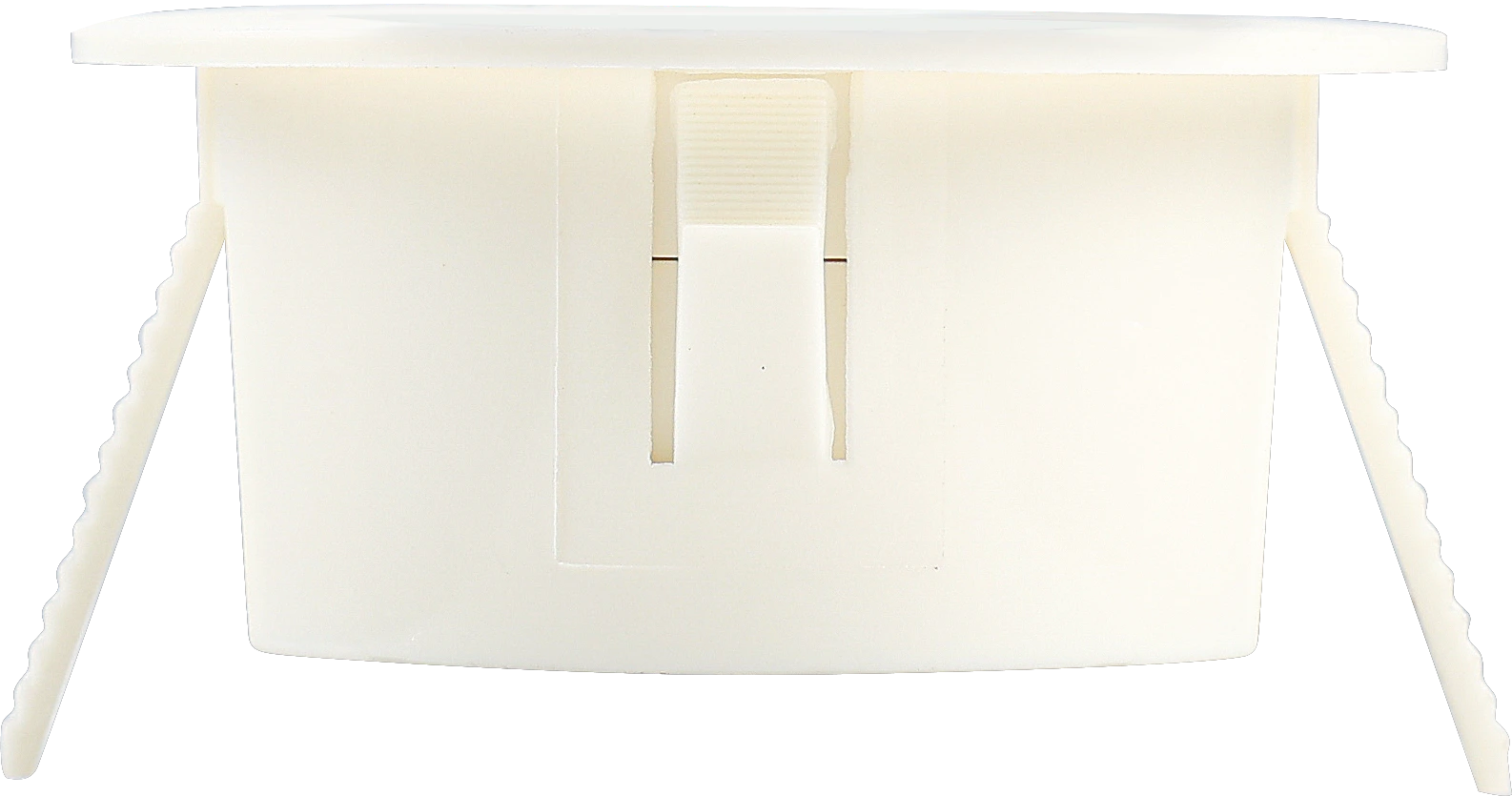

SAM7/FM
HF Lowbay | Tri-level dimming | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Robus HF antenna design against wireless interface
- User-Friendly: With one-key commissioning with IR controller
ANWENDUNGEN
- For luminaires with a height of up to 6m
- School/Classrooms
- Office/Commercial Lighting
Produktinformationen "SAM7/FM"
This sensor features microwave (HF) detection and is designed for flush mount installation. It includes tri-level dimming, a robust HF antenna design to combat wireless interference, photocell functionality, and active lux switching. It supports installation heights up to 6m and detects Ø = 12m. Sensor settings can be adjusted using the HRC-11 handset.
| Anschlusstyp: | RJ12 |
|---|---|
| Betriebsspannung: | 5 VDC |
| Detektionsverfahren: | Microwave (MW) |
| Features: | Tri-level (Corridor Function) |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Plug & Play Sensor Heads |
| Lens type: | Standard Low-bay |
| Montagehöhe: | Low-bay |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Photocell Advance |
| Voltage Type: | DC |
