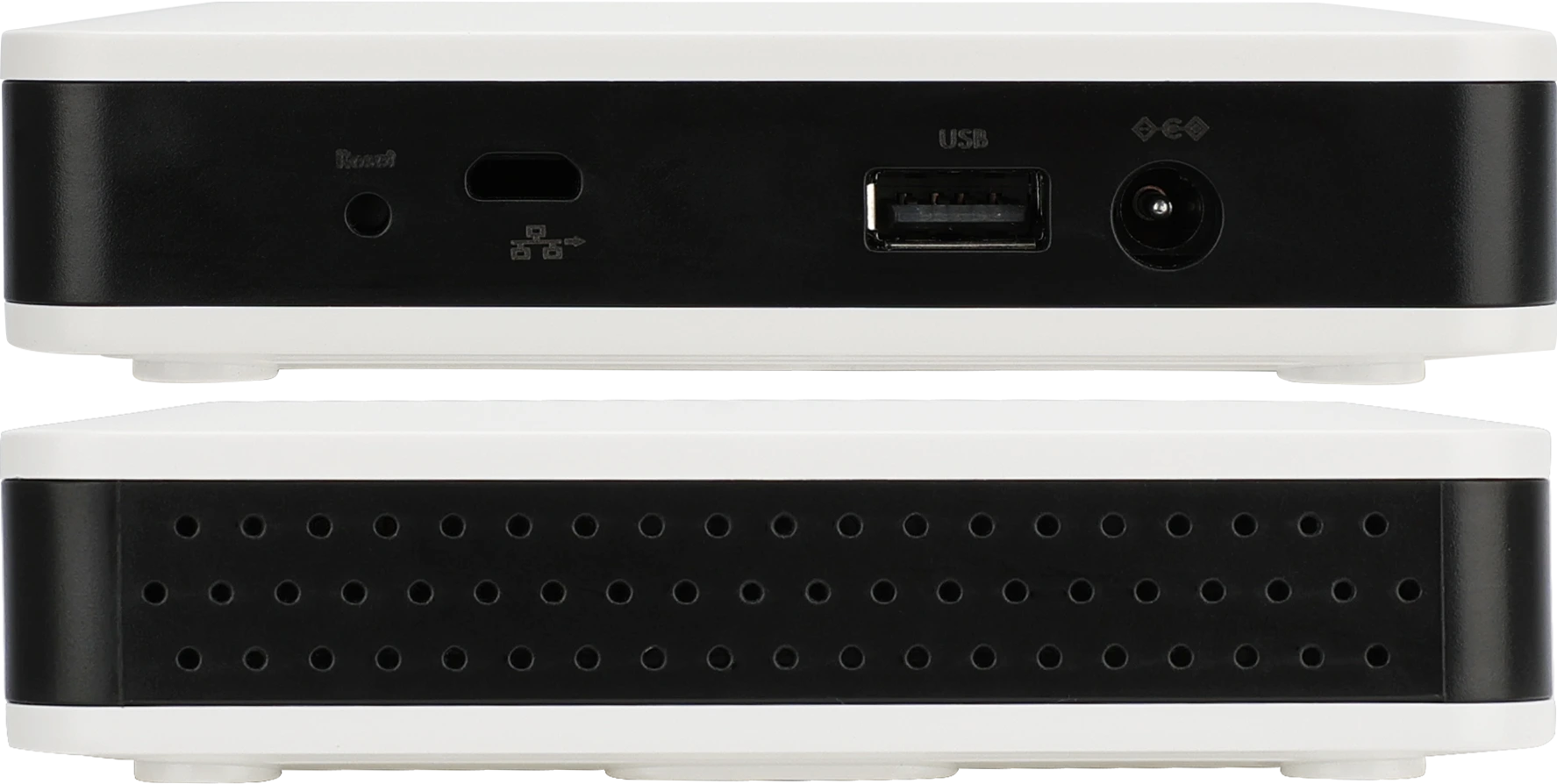

HBGW02/D
Bluetooth Mesh Gateway | Dual-band Wi-Fi | wall/flat surface mounting
FEATURES
- Design: Compact saving installation space
- Scalable: Supporting up to 200 Bluetooth devices for network expansion
- Flexible: Supporting dual-band Wi-Fi and remote data management
ANWENDUNGEN
- Commercial & Office Lighting
- Industrial & Warehouse Logistics
- All types of applications
Produktinformationen "HBGW02/D"
HBGW02/D is a Bluetooth Mesh gateway that utilizes frequency-hopping Bluetooth technology to establish stable one-to-many connections, reducing disconnections in typical applications. It supports up to 200 Bluetooth nodes and can connect via 2.4 GHz and 5 GHz Wi-Fi. This gateway enables remote monitoring, control, and data collection for easier network management and maintenance. Its compact design and versatile connectivity make it an ideal solution for smart lighting systems.
| Betriebsspannung: | 220-240 VAC 50/60 Hz |
|---|---|
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 19 dBm |
| Bluetooth System: | Koolmesh |
| Human Centric Lightning (HCL): | Nein |
| IP-Schutzart: | IP20 |
| Kategorie - Systemkomponenten: | Gateway für Bluetooth-System |
| Korridorfunktion: | Nein |
| Lagertemperatur: | 60 °C |
| Max. Luftfeuchtigkeit: | 80 % |
| Min. Lagertemperatur: | -35 °C |
| Min. Luftfeuchtigkeit: | 20 % |
| Produktbreite: | 120.0000 mm |
| Produktgewicht: | 135.0000 g |
| Produkthöhe: | 30.0000 mm |
| Produktlänge: | 120.0000 mm |
| Produktstatus: | Aktiv / Neu |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -25 °C |
Datenblätter
Produktdatenblatt: hbgw02-d.pdf
