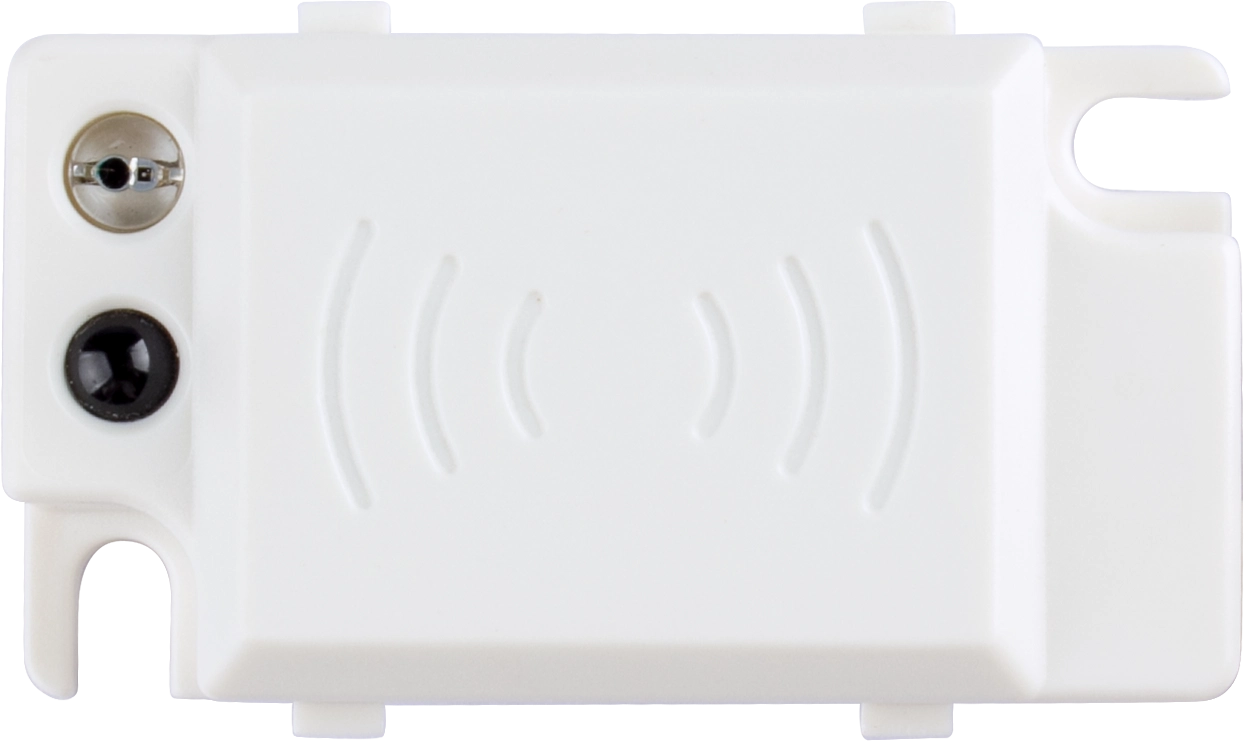

SAM11/I
HF Lowdbay | Photocell Advance | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Rotary switch for quick RF channel pair
- User-Friendly: With one-key commissioning with IR controller
ANWENDUNGEN
- Master luminaire with sensor
- Classrooms
- Offices
Produktinformationen "SAM11/I"
This sensor utilizes microwave (HF) detection and includes tri-level dimming, a robust HF antenna design to minimize wireless interference, and RF pairing capabilities (FSK433MHz or FSK868MHz) for primary and secondary control, with a rotary switch for quick RF channel pairing. It features Photocell AdvanceTM for enhanced functionality, pro-active lux switching, and supports installations up to 6m high with a Ø = 12m detection range. Sensor settings can be adjusted using the HRC-11 handset.
| Anschlusstyp: | RJ12 |
|---|---|
| Befestigungsloch: | 4.1000 mm |
| Betriebsspannung: | 5 VDC |
| Daylight Harvest: | Ja |
| Detection angle: | 30° - 150° |
| Detektionsverfahren: | Microwave (MW) |
| Erfassungsbereich (DxH): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Plug & Play Sensor Heads |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Lens type: | Standard Low-bay |
| Maximale Montagehöhe: | 6.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 16.0000 mm |
| Produktlänge: | 71.0000 mm |
| Produkttiefe: | 31.7000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Photocell Advance |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
