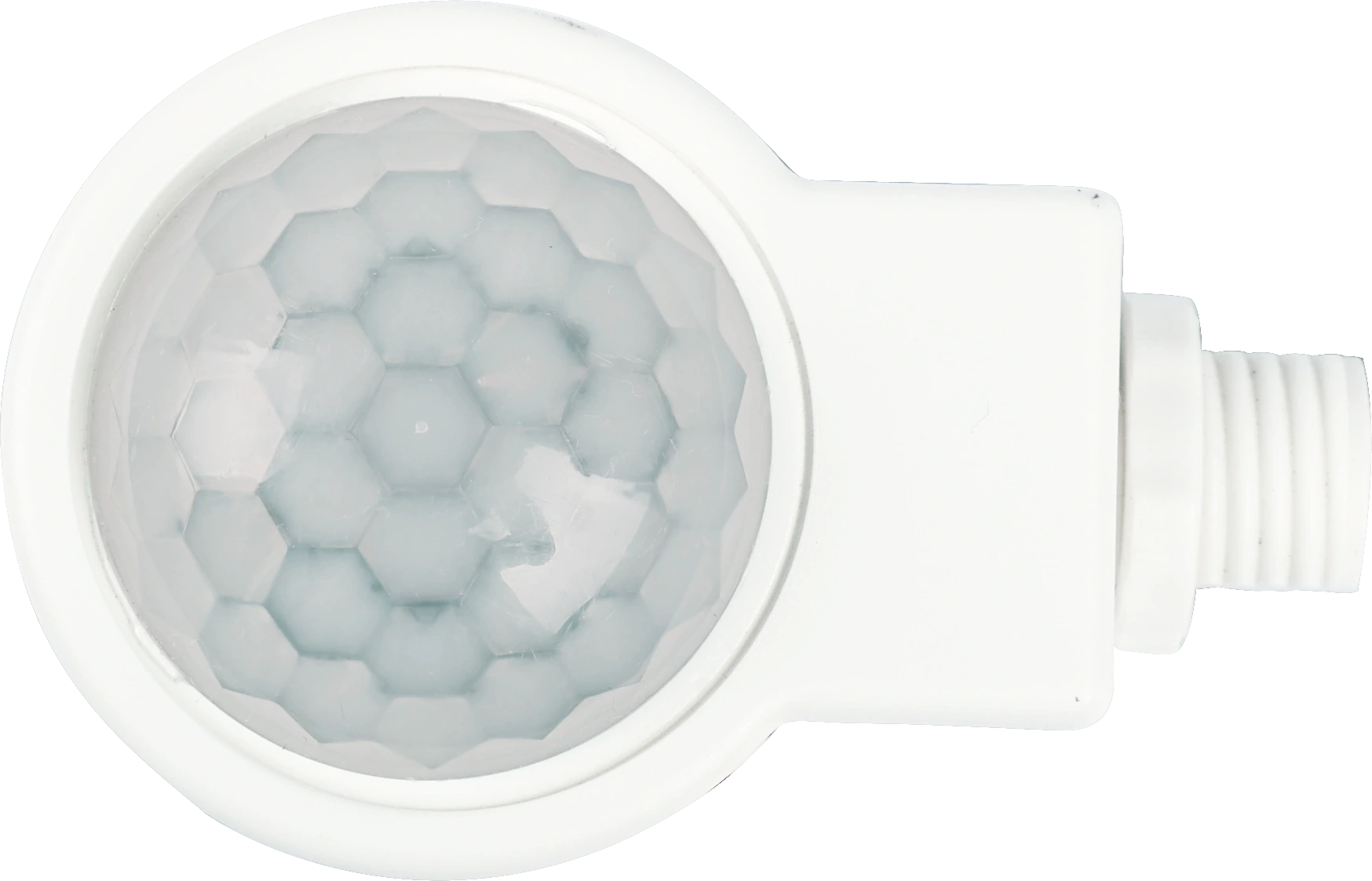

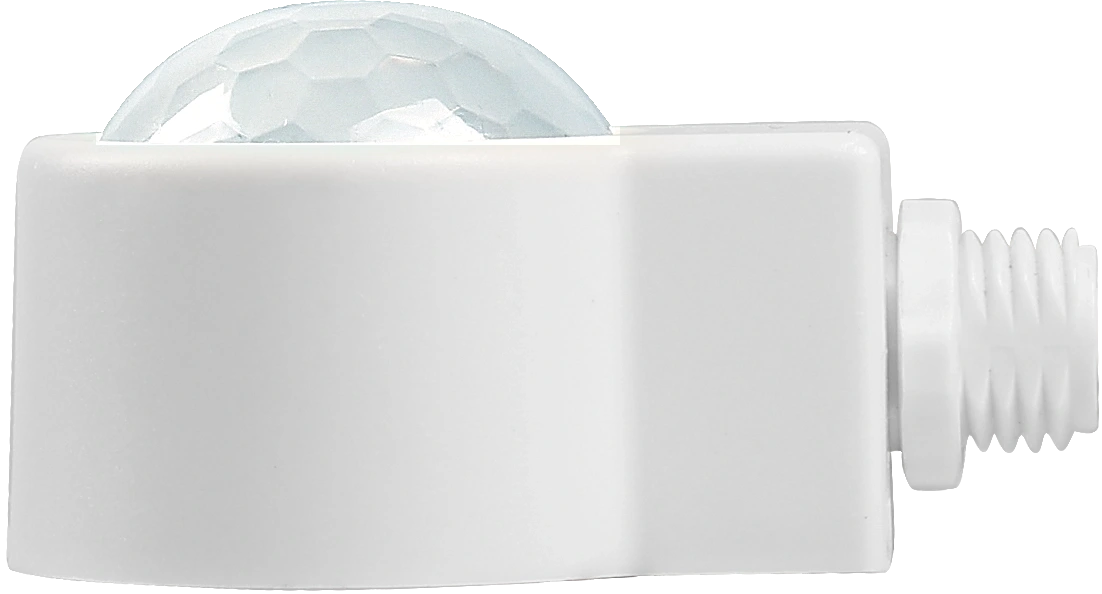

HIR09/C
PIR Highbay | Daylight harvest | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Daylight harvest with Photocell
- User-Friendly: With one-key commissioning with IR controller
ANWENDUNGEN
- Conduit thread: M 13x1.5mm
- Offices
- Classrooms
Produktinformationen "HIR09/C"
HIR09/C is a PIR sensor head and compatible with the Daylight Harverst. It can work with the linear shaped control base such as HCD038V and HCD038/P. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Anschlusstyp: | RJ12 |
|---|---|
| Betriebsspannung: | 5 VDC |
| Daylight Harvest: | Ja |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 24x15 |
| Features: | Daylight Harvest |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Built-in, Conduit screws, Plug & Play Sensor Heads |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Lens type: | High-bay |
| Maximale Montagehöhe: | 15.0000 m |
| Montagehöhe: | High-bay |
| Product height: | 33.9000 mm |
| Produktlänge: | 63.0000 mm |
| Produkttiefe: | 40.5000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 55 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
| Warming-up: | 20 s |
