HBGW03/R

BACnet Gateway | DIN rail/wall/flat surface mounting | Remote access/monitoring

FEATURES

Compact: Enables flexible installation in various environments.
Seamless: Connects Bluetooth lighting devices to BMS for unified control.
Efficiency: Centralized control speeds up operations and saves energy.

ANWENDUNGEN

Building automation and lighting systems
Network cabinets or enclosures
1 gateway per bluetooth network

Datenblatt herunterladen

Produktinformationen "HBGW03/R"

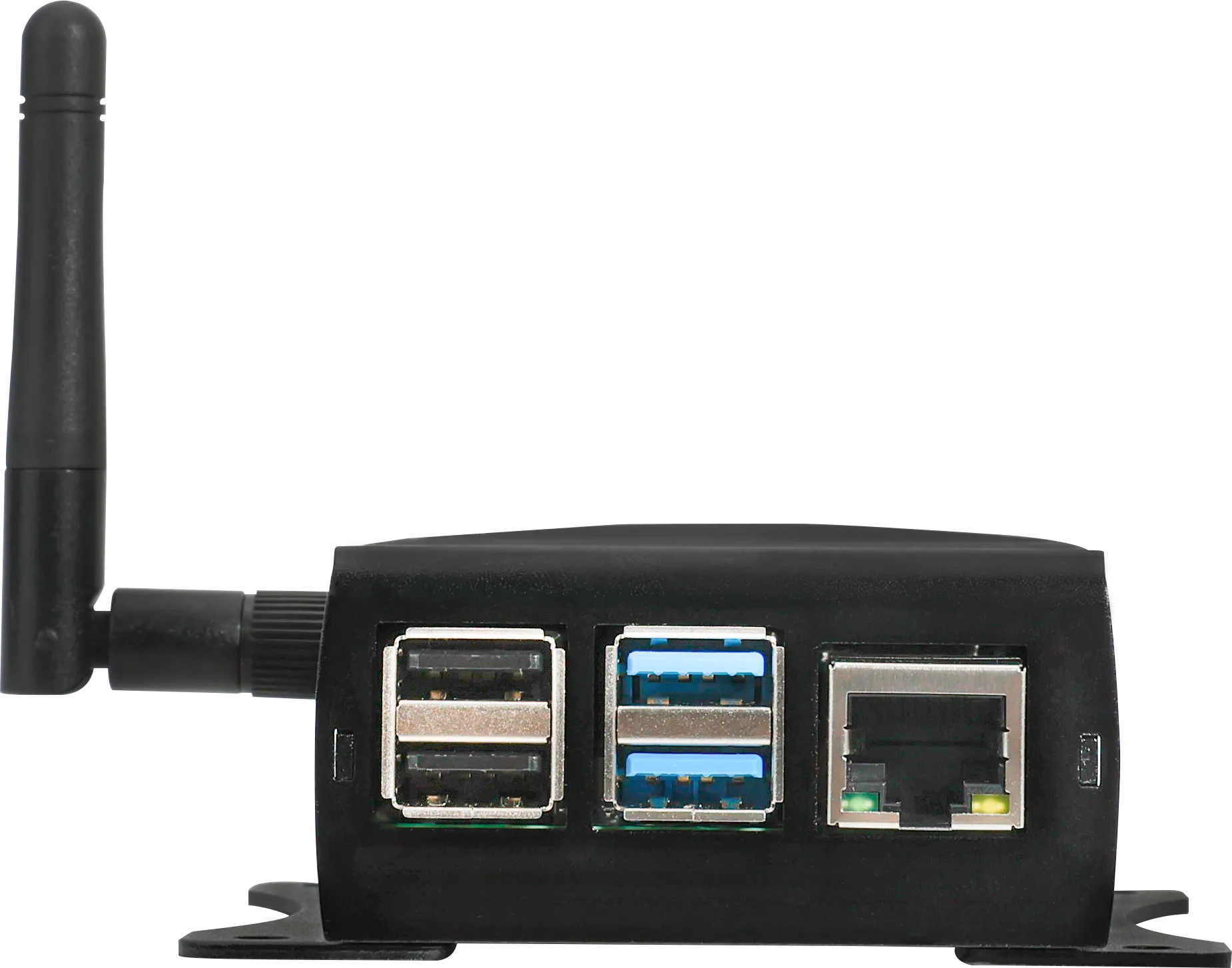

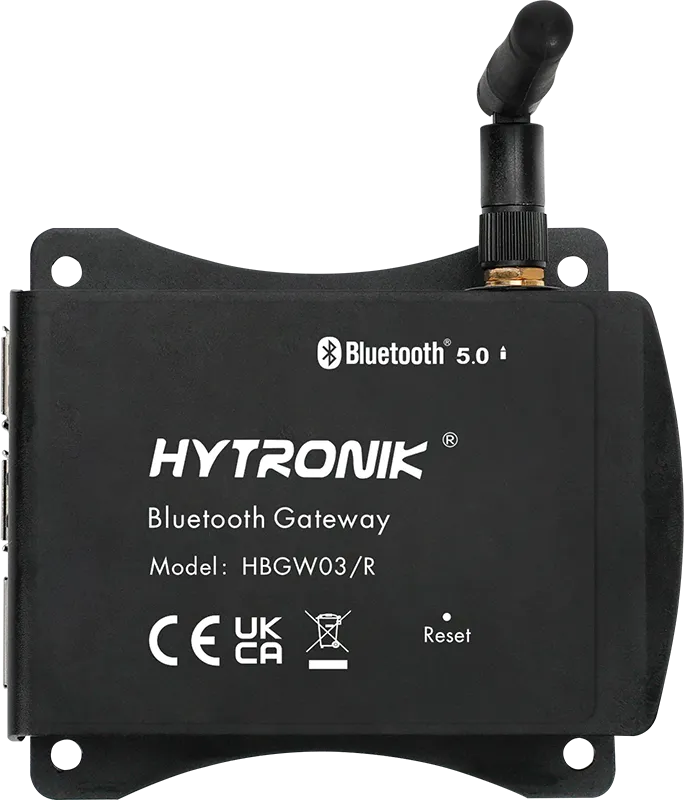

HBGW03/R is an industrial-grade BACnet gateway with a built-in nRF52840 Bluetooth module. It converts Bluetooth device data into BACnet or Ethernet signals, enabling seamless integration of Bluetooth lighting networks with BMS for unified monitoring and control. Designed for flexible installation, the gateway supports DIN rail, wall, or flat surface mounting, and features an external antenna to enhance signal stability and communication range. With its compact footprint (95.7×70×28.7 mm) and robust performance, HBGW03/R ensures reliable operation and easy deployment in diverse industrial and commercial applications.

Bluetooth Frequenz:	2.4 GHz - 2.483 GHz
Bluetooth Reichweite:	10-50m
Bluetooth Sendeleistung:	19 dBm
Bluetooth System:	Koolmesh
Human Centric Lightning (HCL):	Nein
IP-Schutzart:	IP20
Kategorie - Systemkomponenten:	Gateway für Bluetooth-System
Korridorfunktion:	Nein
Lagertemperatur:	60 °C
Max. Luftfeuchtigkeit:	60 %
Min. Lagertemperatur:	-10 °C
Min. Luftfeuchtigkeit:	30 %
Produktbreite:	85.5000 mm
Produkthöhe:	82.8000 mm
Produktlänge:	96.6000 mm
Umgebungstemperatur max.:	50 °C
Umgebungstemperatur min.:	0 °C
