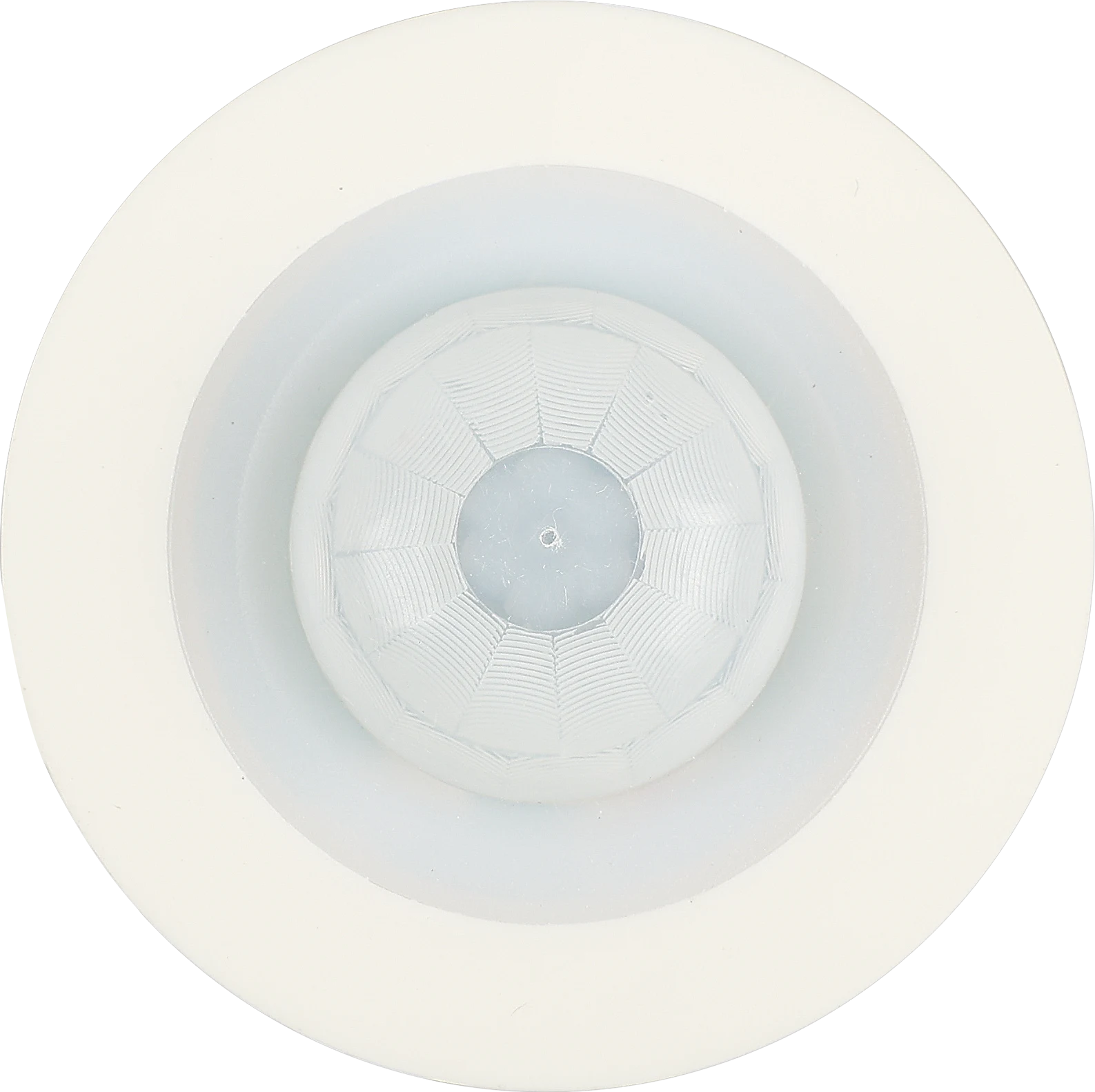

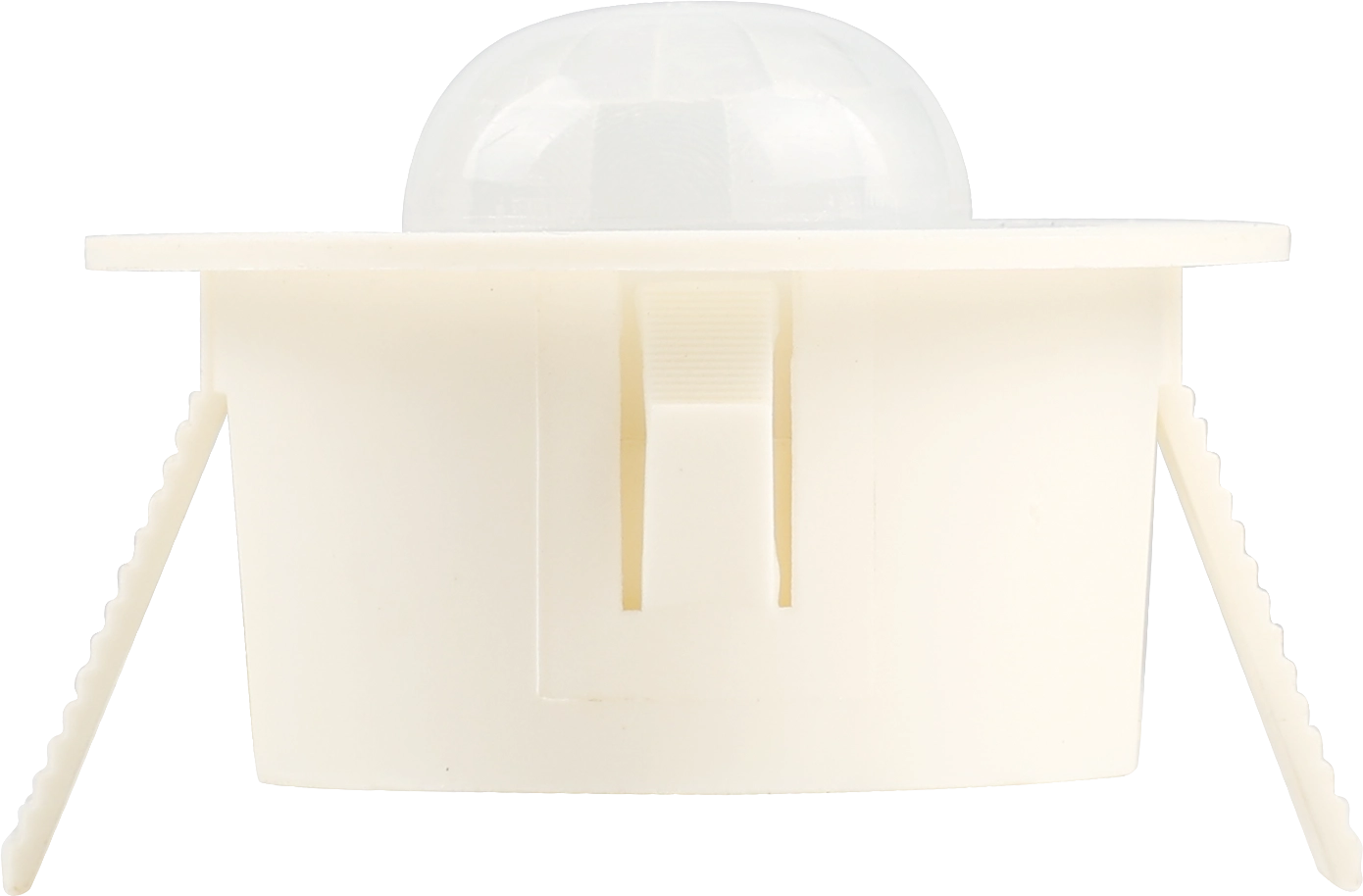

HIR01/FM
PIR Lowbay | Daylight Harvest | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Daylight harvest with photocell
- User-Friendly: With one-key commissioning with IR controller

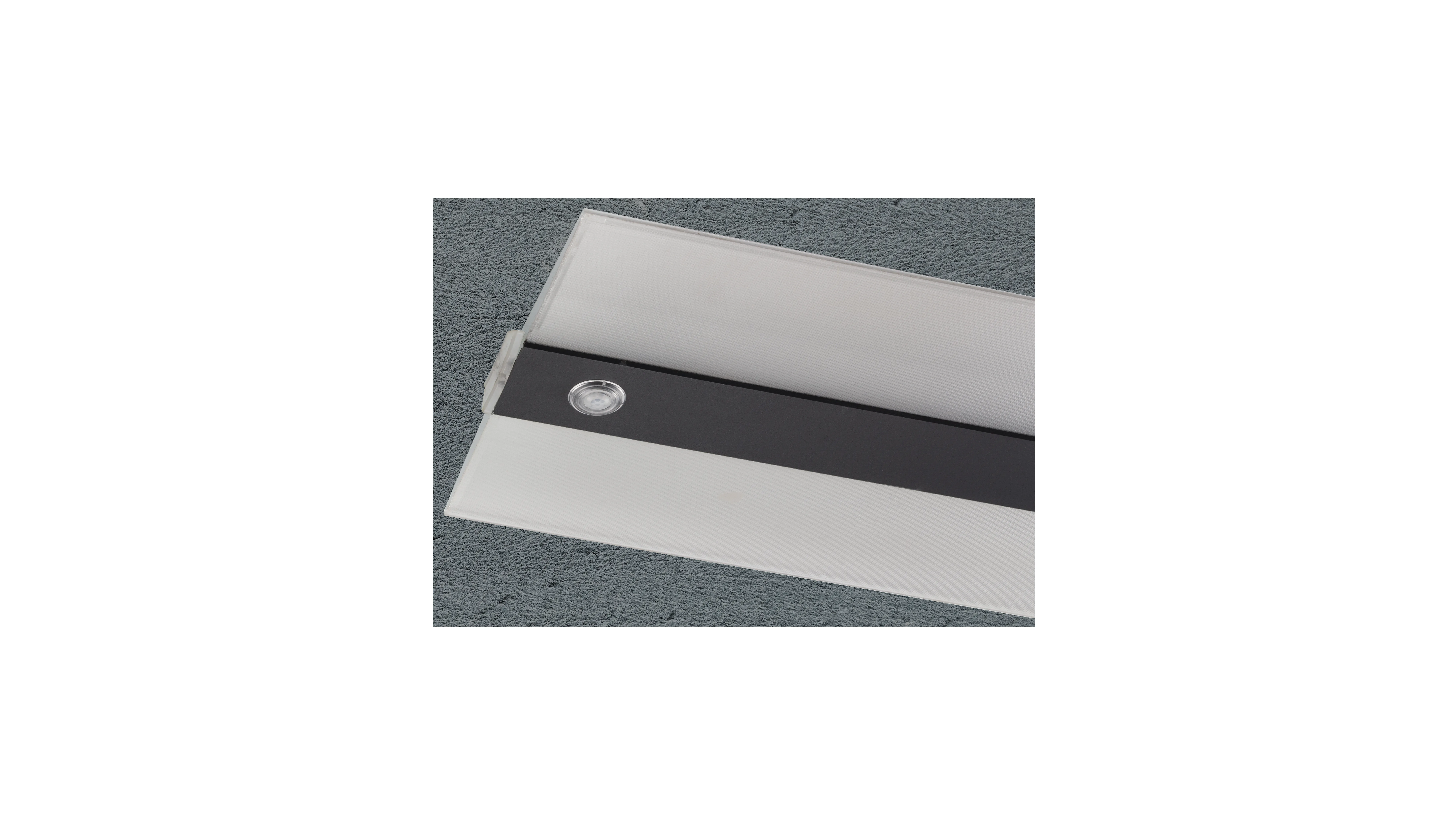

ANWENDUNGEN
- Flush mount application
- Classrooms
- Offices
Produktinformationen "HIR01/FM"
HIR05/FM is a PIR sensor head and compatible with the Daylight Harverst. It can work with the linear shaped control base such as HC038V/BT;HCD038/BT;HC438V/BT;HCD438/BT; HCD038/CA; HCD438/CA. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
Anschlusstyp: | RJ12 |
---|---|
Befestigungsloch: | 41.0000 mm |
Betriebsspannung: | 5 VDC |
Daylight Harvest: | Ja |
Detection angle: | 360° |
Detektionsverfahren: | Passive Infrared (PIR) |
Erfassungsbereich (DxH): | 6x3 |
Features: | Daylight Harvest |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Human Centric Lightning (HCL): | Nein |
Inbetriebnahmemethoden: | Remote Controller |
Installationstyp: | Plug & Play Sensor Heads |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Lens type: | Standard Low-bay |
Montagehöhe: | Low-bay |
Product height: | 20.3000 mm |
Produkttiefe: | 48.0000 mm |
Schutzart: | IP20 |
Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
Tri-level (Korridorfunktion): | Nein |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | DC |
Zhaga: | No |
