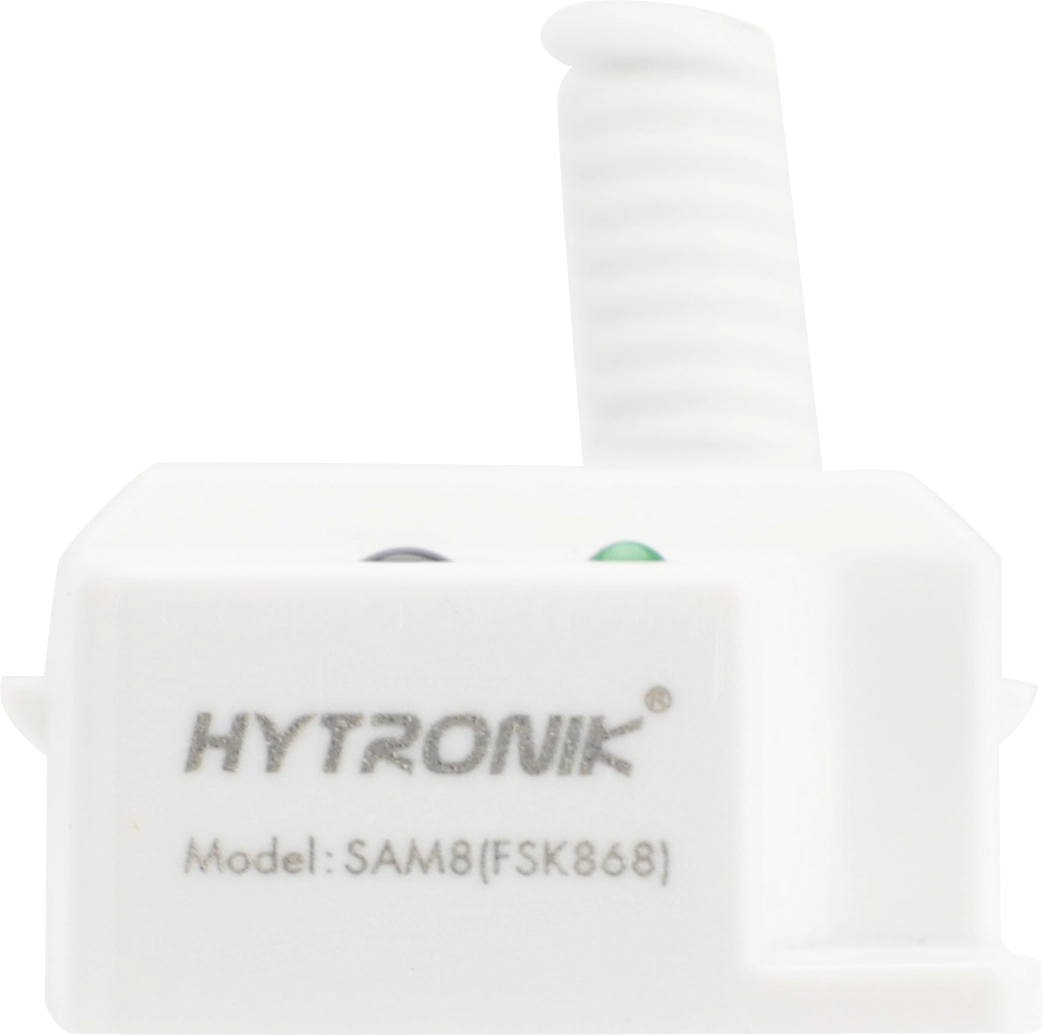

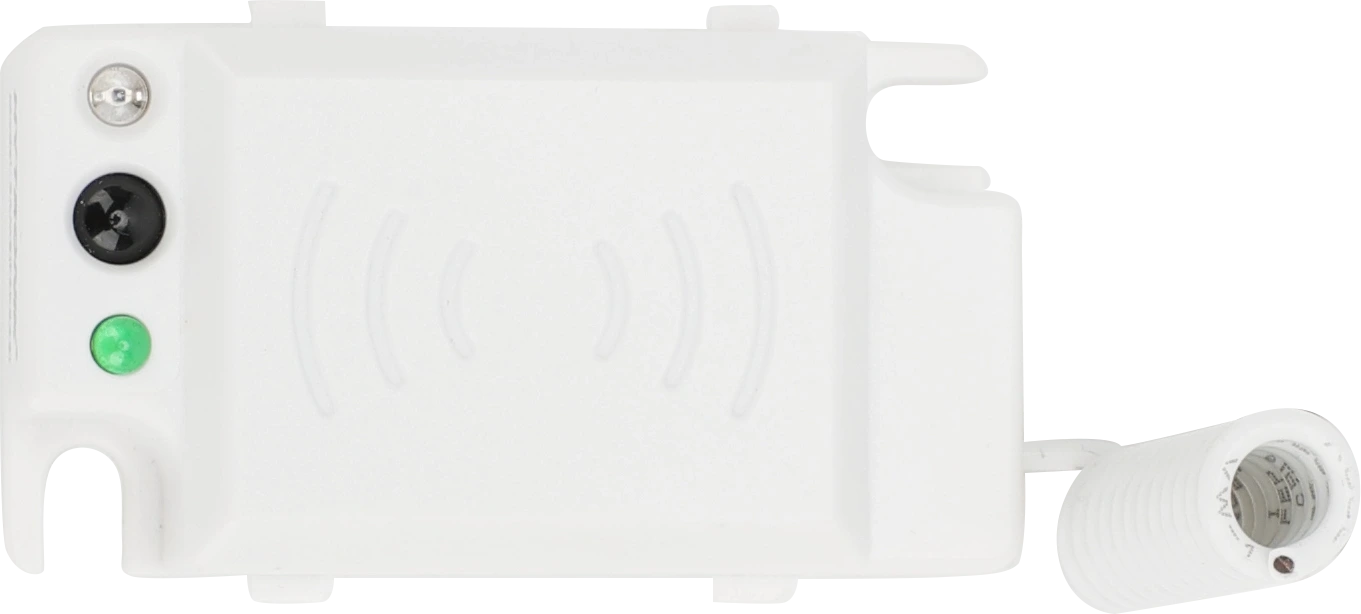

SAM8
HF Lowdbay | Tri-level dimming | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Rotary switch for quick RF channel pair
- User-Friendly: With one-key commissioning with IR controller
ANWENDUNGEN
- Master luminaire with sensor
- Classrooms
- Offices
Produktinformationen "SAM8"
SAM8 is a HF sensor head and compatible with the Tri-level Dimming. It can work with the linear shaped control base such as HCD038V and HCD038/P. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Betriebsspannung: | 5 VDC |
| Detection angle: | 30° - 150° |
| Detektionsverfahren: | Microwave (MW) |
| Erfassungsbereich (DxH): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 0 % |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Built-in, Plug & Play Sensor Heads |
| Lens type: | Standard Low-bay |
| Maximale Montagehöhe: | 6.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 16.0000 mm |
| Produktlänge: | 52.2000 mm |
| Produkttiefe: | 31.2000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 80 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
