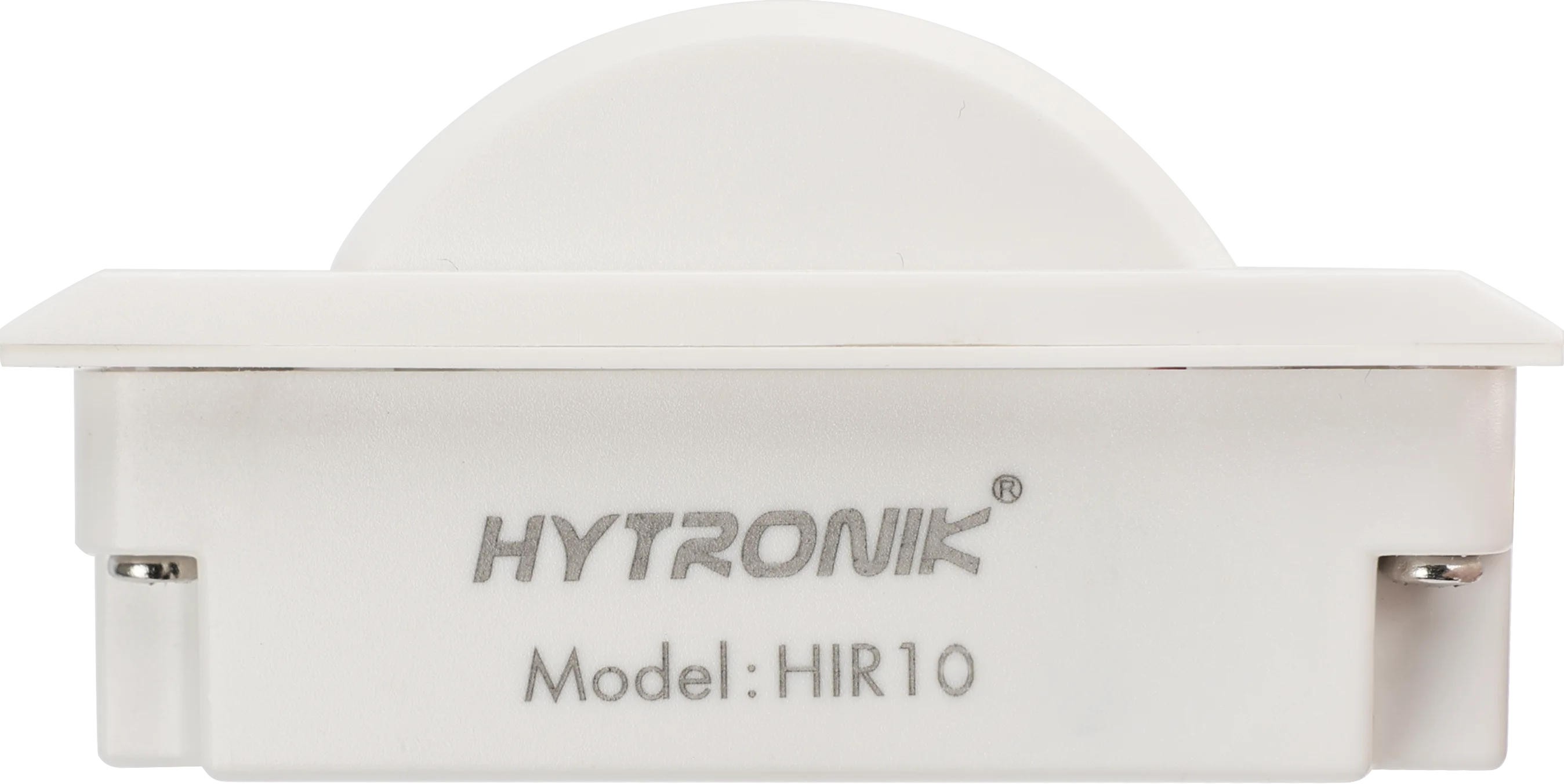

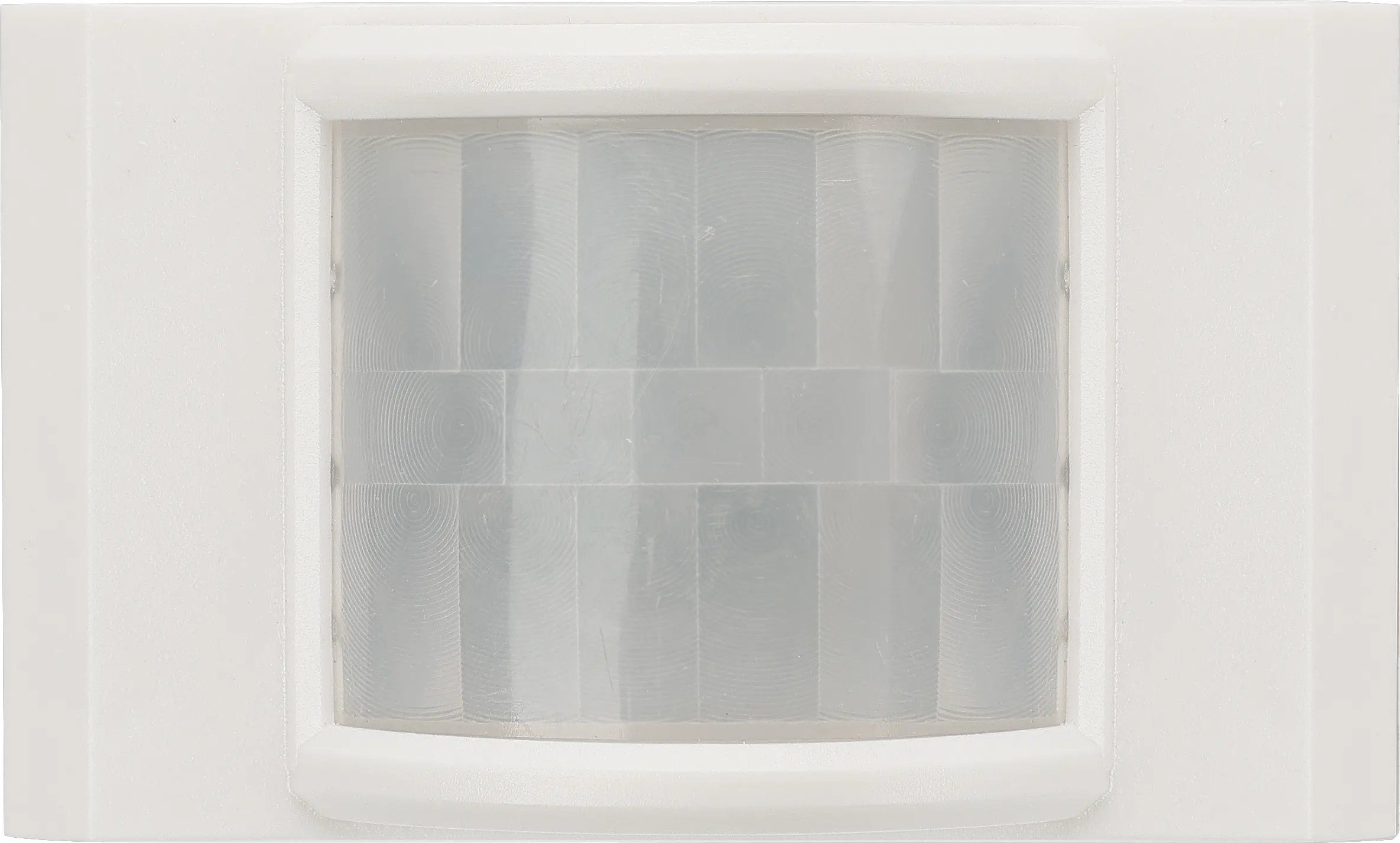

HIR10
PIR Highbay | Daylight Harvest | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Daylight harvest with photocell
- User-Friendly: With one-key commissioning with IR controller
ANWENDUNGEN
- For luminaires with a height of up to 15m
- Production/ Industry
- Offices
Produktinformationen "HIR10"
This PIR sensor is designed for linear luminaires. It includes daylight harvesting, a photocell for light sensing, and active lux switching capabilities. Sensor settings can be adjusted via the HRC-11 handset, and it is IP65 rated for the lens/facia part.
| Anschlusstyp: | RJ12 |
|---|---|
| Befestigungsloch: | 33.0000 mm |
| Betriebsspannung: | 5 VDC |
| Daylight Harvest: | Ja |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 18x6 |
| Features: | Daylight Harvest |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Plug & Play Sensor Heads |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Maximale Montagehöhe: | 15.0000 m |
| Montagehöhe: | High-bay |
| Product height: | 38.2000 mm |
| Produktlänge: | 75.0000 mm |
| Produkttiefe: | 45.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
| Zhaga: | No |
