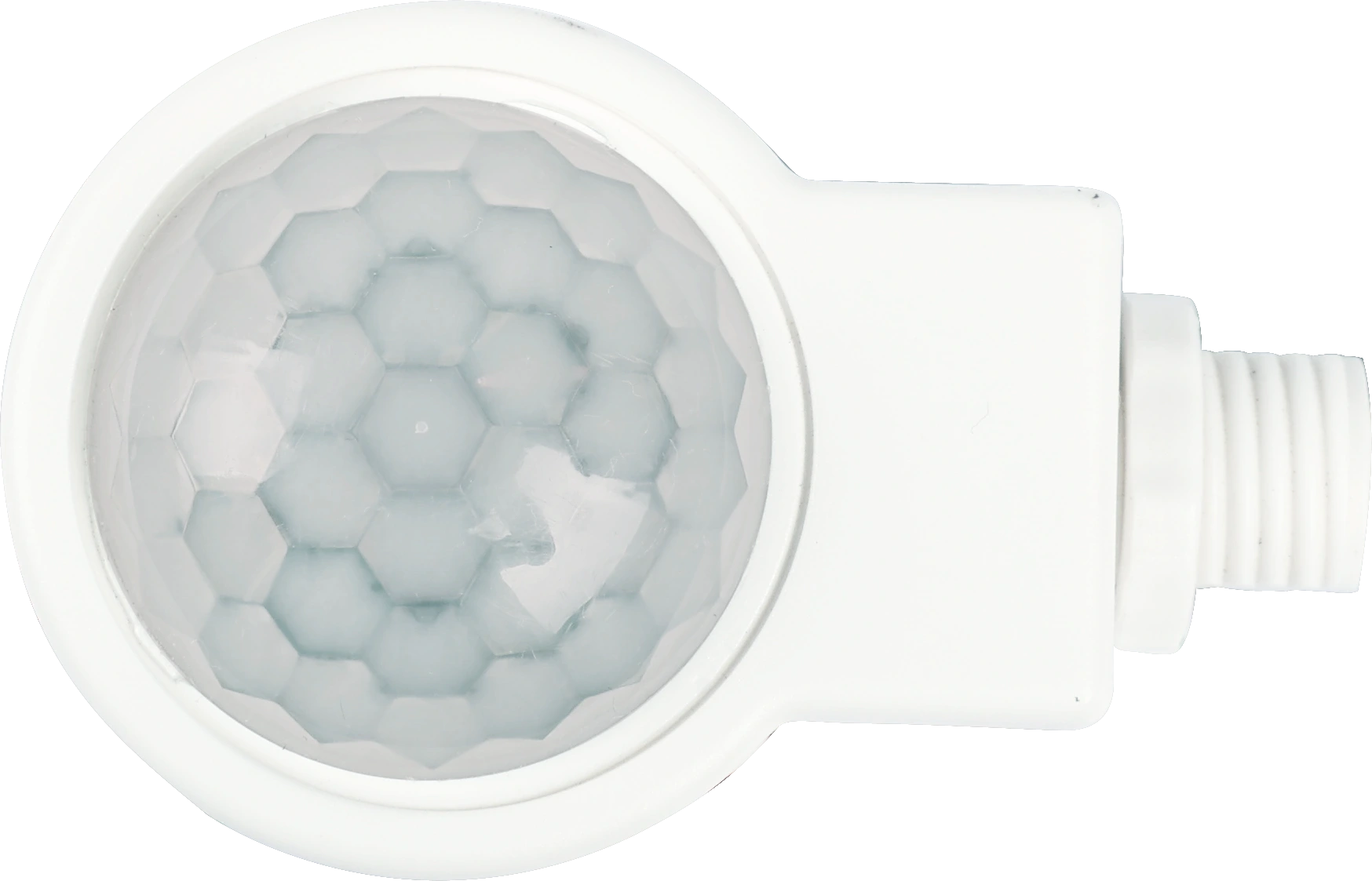

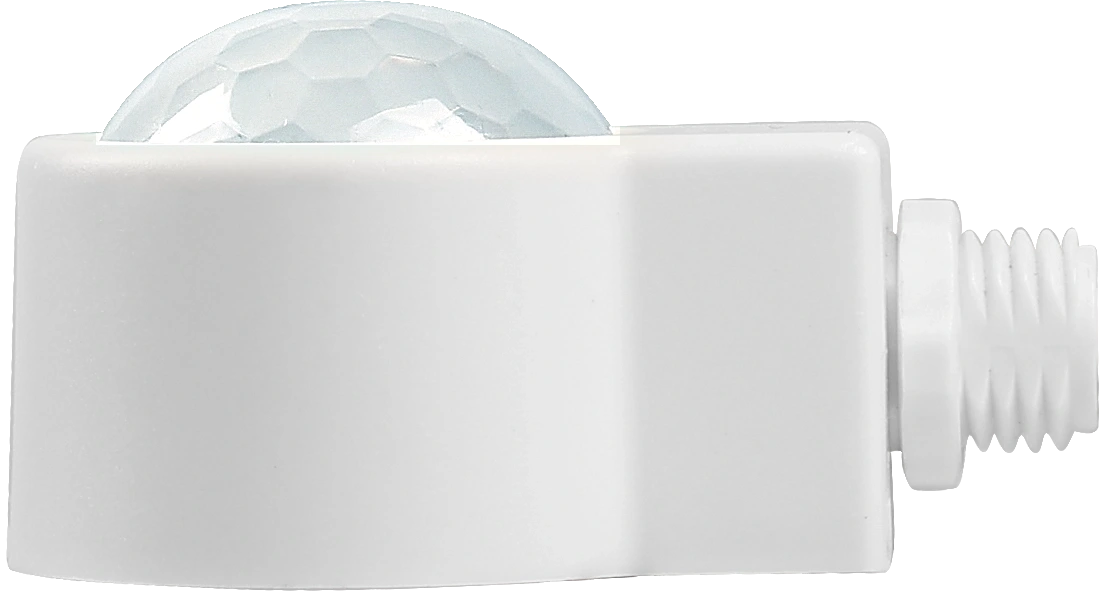

HIR19/C
PIR Highbay | Tri-level dimming | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Tri-level dimming control with Photocell
- User-Friendly: With one-key commissioning with IR controller
ANWENDUNGEN
- Conduit thread: M 13x1.5mm
- Office/Commercial Lighting
- School/Classrooms
Produktinformationen "HIR19/C"
Equipped with a M13 * 1.5mm conduit thread for straightforward installation, this PIR sensor includes tri-level dimming, a photocell, and active lux switching. It supports adjustable settings via handset HRC-11 and is IP65 rated for robust protection.
| Anschlusstyp: | RJ12 |
|---|---|
| Betriebsspannung: | 5 VDC |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 24x15 |
| Features: | Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Built-in, Conduit screws, Plug & Play Sensor Heads |
| Lens type: | High-bay |
| Maximale Montagehöhe: | 15.0000 m |
| Montagehöhe: | High-bay |
| Product height: | 63.0000 mm |
| Produktlänge: | 33.9000 mm |
| Produkttiefe: | 40.5000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Tri-level (Korridorfunktion): | Ja |
| Voltage Type: | DC |
| Warming-up: | 20 s |
