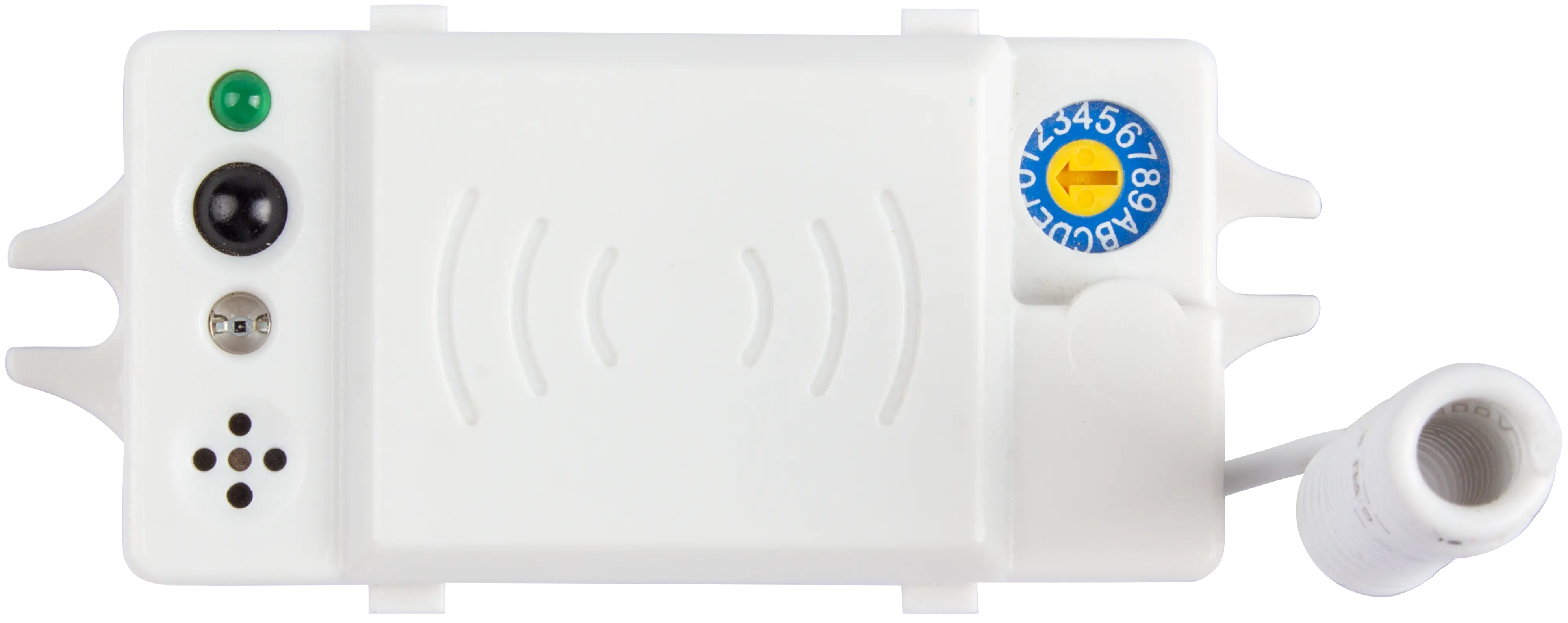

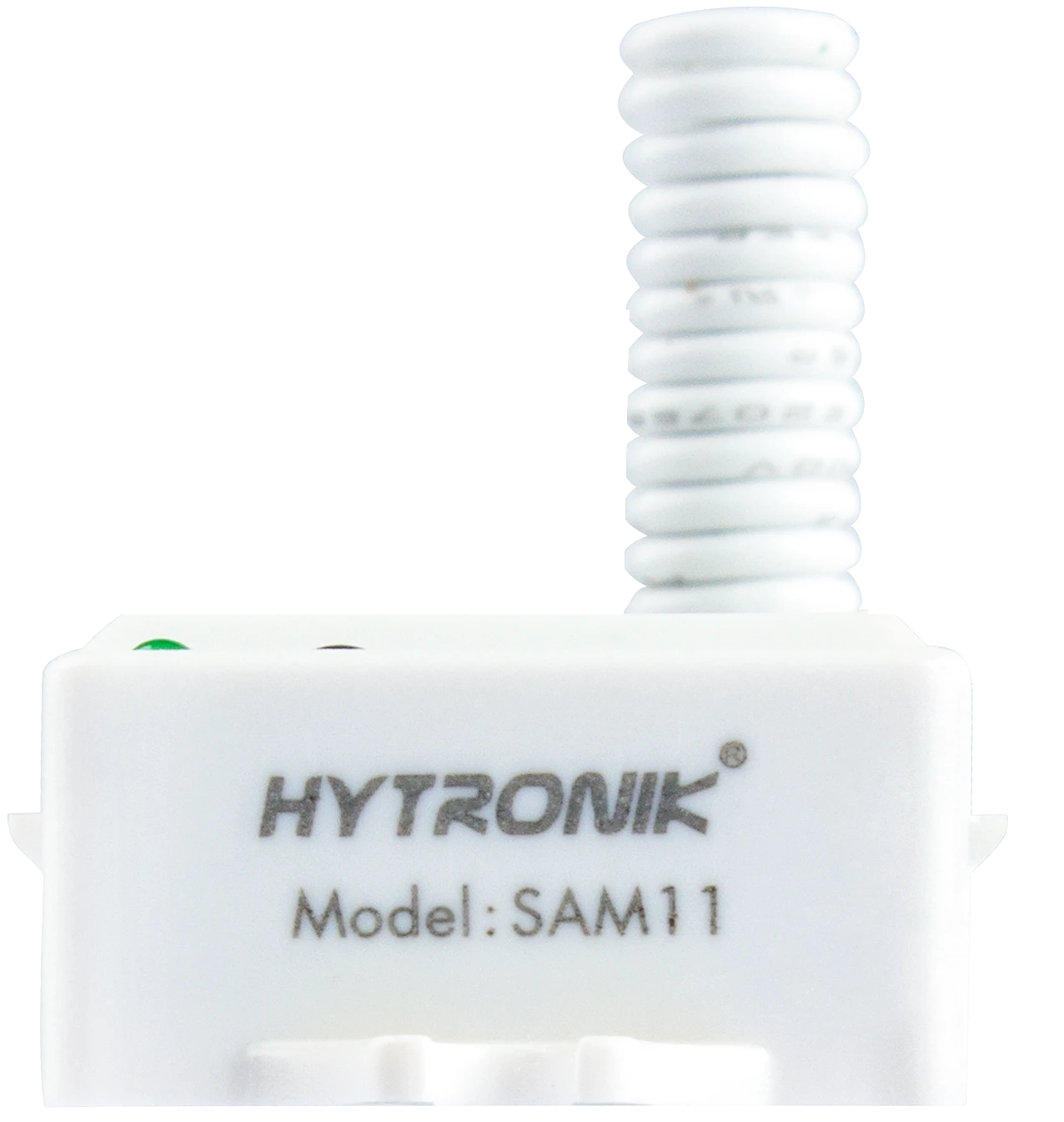

SAM11
HF Lowdbay | Tri-level dimming | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Rotary switch for quick RF channel pair
- User-Friendly: With one-key commissioning with IR controller
ANWENDUNGEN
- Master luminaire with sensor
- Classrooms
- Offices
Produktinformationen "SAM11"
This sensor features microwave (HF) detection along with tri-level dimming and a robust HF antenna design to mitigate wireless interference. It supports RF pairing (FSK433MHz or FSK868MHz) for primary and secondary control, facilitated by a rotary switch for quick RF channel pairing. It includes a photodiode (PD) and active lux switching capabilities, suitable for installations up to 6m high with a Ø = 12m detection range. Sensor settings are adjustable using the HRC-11 handset.
| Anschlusstyp: | RJ12 |
|---|---|
| Betriebsspannung: | 5 VDC |
| Detektionsverfahren: | Microwave (MW) |
| Erfassungsbereich (DxH): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Ja |
| Installationstyp: | Plug & Play Sensor Heads |
| Lens type: | Mid Bay |
| Schutzart: | IP20 |
| Tri-level (Korridorfunktion): | Ja |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
