HBIR29
PIR Lowbay | Bluetooth DALI with PSU | Ceiling mounting
Vorteile
- Adaptable: Lens and blind variants for different detection ranges
- Innovative: Bluetooth PIR sensor with built-in DALI PSU
- Easy: Daylight harvest configuration with Koolmesh app
ANWENDUNGEN

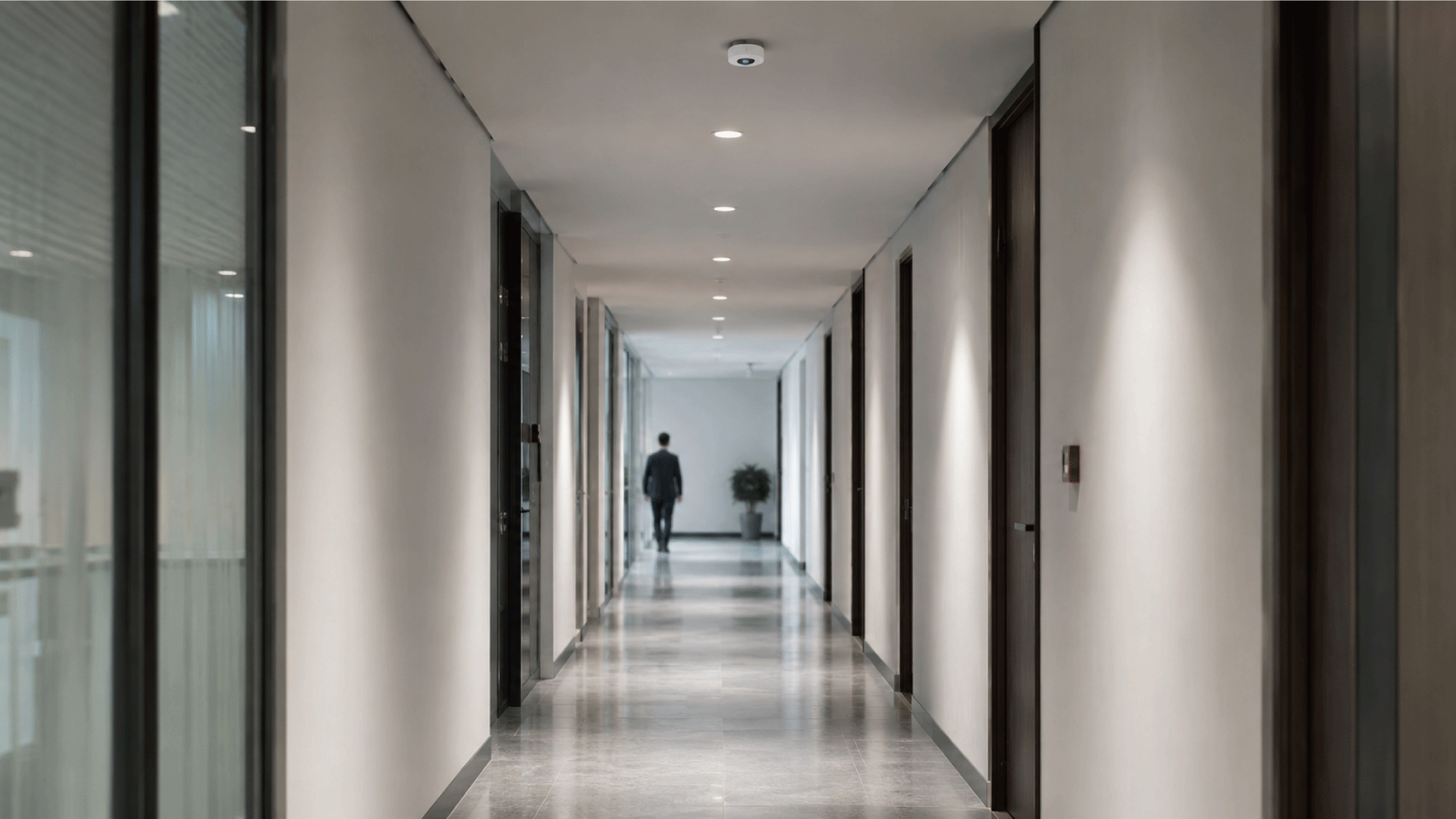

- Remote ceiling or surface mounting (with accessory)
- Offices, Classrooms
- Common spaces, Corridors
Produktinformationen "HBIR29"

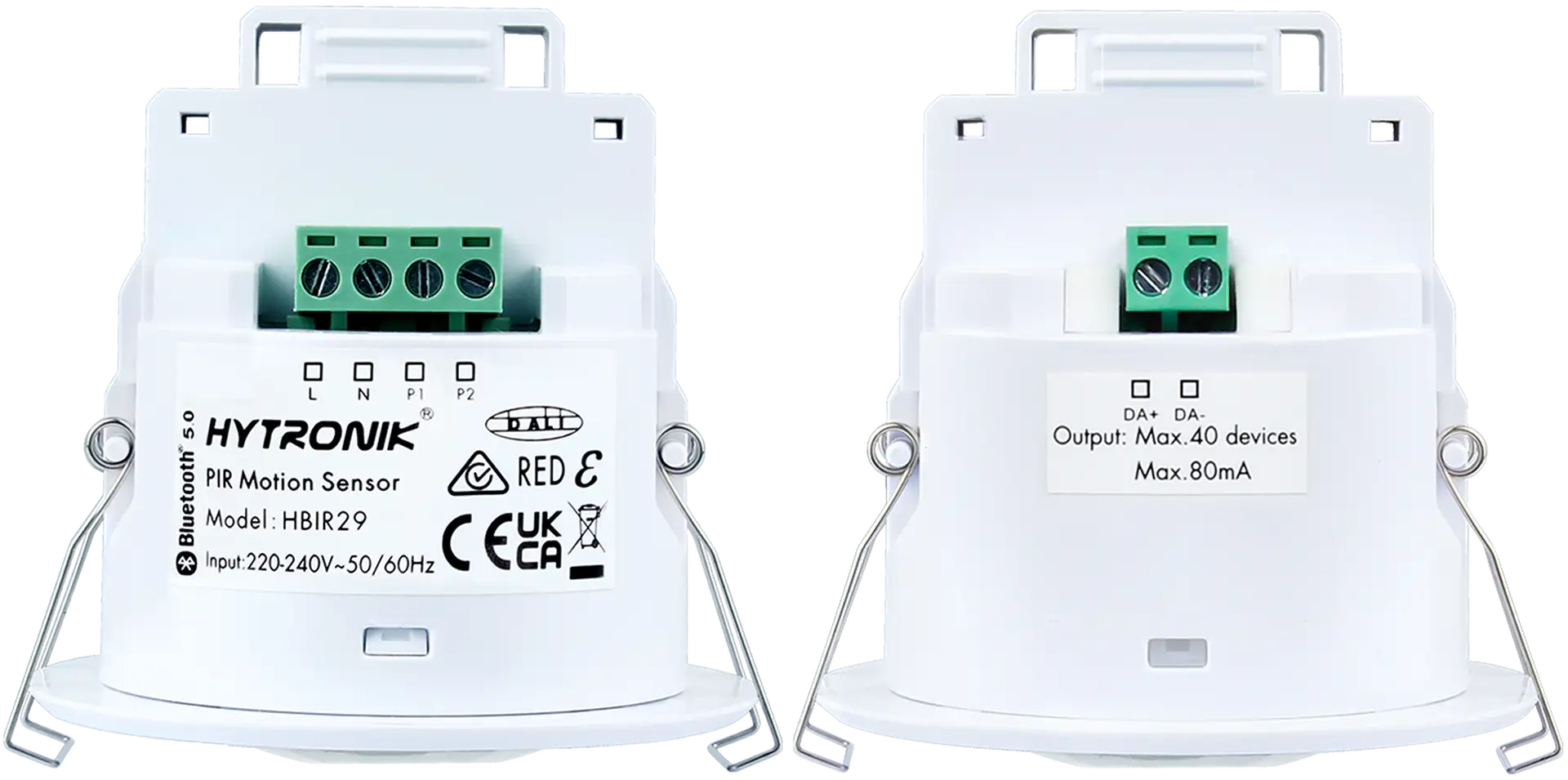

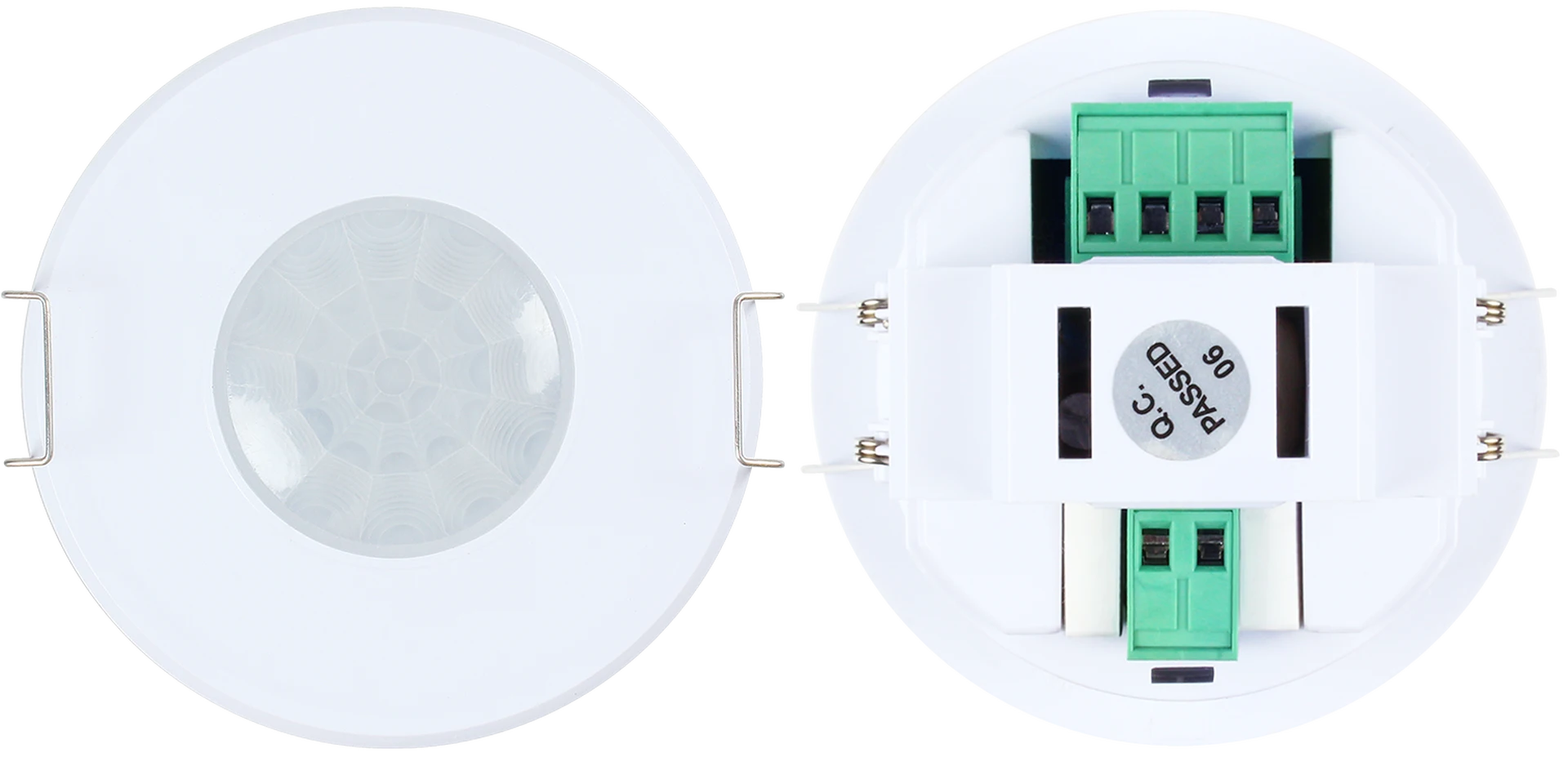

HBIR29 series are Bluetooth PIR standalone motion sensors with one DALI channel output (80mA DALI power supply built in). It is ideal for typical indoor applications such as office, classroom, healthcare and other commercial areas. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects (especially for retrofit upgrade projects!). Meanwhile, simple device setup and commissioning can be done via Koolmesh app.
Anschlusstyp: | Standard 2 cables |
---|---|
Ausgangsschnittstelle: | DALI & DALI-2 |
Befestigungsloch: | 66.0000 mm |
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
Bluetooth Technologie: | Nordic nRF52832 |
Daylight Harvest: | Ja |
Detektionsverfahren: | Passive Infrared (PIR) |
Erfassungsbereich (DxH): | 9x6 |
Erforderlicher DALI-Strom: | 80.0000 mA |
Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Human Centric Lightning (HCL): | Ja |
Inbetriebnahmemethoden: | App & Web (Bluetooth) |
Installationstyp: | Stand-alone |
Lens type: | Standard Low-bay |
Maximale Montagehöhe: | 3.0000 m |
Montagehöhe: | Low-bay |
Product height: | 75.2000 mm |
Produkttiefe: | 78.0000 mm |
Schutzart: | IP20 |
Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
Taster Eingänge: | 2 |
Tri-level (Korridorfunktion): | Ja |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | AC |
Zhaga: | No |
