HBEM03 ECO
Integrated Mains & Emergency Control | Max. (Main 40W / EM 4W) | Wireless Commissioning
FEATURES
- Compact: Self - contained Emergency & LED drivers combination
- Intelligent: Supports wireless self-test, battery life prediction, and fault alerts.
- Flexible: Enables dimming via both Switch-Dim and wireless app control.
ANWENDUNGEN
- Luminaire Built-in integration
- Offices & Classrooms
- Industry & Healthcare Spaces
Produktinformationen "HBEM03 ECO"

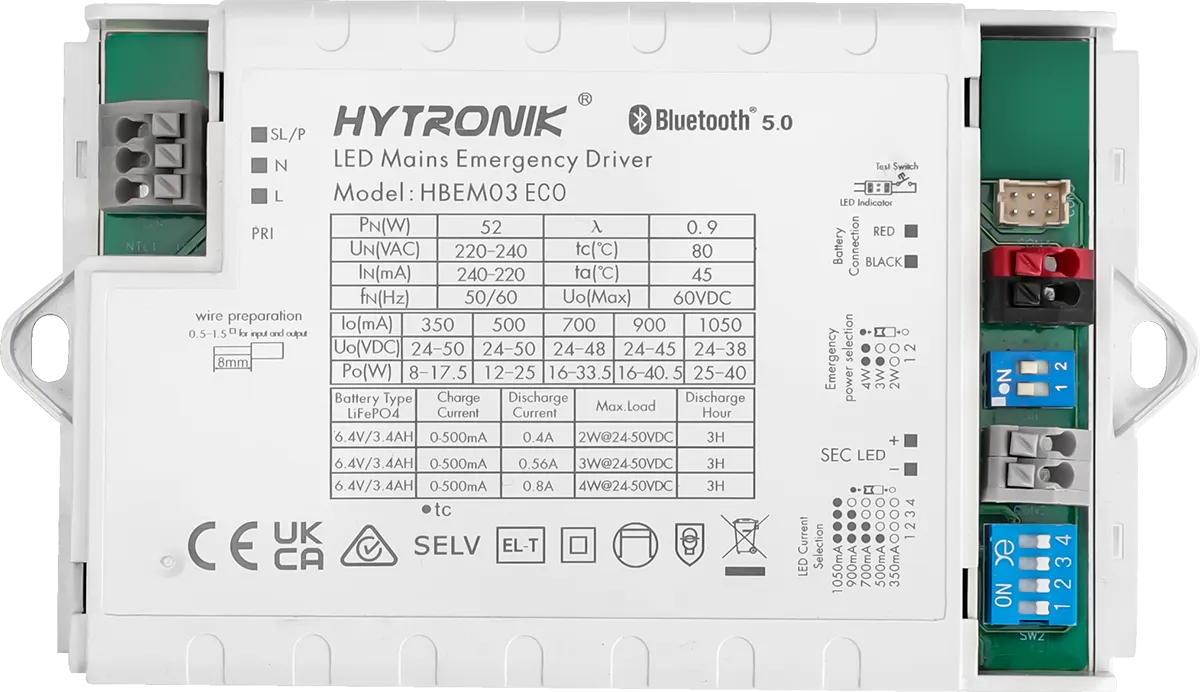

HBEM03 ECO is a compact, dimmable Bluetooth LED driver with
integrated emergency control, delivering a comprehensive solution for
intelligent emergency lighting. It can be used as a built-in or standalone unit
for flexible installation.
| Ausgangsspannung: | 60V |
|---|---|
| Betriebsspannung: | 220-240 VAC 50/60 Hz |
| Bluetooth-Plattform: | Nordic nRF52832 |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Dimm-Steuersignal: | Switch-Dim |
| Einbauöffnung: | 4.1000 mm |
| Human Centric Lightning (HCL): | Nein |
| IP-Schutzart: | IP20 |
| Kategorie - Notlicht LED-Treiber und & Inverter: | LED Treiber & Inverter Kombination (Bluetooth) |
| Korridorfunktion: | Nein |
| Lagertemperatur: | 45 °C |
| Max. Luftfeuchtigkeit: | 90 % |
| Min. Lagertemperatur: | -10 °C |
| Min. Luftfeuchtigkeit: | 10 % |
| Produktbreite: | 79.2000 mm |
| Produktgewicht: | 200.0000 g |
| Produkthöhe: | 23.0000 mm |
| Produktlänge: | 140.7000 mm |
| Taster Eingänge: | 1 |
| Umgebungstemperatur max.: | 50 °C |
| Umgebungstemperatur min.: | 0 °C |
| Wirkungsgrad: | 88.0000 % |
| Zhaga: | Nein |
Datenblätter
Produktdatenblatt: hbem03-eco.pdf
