HBIR28
PIR Lowbay | Bluetooth and ON/OFF | Ceiling mounting
Vorteile
- Adaptable: Lens and blind variants for different detection ranges
- Versatile: Bluetooth motion and daylight control with additional relay
- Cost-Saving: BLE eliminates the need for time-consuming hardwiring
ANWENDUNGEN
- Remote ceiling or surface mounting (with accessory)

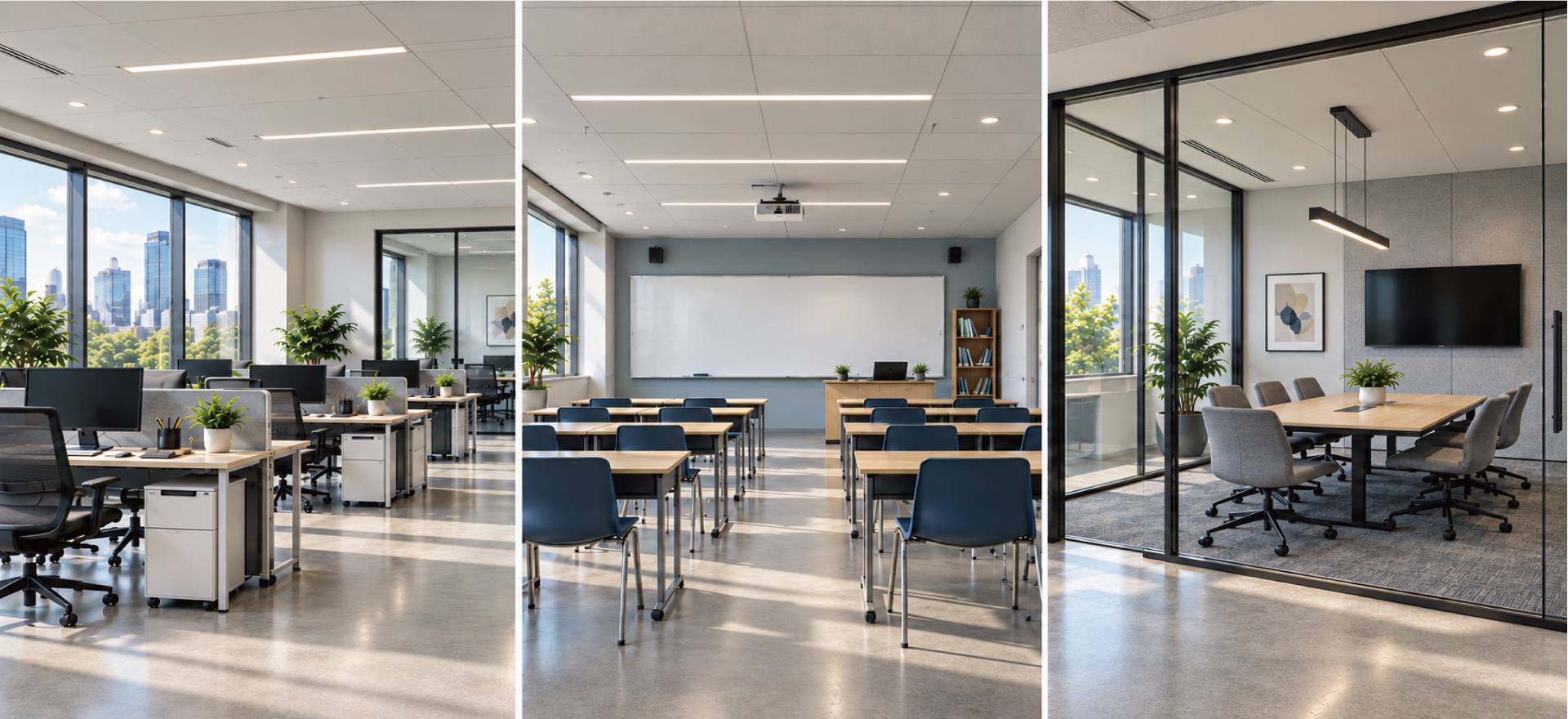

- Offices, Classrooms
- Common spaces, Corridors
Produktinformationen "HBIR28"
HBIR28 is a Bluetooth PIR standalone motion sensor, On/Off control with one relay channel output. It is ideal for typical indoor applications. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring. Meanwhile, simple device setup and commissioning can be done via koolmesh app.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | Relais On/Off |
| Befestigungsloch: | 66.0000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| DALI Multikanal: | Nein |
| Daylight Harvest: | Nein |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 9x6 |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Stand-alone |
| Lens type: | Standard Low-bay |
| Maximale Montagehöhe: | 6.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 75.2000 mm |
| Produkttiefe: | 78.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Taster Eingänge: | |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
