HBE9028
LED Driver with HF Lowbay | 2-28W / 0.3-0.7mA
Vorteile
- Cost effective: Round shape LED Driver with HF Sensor integrated
- Simple: Daylight and tri-level dimming without extra wiring
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh and Dip-Switch
ANWENDUNGEN

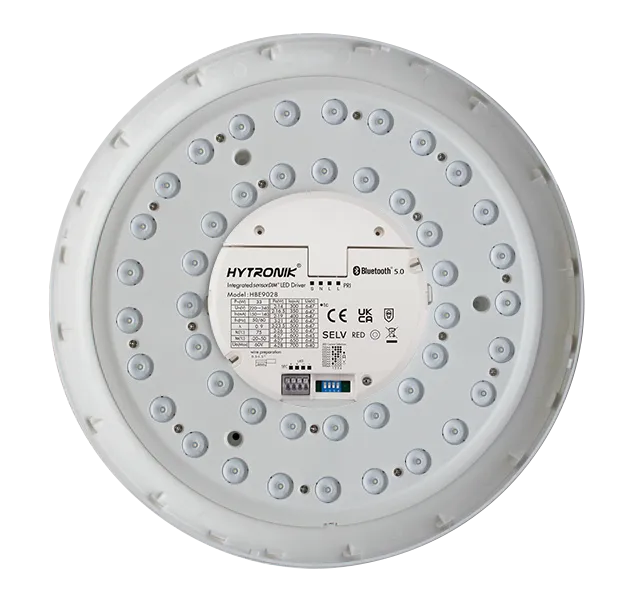

- For round shape luminaire with plastic housing up to 6m
- Office / Meeting rooms
- Schools / Classroom
Produktinformationen "HBE9028"

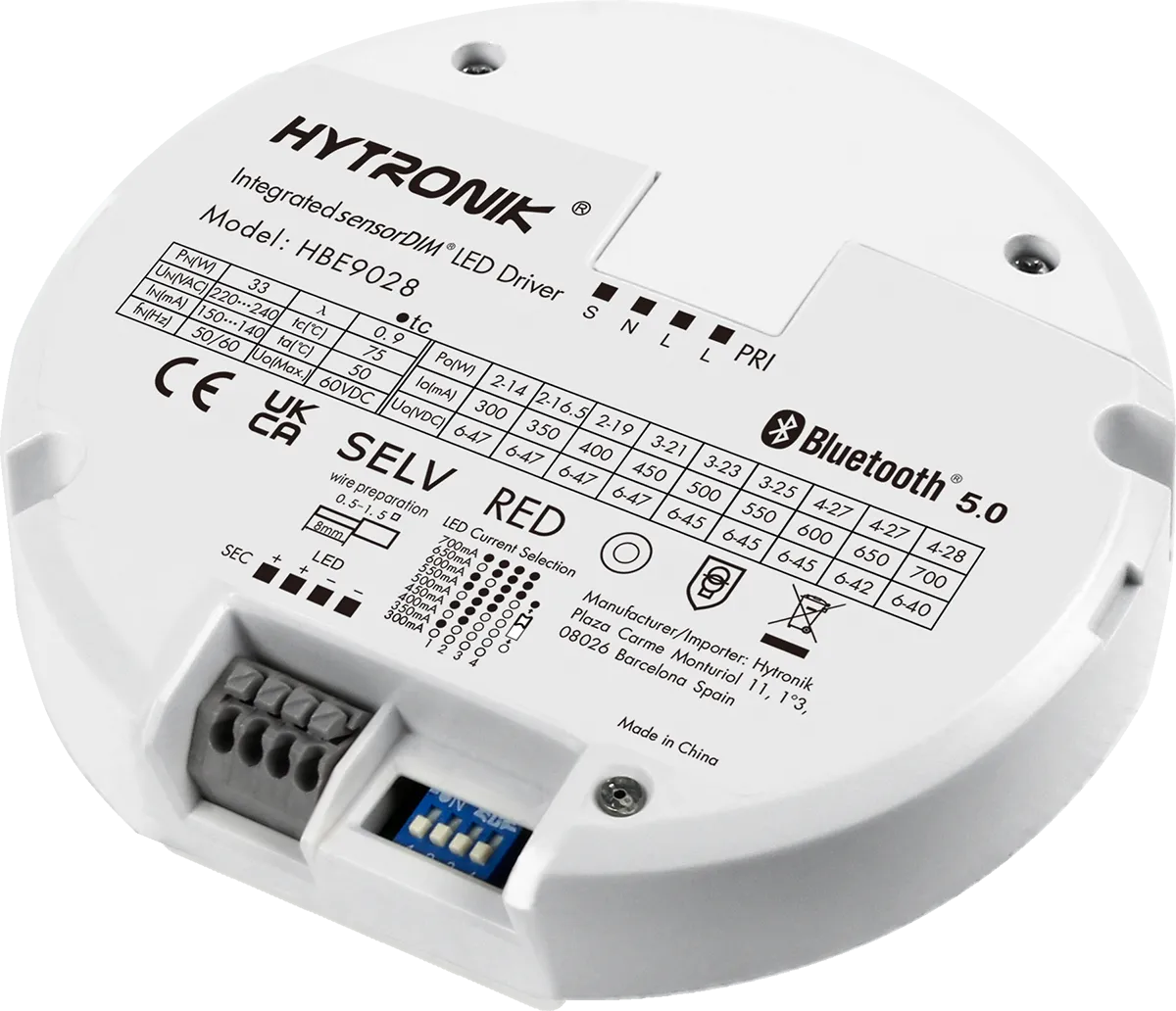

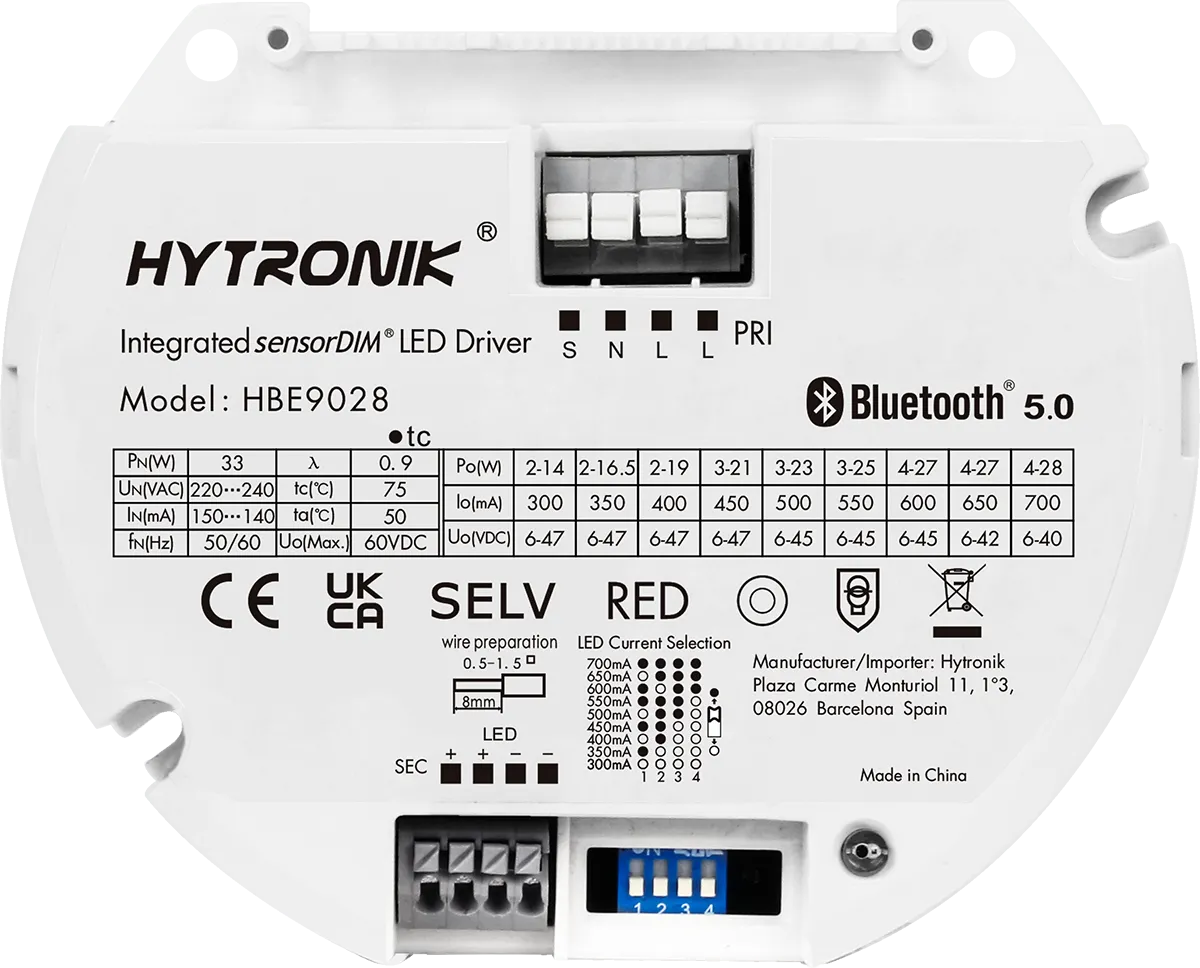

HBE9028 is integrated Bluetooth dimming LED driver + microwave sensor combo with maximum power output of 28W. Such 2 in 1 integrated design is a very cost-effective solution, it is ideal for new luminaires design for lighting manufacturers. It comes with Switch-Dim interface by using Push switch (retractive switch) and of course Bluetooth dimming interface. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring.
| Ausgangsleistung: | 26W - 44W |
|---|---|
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Daylight Harvest: | Ja |
| Detection angle: | 30° - 150° |
| Detektionsverfahren: | Microwave (MW) |
| Erfassungsbereich (DxH): | 10x6 |
| Features: | Daylight Harvest, Human Centric Lighting, Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Ja |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Lagertemperatur: | 75 °C |
| Lagertemperatur min.: | -40 °C |
| Maximale Montagehöhe: | 6.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 28.0000 mm |
| Produktlänge: | 125.0000 mm |
| Produkttiefe: | 130.1000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Photocell Advance |
| Taster Eingänge: | 1 |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Wirkungsgrad: | 85 % |
| Zhaga: | No |
