HBHC25
PIR Lowbay | 2CH DALI with PSU | Ceiling mounting
Vorteile
- Adaptable: Lens and blind variants for different detection ranges
- 2 DALI channels: two built-in DALI PSU 50mA + 30mA
- Easy: Motion and Daylight harvest configuration with Koolmesh app

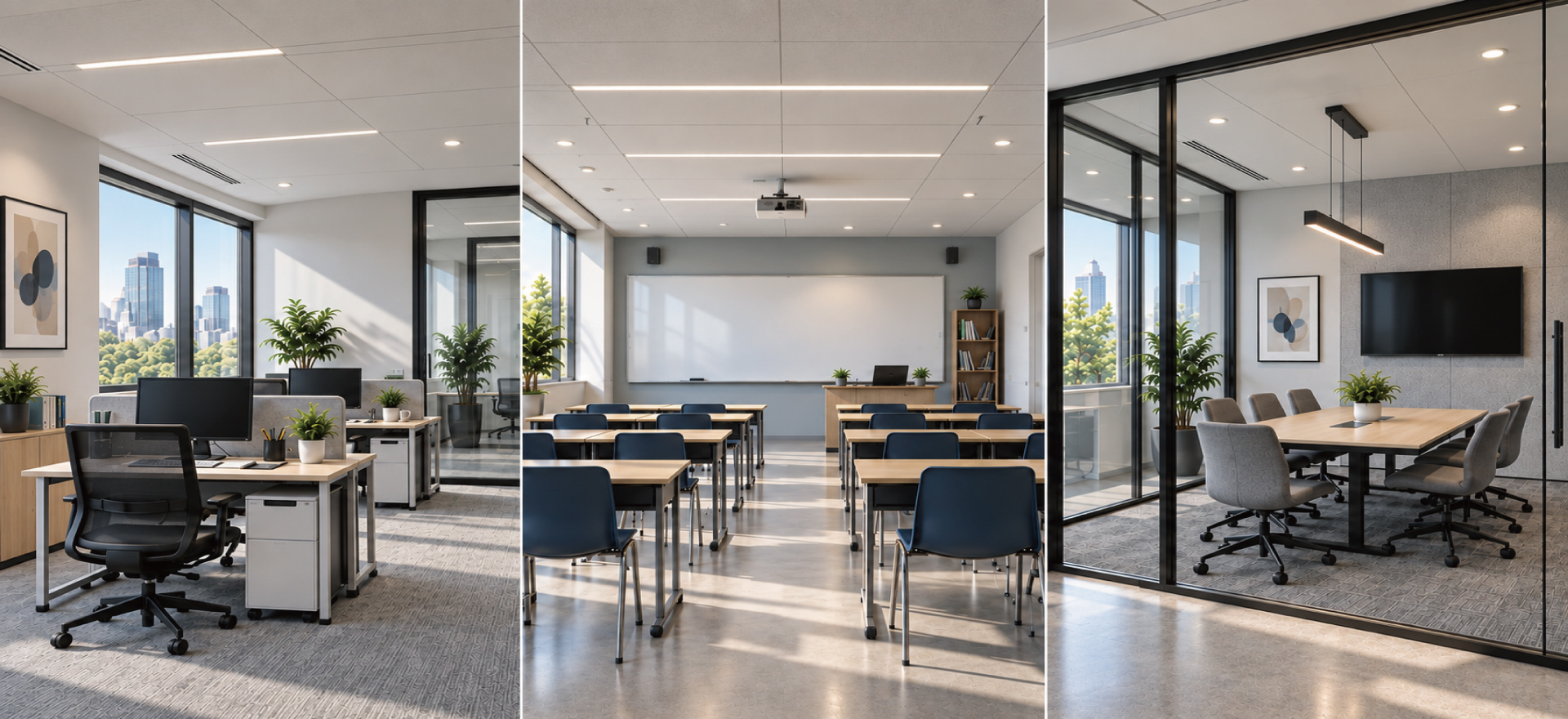

ANWENDUNGEN
- Remote ceiling or surface mounting (with accessory)
- Classrooms with blackboards and student zones
- Offices with two zones
Produktinformationen "HBHC25"
HBHC25/H is a Bluetooth PIR motion sensor with an 80mA DALI power supply, featuring 2 DALI channels: 50mA for Channel 1 and 30mA for Channel 2. Ideal for offices, classrooms, and commercial areas, it facilitates easy luminaire communication via Bluetooth mesh networking, simplifying installation.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | DALI |
| Befestigungsloch: | 66.0000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| DALI Max. Strom Kanal 1: | 50 mA |
| DALI Max. Strom Kanal 2: | 30 mA |
| Daylight Harvest: | Ja |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 9x6 |
| Erforderlicher DALI-Strom: | 80.0000 mA |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Stand-alone |
| Lagertemperatur min.: | 50 °C |
| Lens type: | Standard Low-bay |
| Maximale Montagehöhe: | 3.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 75.2000 mm |
| Produkttiefe: | 78.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Taster Eingänge: | 3 |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | -20 °C |
| Voltage Type: | AC |
| Zhaga: | No |
