HE1025-1
SensorDim LED Driver 25W (CC) | Dimmable | Built-in version
BENEFITS
- Compact: LED Driver pre-defined brightness levels (0%~100%)
- Flexible: SensorDIM control gear + high voltage output sensors
- Easy: Configurable constant current (CC) output via DIP switches
APPLICATIONS
- Linear Luminaire Built-in integration
- Offices
- Classrooms
Product information "HE1025-1"
This SensorDIM LED driver is designed for sensor-based dimming, operating at full power when a sensor signal is received and at pre-defined brightness levels (0%/10%/20%/30%/50%/100%) when the signal is absent. It features output current selection via 3 DIP switches, offering 8 current levels (250mA to 700mA). Encased in an aluminum profile filled with silicon rubber, it is suitable for heavy-duty tasks and tough climates.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -25 °C |
| Driver Type: | Dimming Only |
| Efficiency: | 85 % |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting hole: | 4.5000 mm |
| Operating Mode: | Constant Current |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Output Power: | ≤25W |
| Output Voltage: | 68VDC Max. |
| Product height: | 22.0000 mm |
| Product length: | 155.0000 mm |
| Product weight: | 155.0000 g |
| Product width: | 40.5000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
Login

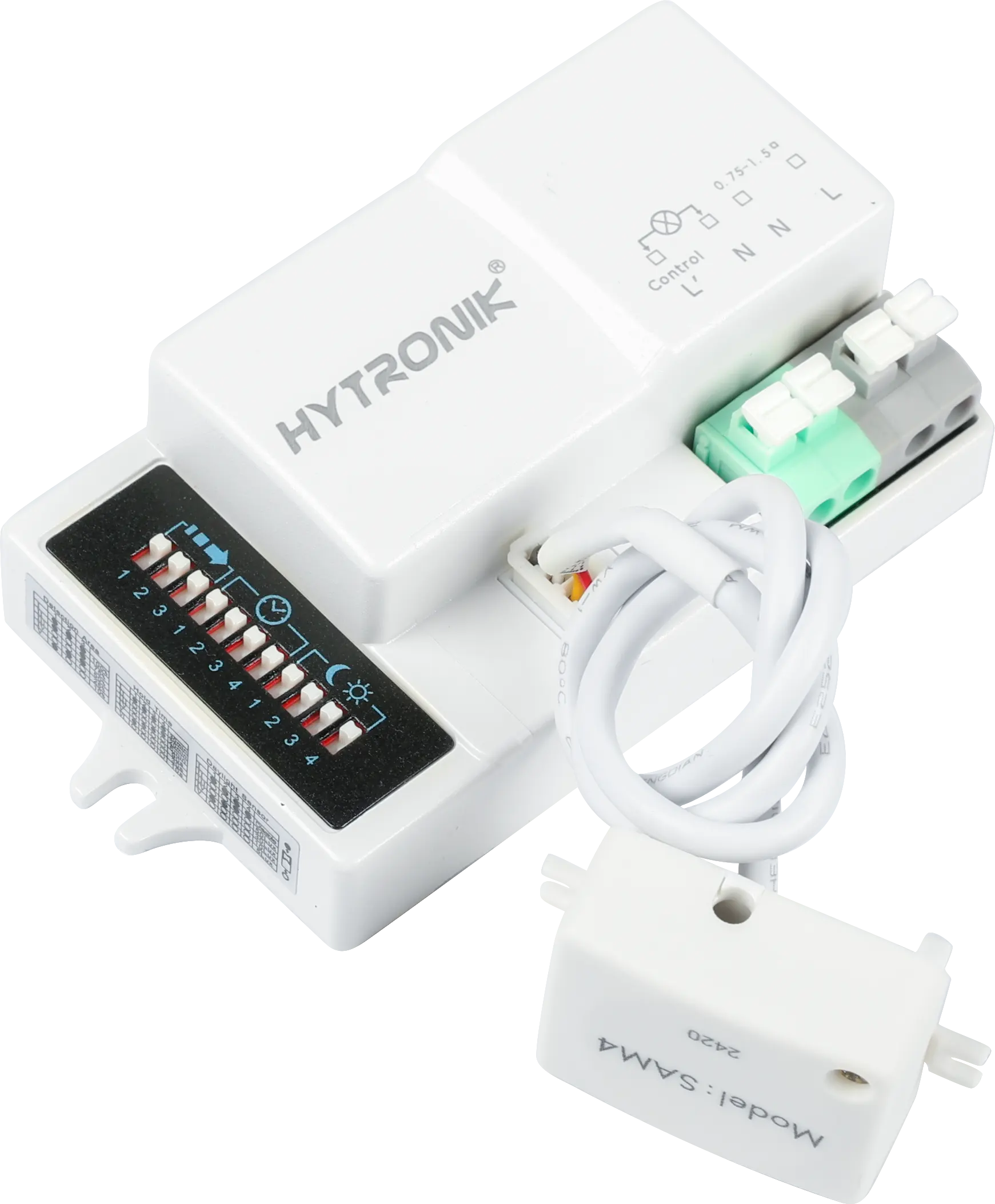

Compatible products (for full functionality)
