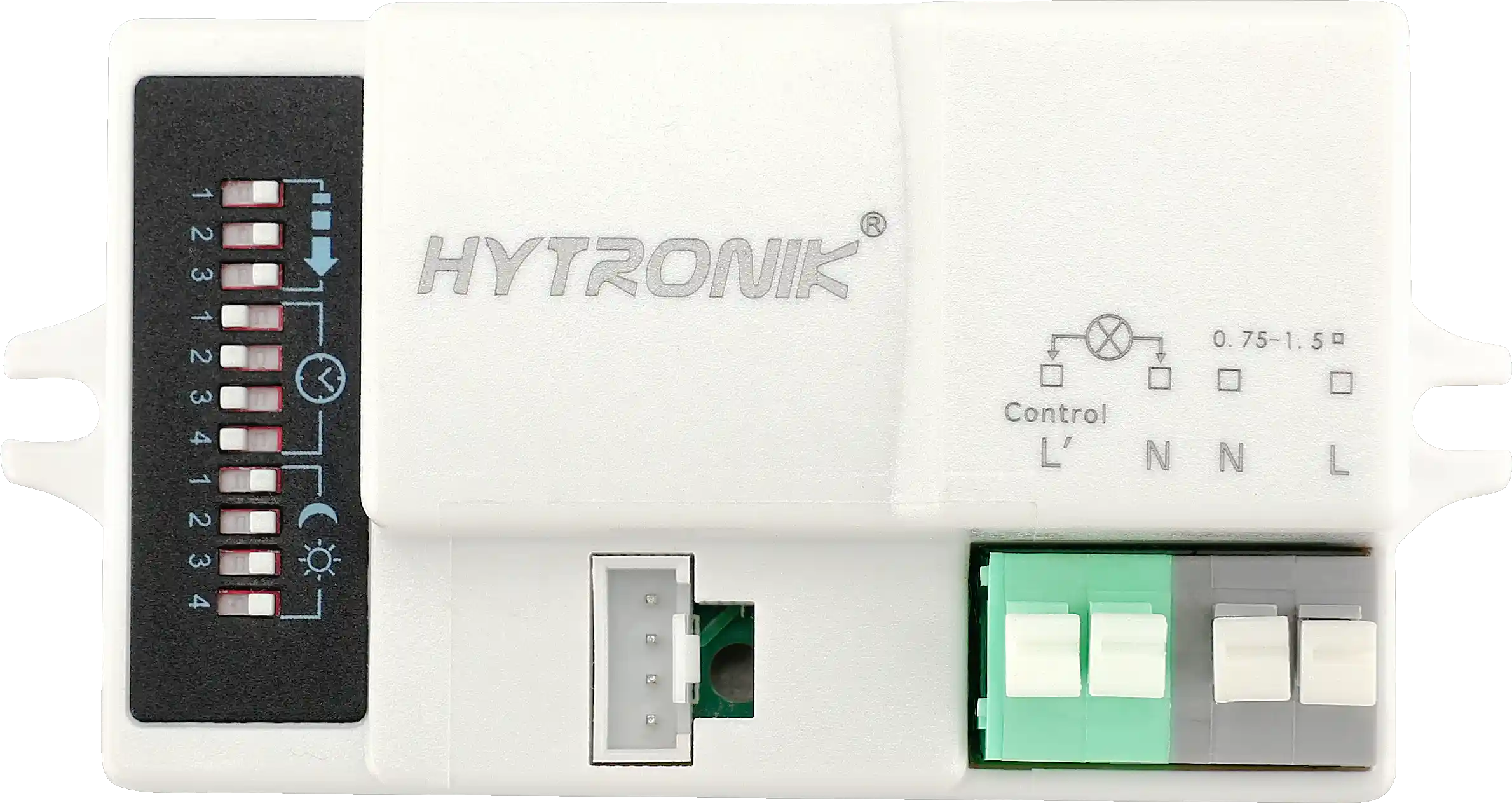

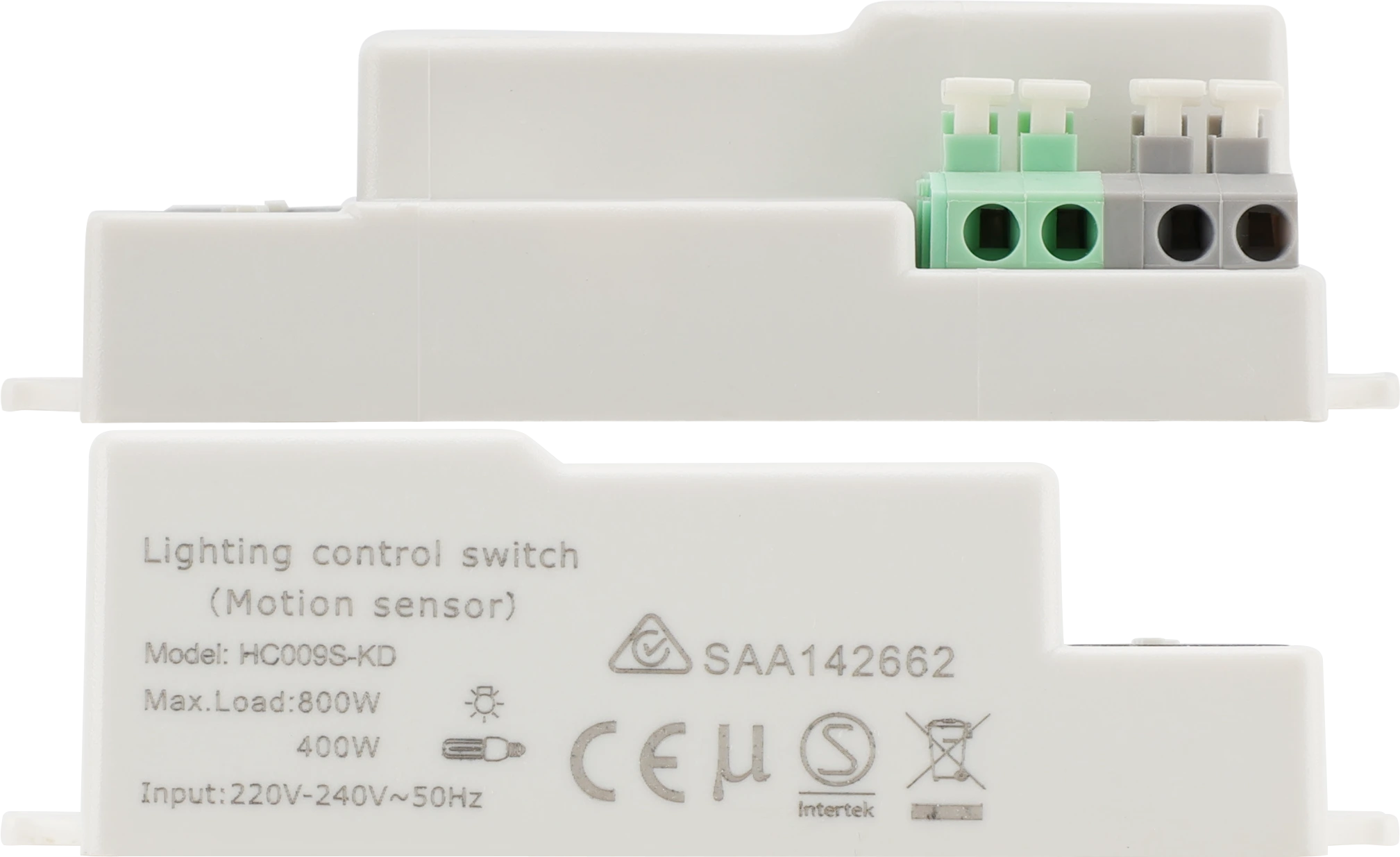

HC009S-KD+SAM4
HF Lowdbay | On/off Control | DIP Switch Settings
BENEFITS
- Plug&play: Detached Version with on/off control
- Autonomous: On/Off occupancy control for up to 800W
- Simple: Daylight, detection range and holdtime configuration via Dip-Switch
APPLICATIONS
- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom
Product information "HC009S-KD+SAM4"
HC009S-KD is an On/Off control base with a robust design, supporting up to 400VA capacitive or 800W resistive loads. It features microwave (HF) detection for motion sensing and includes a Photodiode (PD) for daylight sensing.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DIP-switch |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | No |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (DxH): | 12x6 |
| Dimming (Output) Interface: | Relay On/Off |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 27.5000 mm |
| Product length: | 95.0000 mm |
| Product width: | 48.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
