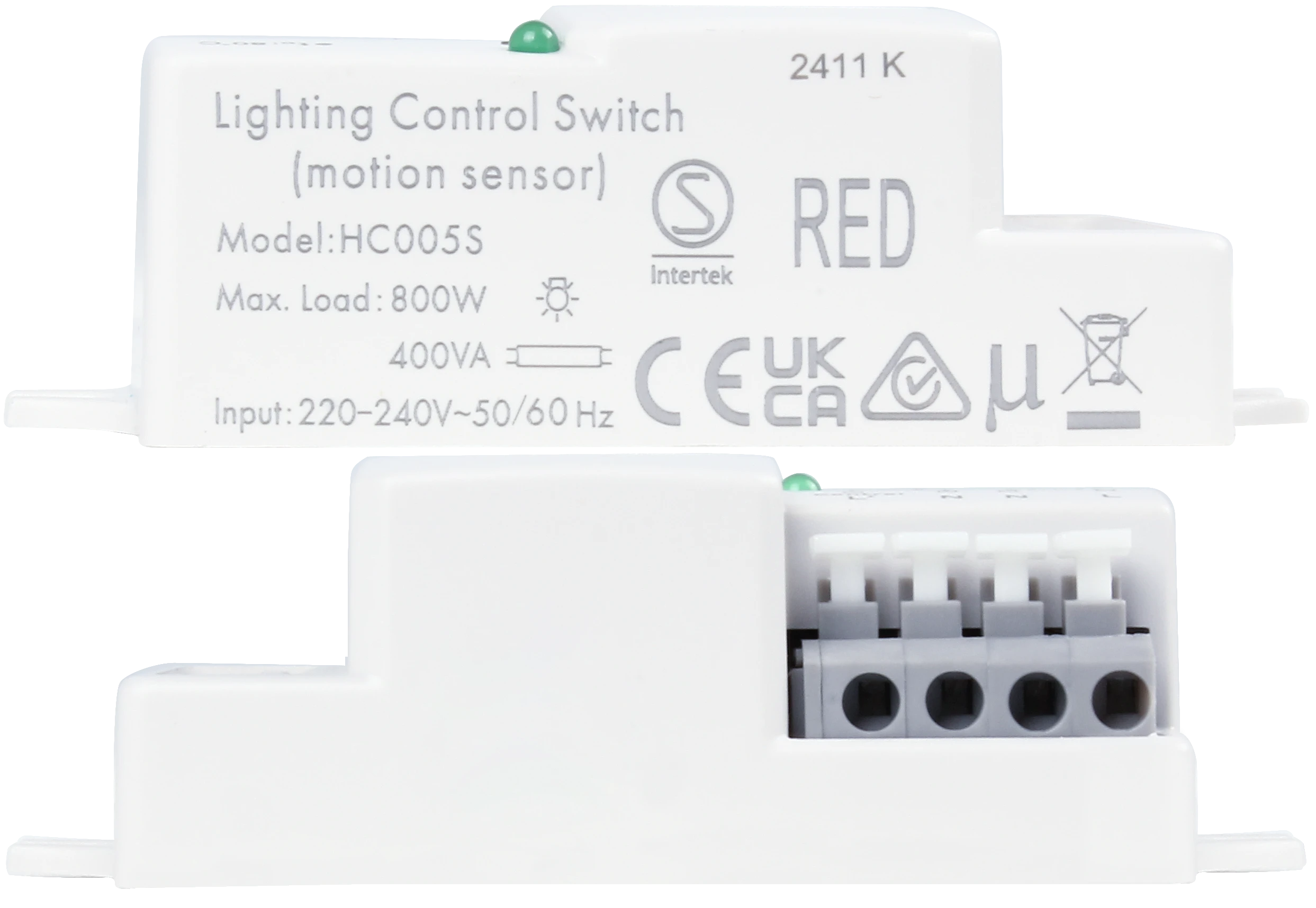

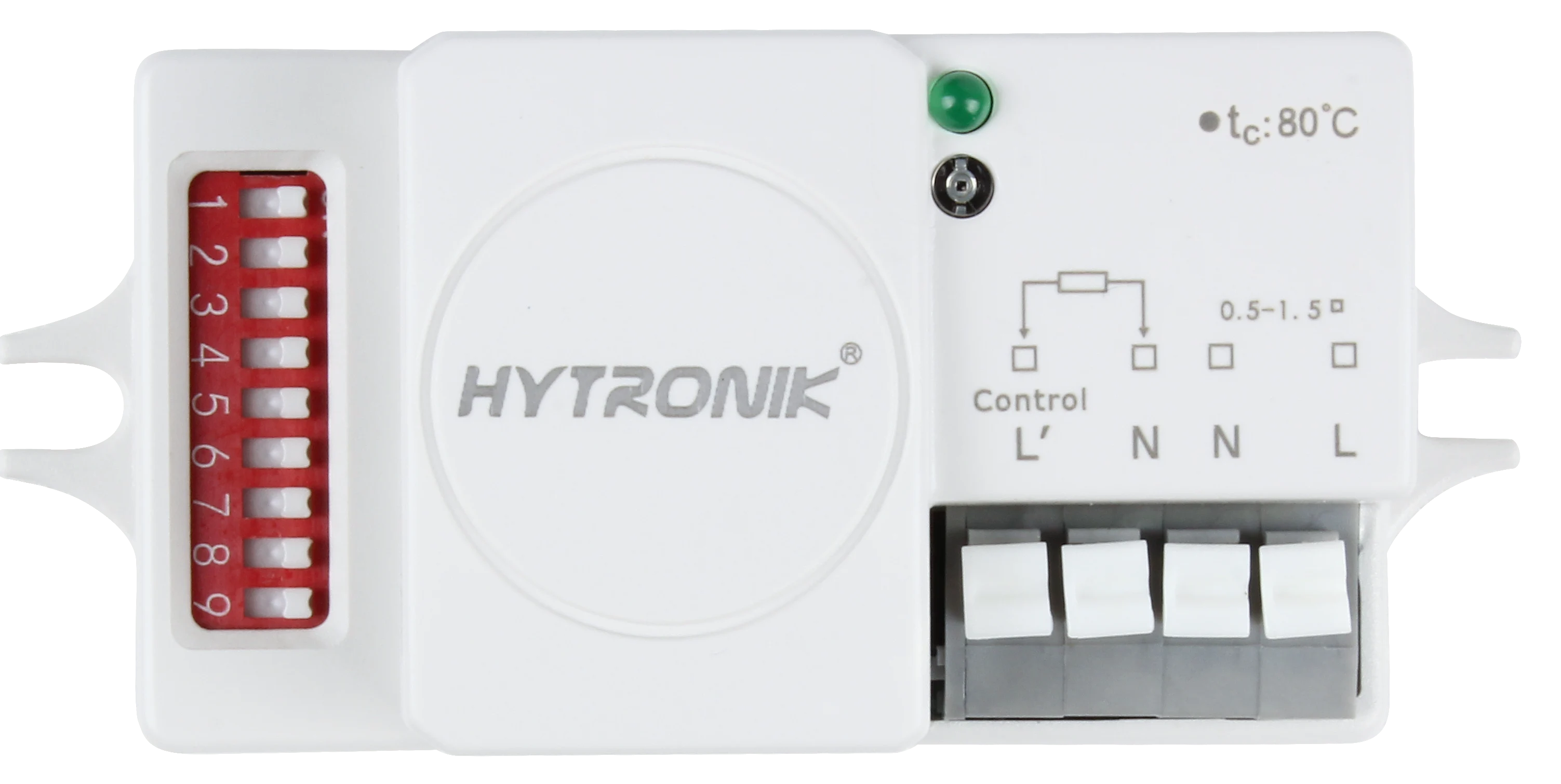

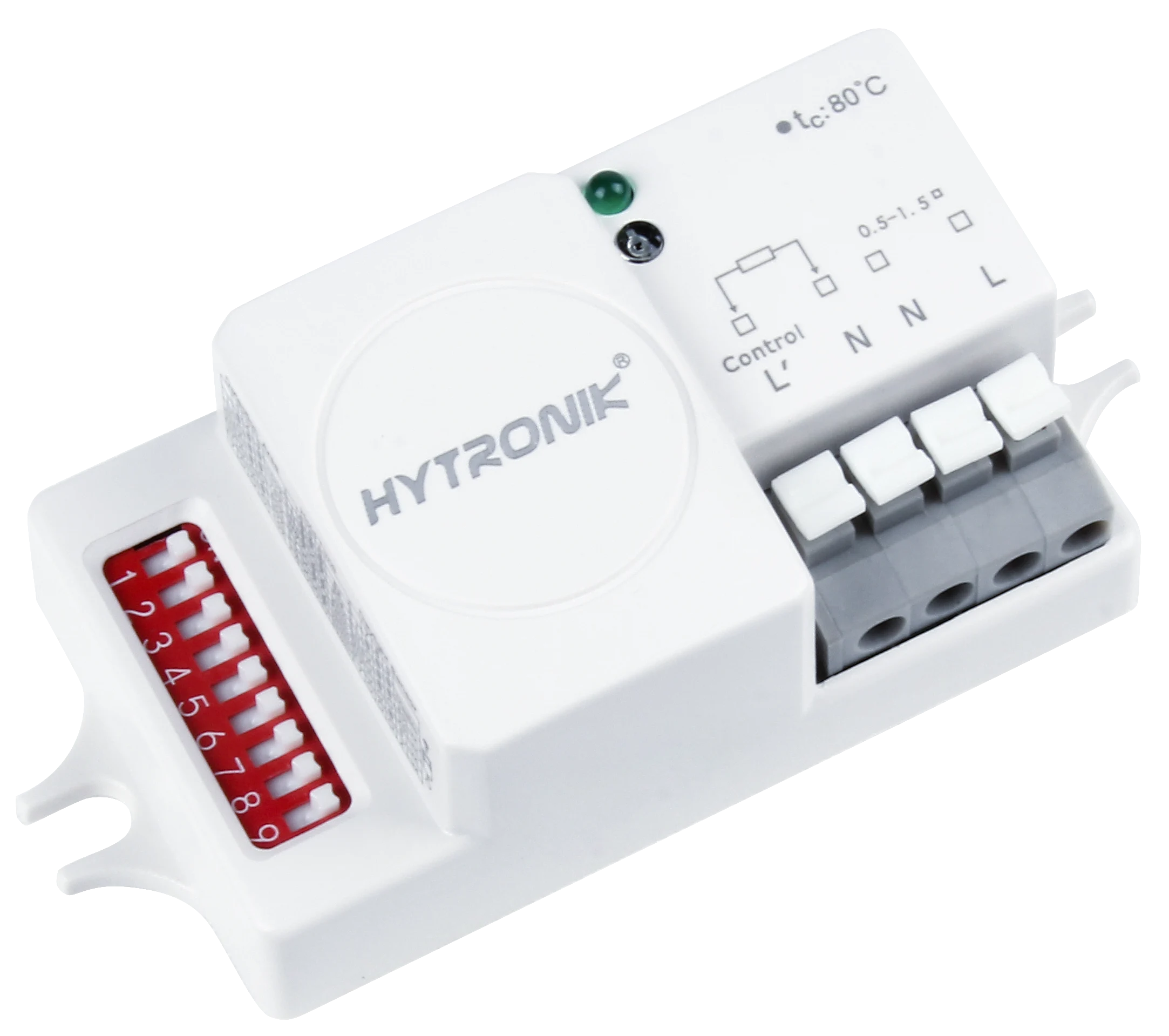

HC005S
HF Lowbay | ON/OFF via Dip-Switch | Photodiode
BENEFITS
- Compact: Super compact size - ON/OFF Sensor
- Simple: Daylight, detection range and holdtime configuration via Dip-Switch
- Robust: Zero crossing detection circuit for increased relay life
APPLICATIONS
- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom
Product information "HC005S"
HC005S is a super-compact built-in HF sensor with On/Off control, featuring a DIP switch for adjusting detection range, hold time, and daylight threshold. It is equipped with loop-in and loop-out terminals for efficient installation and can work with Switch-dim control gear to achieve tri-level dimming.
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | -35 °C |
| Commissioning Methods: | DIP-switch |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x6 |
| Dimming (Output) Interface: | Relay On/Off |
| Features: | Daylight Harvest |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Load capacitive: | 400.0000 VA |
| Load resistive: | 800.0000 W |
| Maximum Mounting Height: | 6.0000 m |
| Max withstandable in-rush current: | 80A@160μs |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 26.0000 mm |
| Product length: | 80.5000 mm |
| Product weight: | 40.0000 g |
| Product width: | 36.5000 mm |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 10 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc005s.pdf
Installation Manual
User manual: installation-manual-hc005s.pdf
