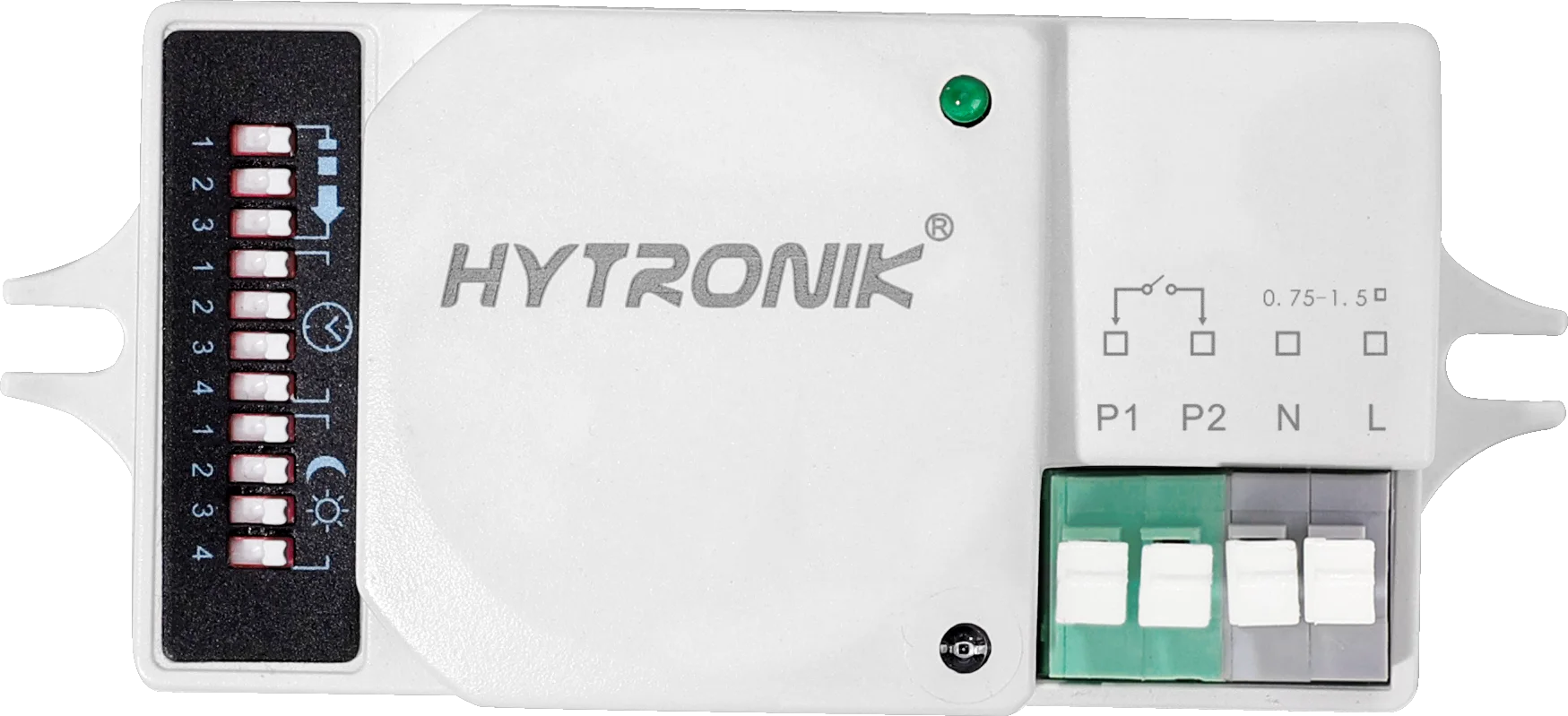

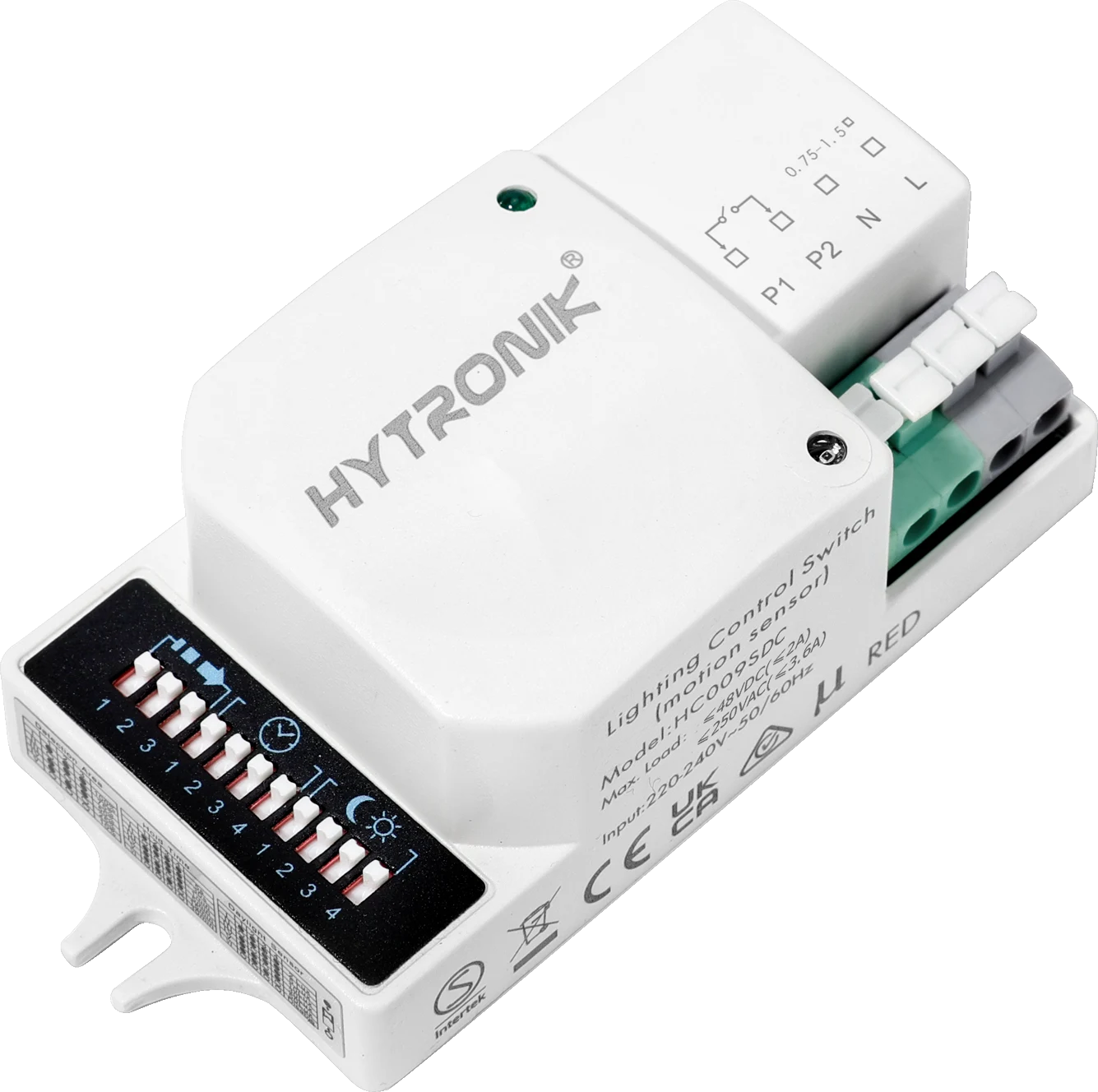

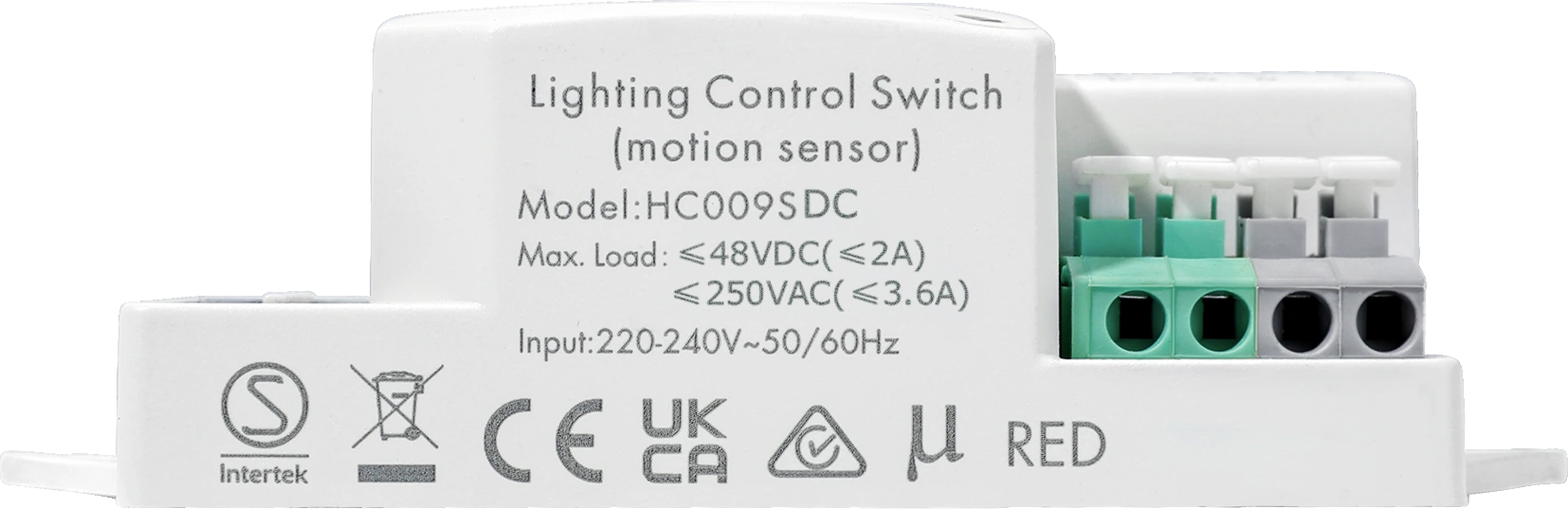

HC009SDC
Control body | ON/OFF | Dry Contact
BENEFITS
- Conventional: provide reliable switching capabilities without voltage output
- Simple: On/Off occupancy control
- Easy: configuration via Dip-Switch
APPLICATIONS
- Lighting fixture
- Office / Meeting rooms
- Schools / Classroom
Product information "HC009SDC"
HC009SDC is a built-in dry contact HF sensor for on/off control, ideal for interfacing with external monitoring systems. Known as "potential-free" or "volt-free," it operates as a conventional occupancy sensor without voltage output, ensuring compatibility across different control applications.
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | -35 °C |
| Commissioning Methods: | DIP-switch |
| Daylight Harvest: | No |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x6 |
| Dimming (Output) Interface: | Relay On/Off |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 30.0000 mm |
| Product length: | 98.0000 mm |
| Product weight: | 60.0000 g |
| Product width: | 43.0000 mm |
| Storage temperature max.: | 50 °C |
| Storage temperature min.: | -20 °C |
| Voltage Type: | AC |
| Zhaga: | No |
Datasheets
Product datasheet: hc009sdc.pdf
