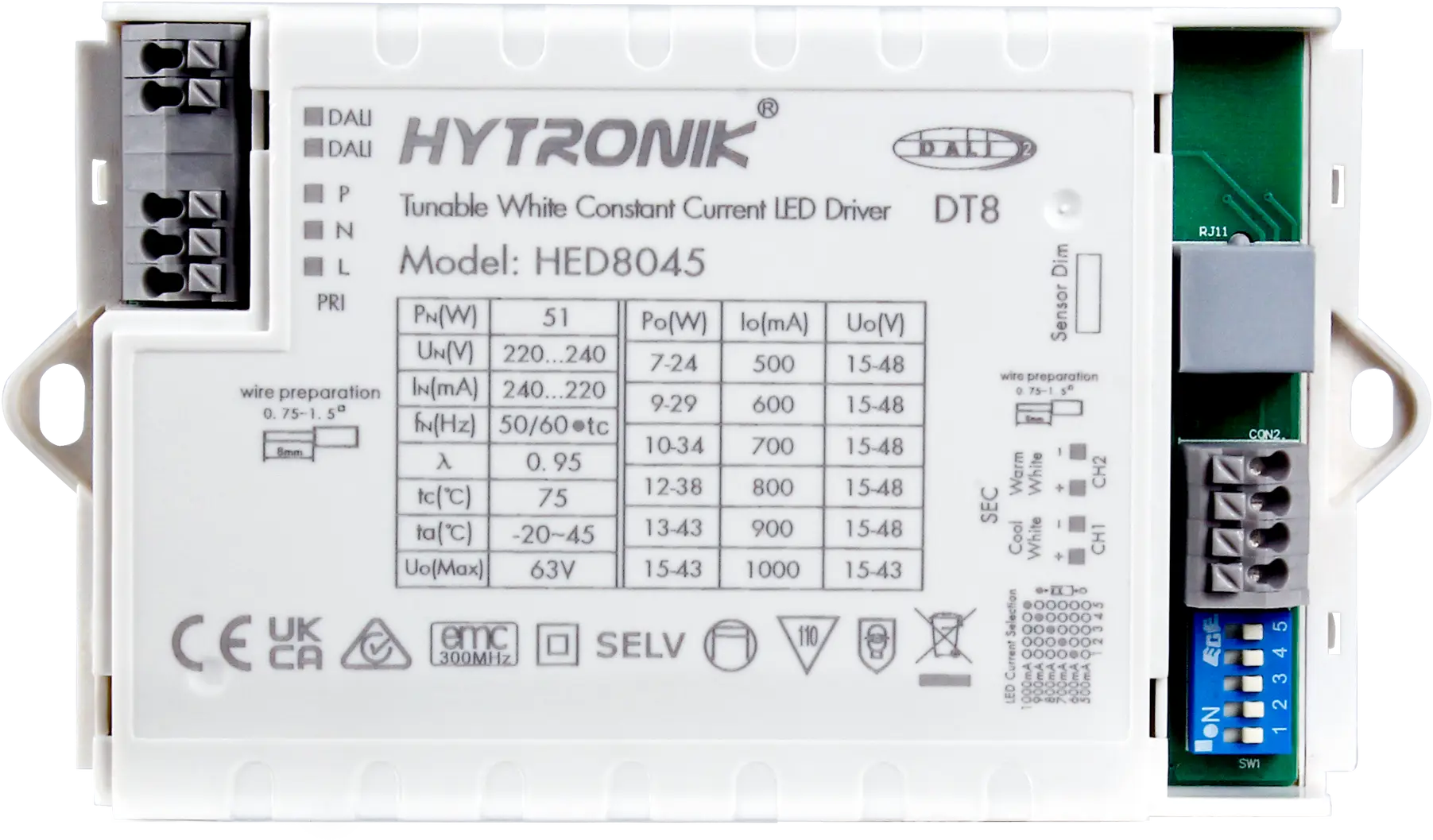

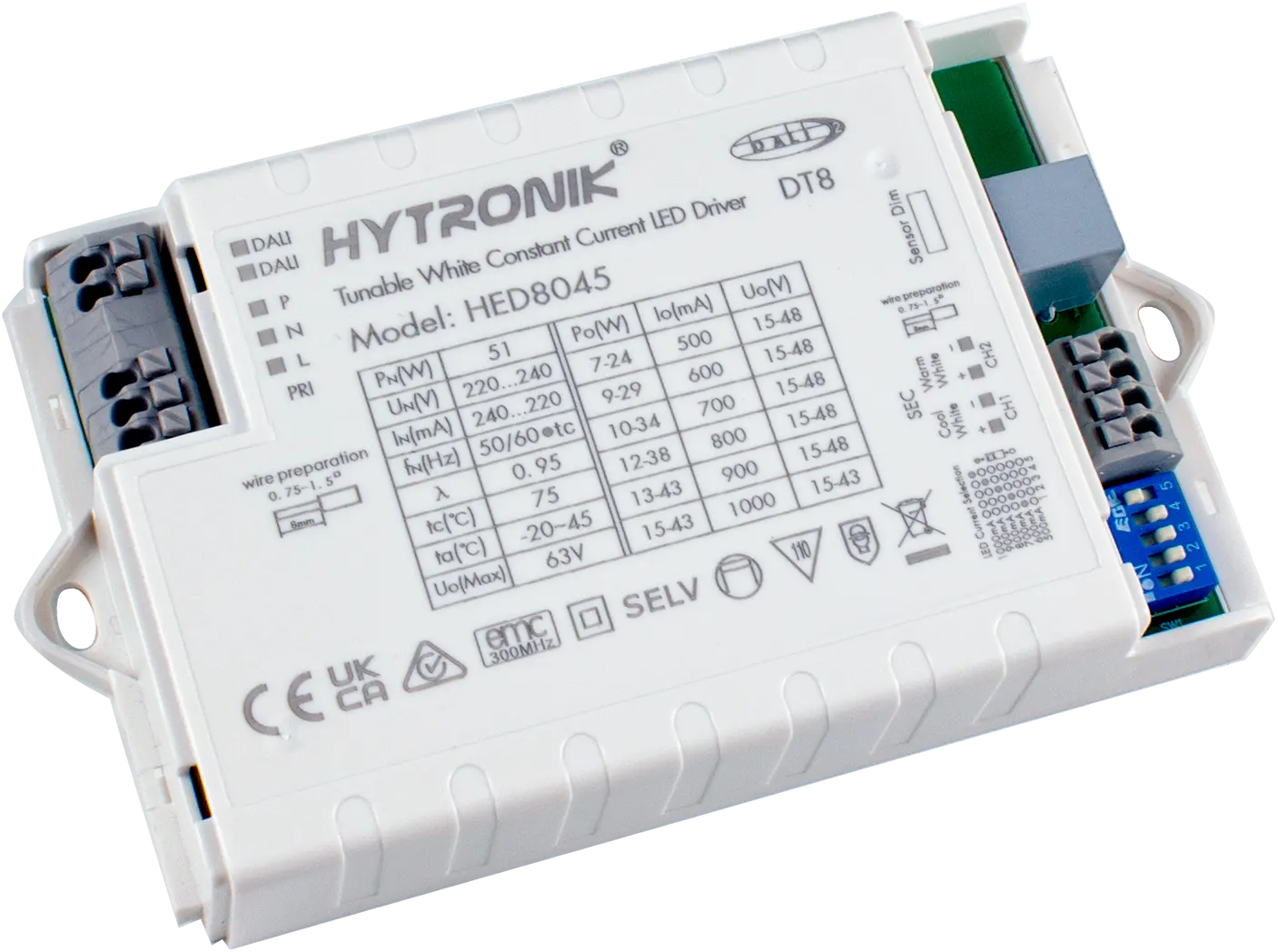

HED8045
DALI-2 LED Driver 45W Dimmable| Turnable white | Plugable Sensor heads
Vorteile
- Compact: DT8 Driver with plugable RJ12 Sensorhead
- Flexible: Configurable constant current (CC) output via DIP switches
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Luminaire Built-in integration
- Offices
- Classrooms
Produktinformationen "HED8045"

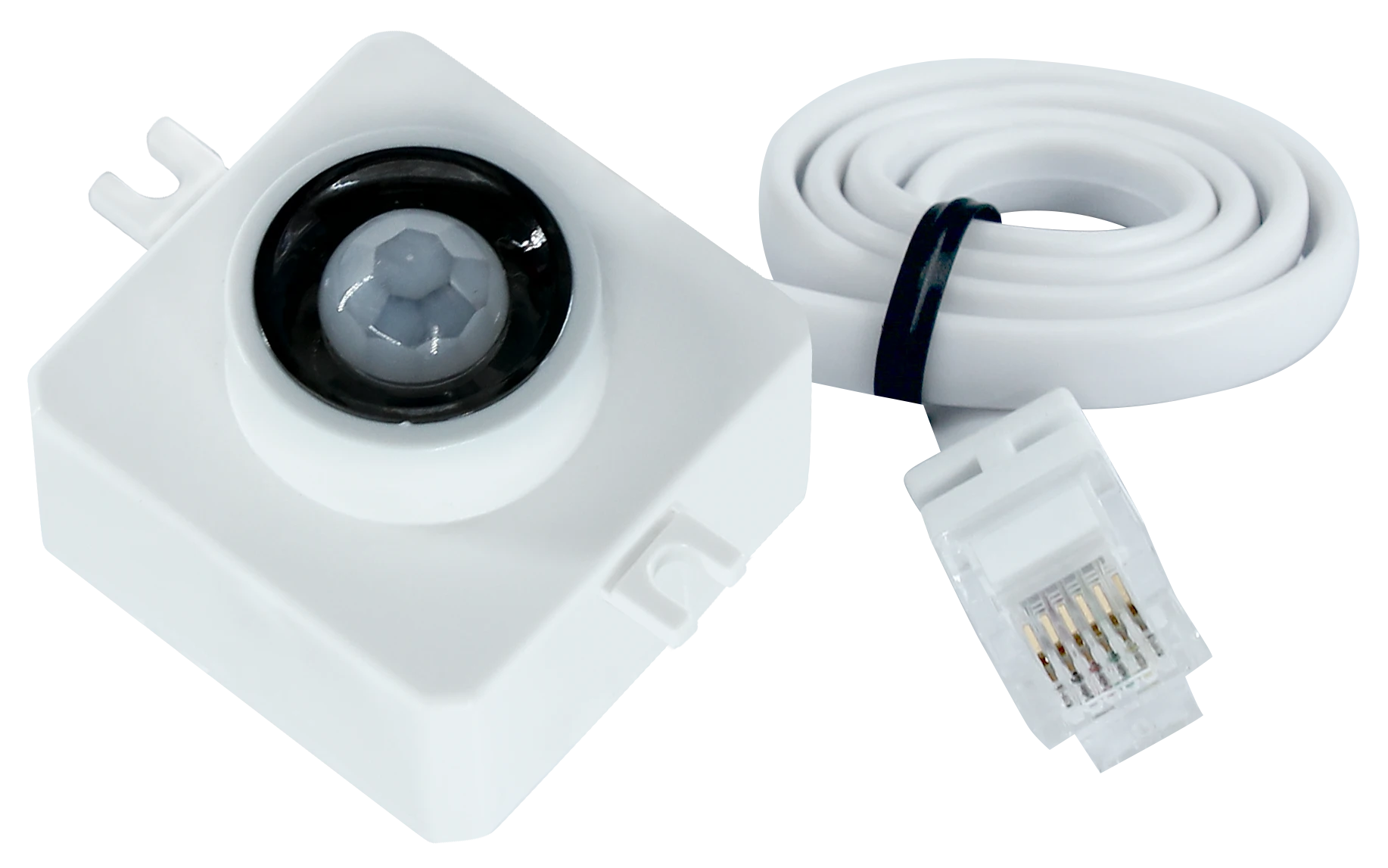

HED8045 is a detached LED Driver with DALI feedback. By simply connecting Bluetooth sensor head HBT01/HBT02/HIR13/HIR16/HIR62/HIR62/R to the driver, it allows for motion detection and Bluetooth mesh control. Once the sensor head is connected to the driver, DALI control are then disabled, and sensor antenna will take control. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring. Meanwhile, simple device setup and commissioning can be done via Koolmesh app.
| Ausgangsleistung: | 51W |
|---|---|
| Befestigungsloch: | 3.9000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| DALI Gerätetyp: | DT8 |
| Daylight Harvest: | Nein |
| Dimmschnittstelle: | DALI2 |
| Erfassungsbereich (DxH): | 8x3 |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |
| Installationstyp: | Built-in |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Maximale Montagehöhe: | 15.0000 m |
| Montagehöhe: | Mid-bay |
| Operating Mode: | Constant Current |
| Product height: | 23.0000 mm |
| Produktlänge: | 140.6000 mm |
| Produkttiefe: | 79.2000 mm |
| Schutzart: | IP20 |
| Taster Eingänge: | 1 |
| Treiber Typ: | Dimming & Color Tuning |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 45 °C |
| Umgebungstemperatur min.: | -20 °C |
| Wirkungsgrad: | 88 % |
