HBIR28/2CH/H
PIR High-bay | Bluetooth and ON/OFF | 2CH
Vorteile
- Adaptable: Lens and blind variants for different detection ranges
- Versatile: Motion and daylight control via Bluetooth
- 2 Channels: additional on/off Relay 400VA and voltage-free contact
ANWENDUNGEN
- Remote ceiling or surface mounting (with accessory)

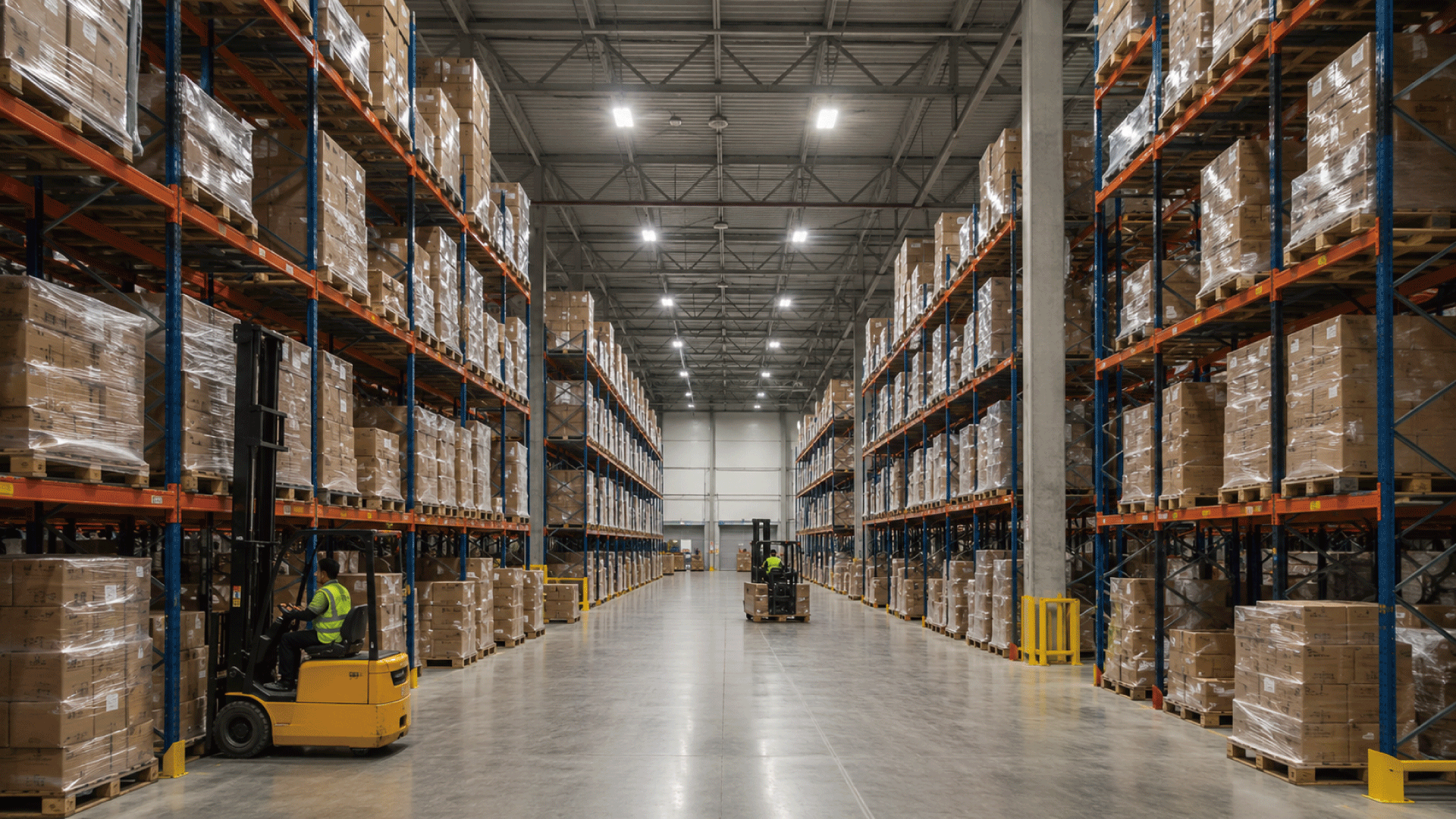

- Warehouse
- Logistic
Produktinformationen "HBIR28/2CH/H"
It is a Bluetooth PIR standalone motion sensor with On/Off control and two independent relay channel outputs. It features a dual-function relay (NO/NC) and a normally closed relay. Ideal for offices, classrooms, healthcare, and commercial areas, it enables easy luminaire communication via Bluetooth mesh networking.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | Relais On/Off |
| Befestigungsloch: | 78.0000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| Daylight Harvest: | Nein |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 24x15 |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Stand-alone |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Lens type: | Standard Low-bay |
| Maximale Montagehöhe: | 15.0000 m |
| Montagehöhe: | High-bay |
| Product height: | 80.5000 mm |
| Produkttiefe: | 78.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Taster Eingänge: | 4 |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
