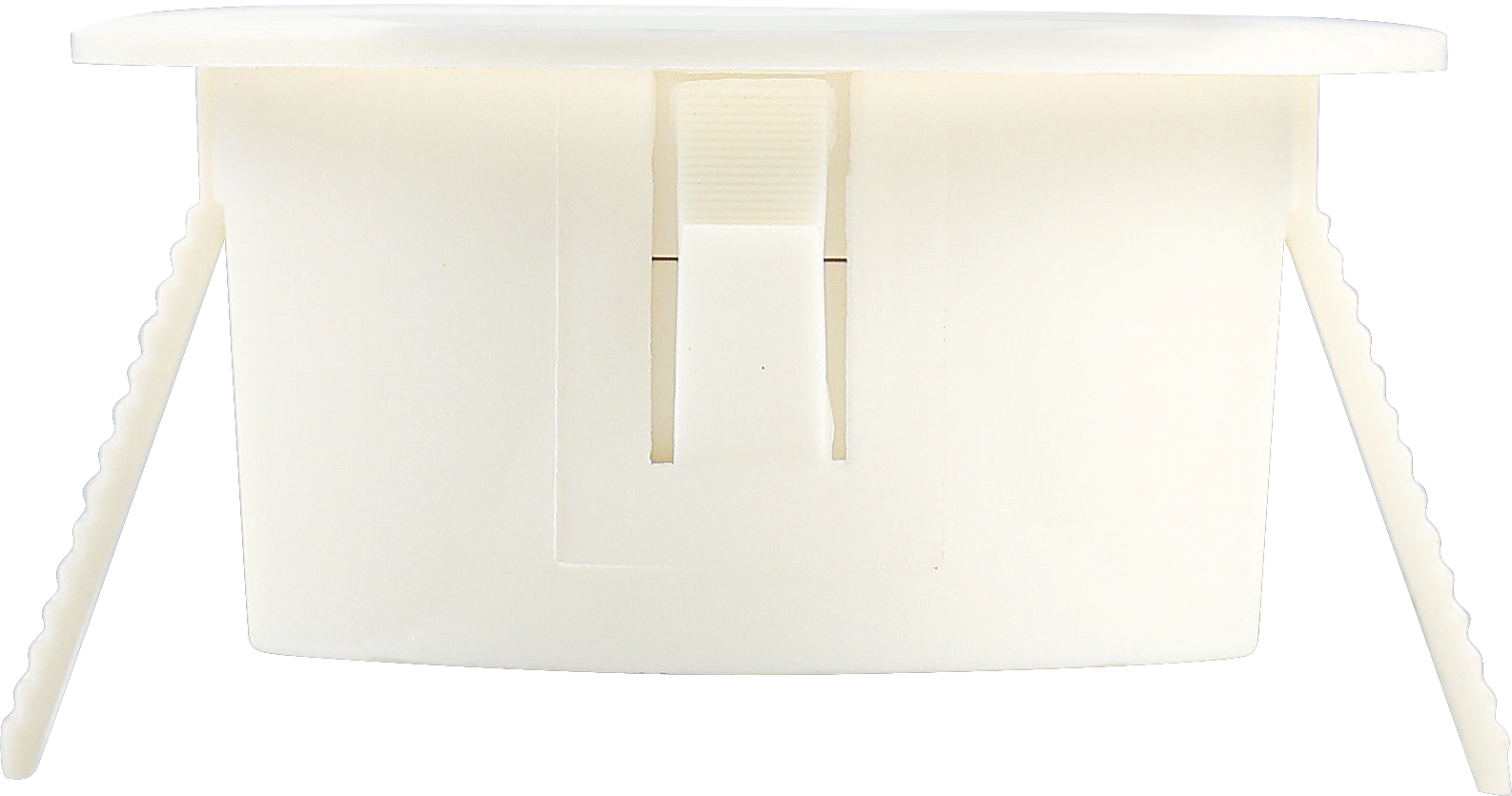

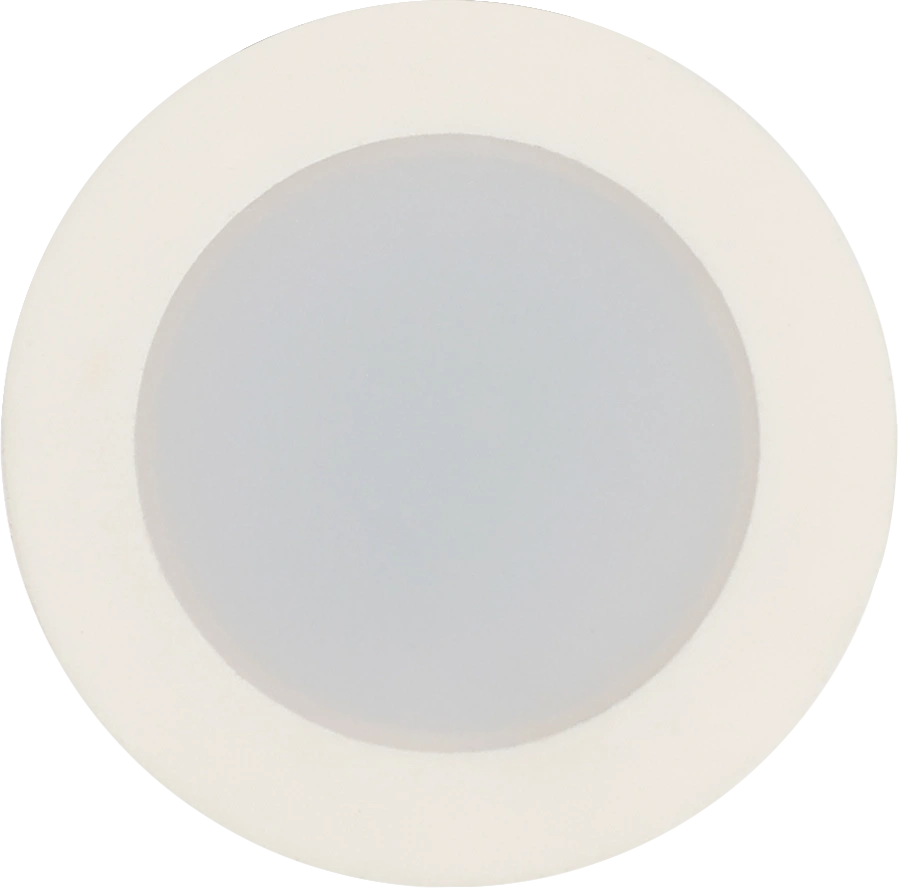

SAM22
HF Lowbay | Ciradian Rhyhm | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Flush mount installation
- Classrooms
- Offices
Produktinformationen "SAM22"
This sensor features microwave (HF) detection and is designed for flush mount installation. It supports tri-level dimming, daylight harvesting, and Human Centric Lighting/Circadian Rhythm with DT8 drivers for tunable white control. It includes a robust HF antenna design to minimize wireless interference, a photocell, and active lux switching capabilities. Suitable for installations up to 6m high with a detection range up to Ø = 12m.
| Anschlusstyp: | RJ12 |
|---|---|
| Ausgangsspannung: | 220-240VAC 50/60Hz |
| Betriebsspannung: | 5 VDC |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Detection angle: | 360° |
| Detektionsverfahren: | Microwave (MW) |
| Erfassungsbereich (DxH): | 12x3 |
| Features: | Daylight Harvest, Human Centric Lighting, Tri-level (Corridor Function), Tunable White Control |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Plug & Play Sensor Heads |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Maximale Montagehöhe: | 3.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 26.5000 mm |
| Produktlänge: | 48.0000 mm |
| Produkttiefe: | 48.0000 mm |
| Schutzart: | IP20 |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
