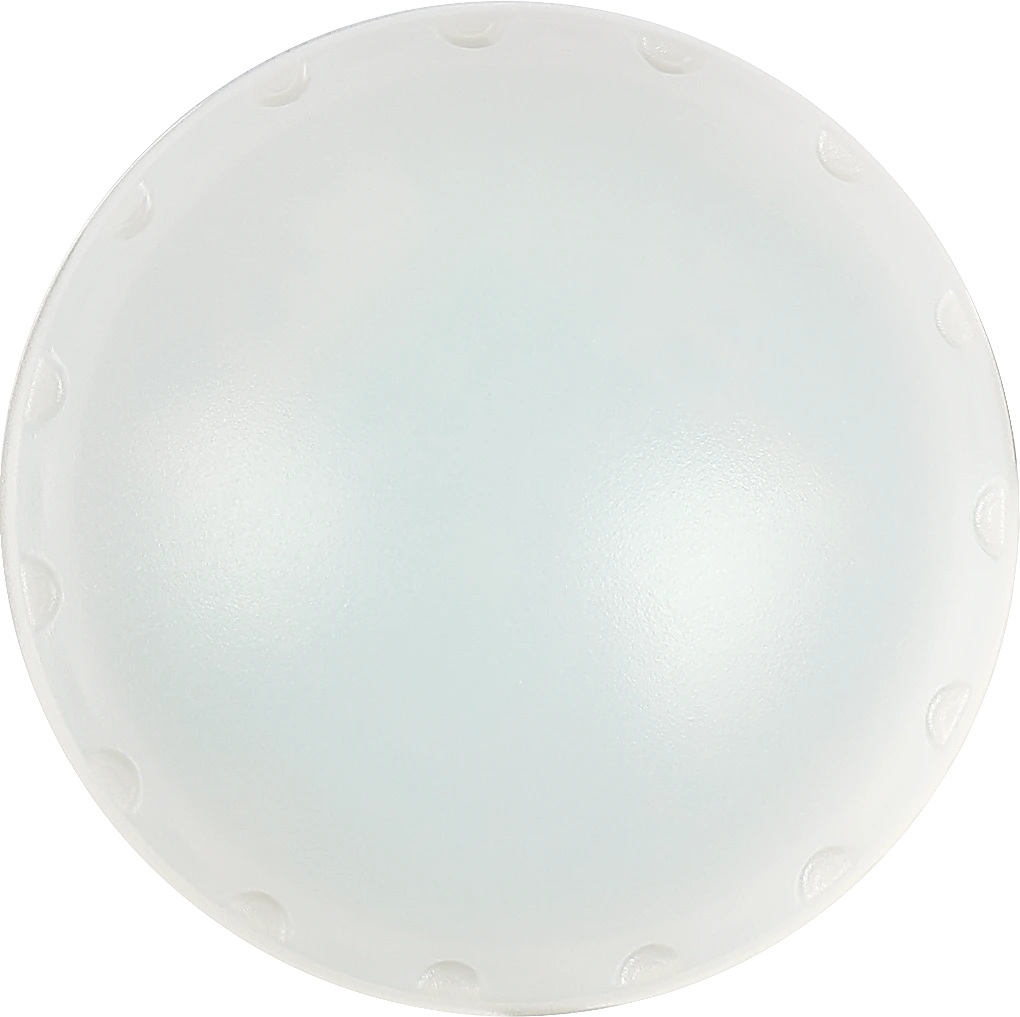

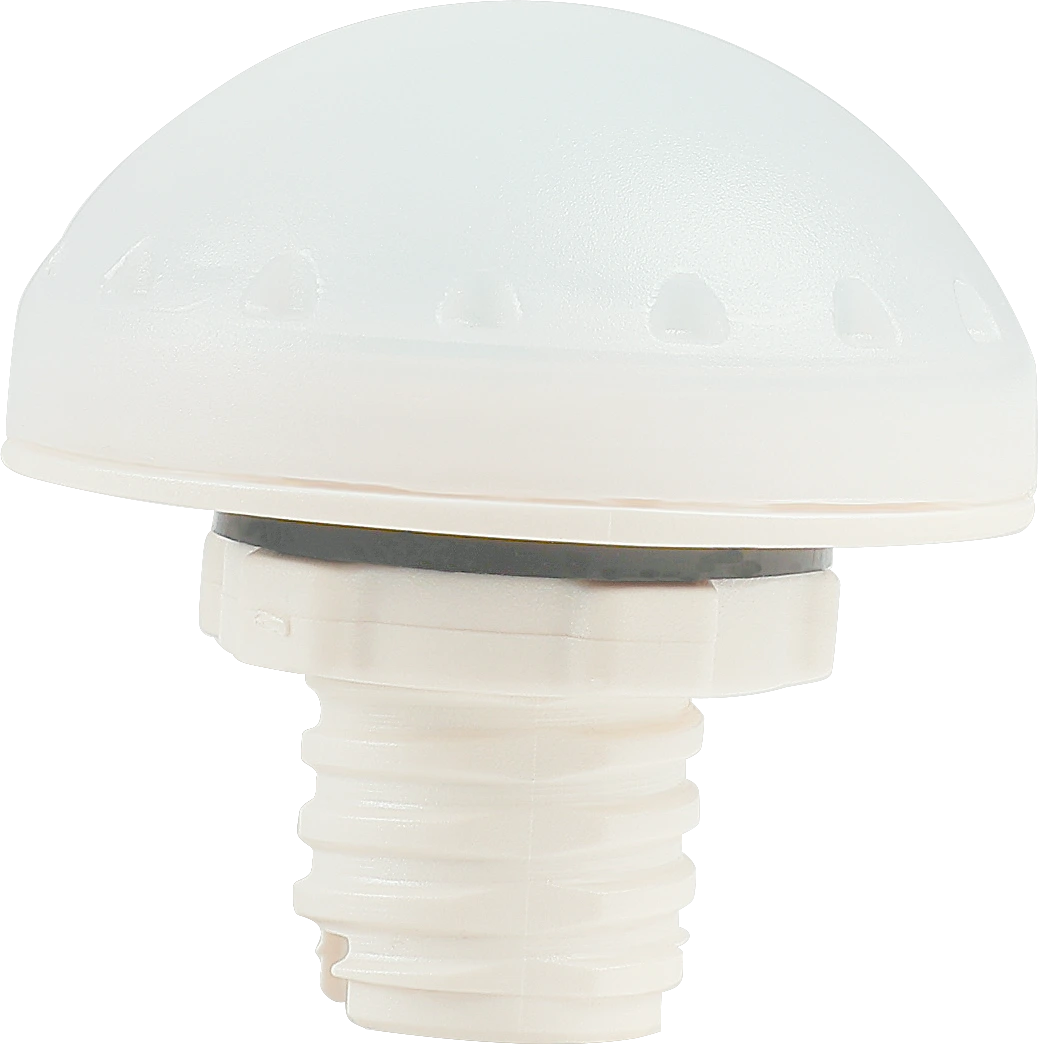

SAM21
HF Lowbay | Ciradian Rhyhm | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Conduit installation
- Classrooms
- Offices
Produktinformationen "SAM21"
This sensor features microwave (HF) detection and is designed for M16 * 3mm conduit installation. It includes tri-level dimming, daylight harvesting, and supports Human Centric Lighting/Circadian Rhythm with DT8 drivers for tunable white control. It has a robust HF antenna design to minimize wireless interference, a photodiode (PD), active lux switching, and is IP65 rated. Suitable for installations up to 6m high with a detection range up to Ø = 12m.
Anschlusstyp: | RJ12 |
---|---|
Betriebsspannung: | 5 VDC |
Daylight Harvest: | Ja |
Detection angle: | 360° |
Detektionsverfahren: | Microwave (MW) |
Erfassungsbereich (DxH): | 12x3 |
Features: | Daylight Harvest, Human Centric Lighting, Tri-level (Corridor Function), Tunable White Control |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
Human Centric Lightning (HCL): | Nein |
Inbetriebnahmemethoden: | App & Web (Bluetooth) |
Installationstyp: | Built-in, Plug & Play Sensor Heads |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Maximale Montagehöhe: | 3.0000 m |
Montagehöhe: | Low-bay |
Product height: | 40.3000 mm |
Produktlänge: | 41.0000 mm |
Produkttiefe: | 41.0000 mm |
Schutzart: | IP20 |
Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
Tri-level (Korridorfunktion): | Ja |
Umgebungstemperatur: | 55 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | DC |
Warming-up: | 20 s |
